| CPU2006 license: | 6 | Test date: | Sep-2008 |
|---|---|---|---|
| Test sponsor: | Sun Microsystems | Hardware Availability: | Oct-2008 |
| Tested by: | Fujitsu Limited | Software Availability: | Oct-2008 |
| Hardware | |
|---|---|
| CPU Name: | SPARC64 VII |
| CPU Characteristics: | |
| CPU MHz: | 2520 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 5 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (2 GB x 8), 2-way interleaved |
| Disk Subsystem: | 73 GB 10,000 RPM Fujitsu MAY2073RC SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Solaris 10 10/08 |
| Compiler: | Sun Studio 12 with patches 124861-08, 124863-06, 124867-07, 127143-03, 127000-05, 127001-01 (see patch information below) |
| Auto Parallel: | No |
| File System: | ufs |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | None |

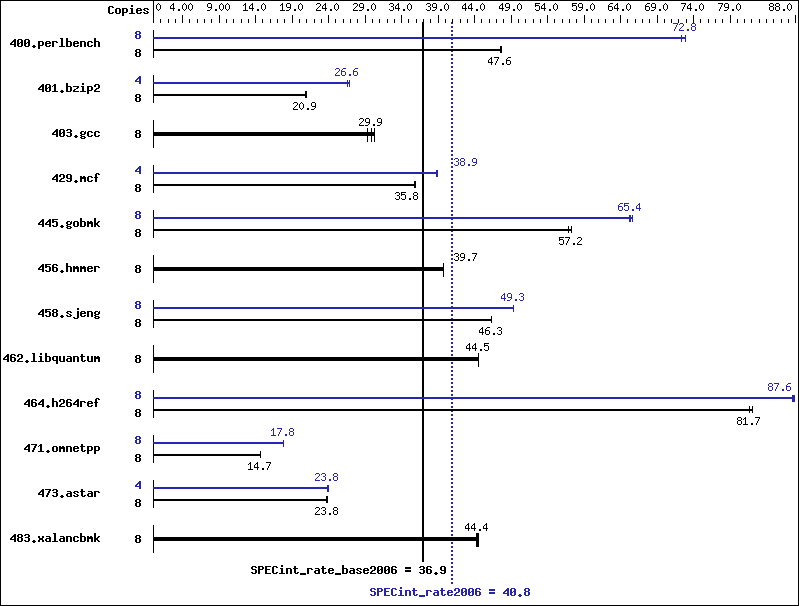

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 1639 | 47.7 | 1643 | 47.6 | 1644 | 47.5 | 8 | 1079 | 72.4 | 1073 | 72.8 | 1073 | 72.8 |
| 401.bzip2 | 8 | 3701 | 20.9 | 3685 | 20.9 | 3701 | 20.9 | 4 | 1441 | 26.8 | 1450 | 26.6 | 1454 | 26.5 |
| 403.gcc | 8 | 2155 | 29.9 | 2195 | 29.3 | 2129 | 30.2 | 8 | 2155 | 29.9 | 2195 | 29.3 | 2129 | 30.2 |
| 429.mcf | 8 | 2036 | 35.8 | 2036 | 35.8 | 2036 | 35.8 | 4 | 938 | 38.9 | 939 | 38.9 | 940 | 38.8 |
| 445.gobmk | 8 | 1467 | 57.2 | 1465 | 57.3 | 1475 | 56.9 | 8 | 1280 | 65.6 | 1286 | 65.2 | 1283 | 65.4 |
| 456.hmmer | 8 | 1877 | 39.8 | 1879 | 39.7 | 1878 | 39.7 | 8 | 1877 | 39.8 | 1879 | 39.7 | 1878 | 39.7 |
| 458.sjeng | 8 | 2092 | 46.3 | 2089 | 46.3 | 2090 | 46.3 | 8 | 1963 | 49.3 | 1963 | 49.3 | 1961 | 49.4 |
| 462.libquantum | 8 | 3721 | 44.5 | 3723 | 44.5 | 3720 | 44.6 | 8 | 3721 | 44.5 | 3723 | 44.5 | 3720 | 44.6 |
| 464.h264ref | 8 | 2168 | 81.7 | 2167 | 81.7 | 2156 | 82.1 | 8 | 2020 | 87.6 | 2015 | 87.9 | 2020 | 87.6 |
| 471.omnetpp | 8 | 3409 | 14.7 | 3400 | 14.7 | 3406 | 14.7 | 8 | 2815 | 17.8 | 2816 | 17.8 | 2813 | 17.8 |
| 473.astar | 8 | 2358 | 23.8 | 2359 | 23.8 | 2375 | 23.6 | 4 | 1181 | 23.8 | 1179 | 23.8 | 1172 | 24.0 |
| 483.xalancbmk | 8 | 1240 | 44.5 | 1247 | 44.3 | 1243 | 44.4 | 8 | 1240 | 44.5 | 1247 | 44.3 | 1243 | 44.4 |
Compiler Invocation Notes
Sun Studio compiler patches are available at
http://developers.sun.com/sunstudio/downloads/patches/ss12_patches.jsp
Submit Notes
The config file option 'submit' was used. Processes were assigned to specific processors using 'pbind' commands. The list of processors to use was provided in the 'BIND' variable, to generate the pbind commands. (For details, please see the config file.)
Operating System Notes
Shell Environments:
Default setting.
System Tunables:
(/etc/system parameters)
tune_t_fsflushr=10
Controls how many seconds elapse between runs of the
page flush daemon, fsflush.
autoup=600
Causes pages older than the listed number of seconds to
be written by fsflush.
bufhwm=3000
Memory byte limit for caching I/O buffers.
segmap_percent=1
Set maximum percent memory for file system cache.
Other System Settings:
The webconsole service was turned off using svcadm disable webconsole.
Platform Notes
Memory is 2-way interleaved by filling all slots with the same capacity DIMMs. This result is measured on a Fujitsu SPARC Enterprise M3000 Server. Note that the Fujitsu SPARC Enterprise M3000 and Sun SPARC Enterprise M3000 are electrically equivalent.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_SOLARIS_SPARC |
| 403.gcc: | -DSPEC_CPU_SOLARIS |
| 462.libquantum: | -DSPEC_CPU_SOLARIS |
| 483.xalancbmk: | -DSPEC_CPU_SOLARIS |
Base Optimization Flags
C benchmarks:
| -fast -fma=fused -xipo=2 -xpagesize=4M -xprefetch_level=1 -xalias_level=std -ll2amm |
C++ benchmarks:
| -library=stlport4 -fast -fma=fused -xipo=2 -xpagesize=4M -xprefetch_level=2 -xalias_level=compatible -lfast |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_SOLARIS_SPARC |
| 403.gcc: | -DSPEC_CPU_SOLARIS |
| 462.libquantum: | -DSPEC_CPU_SOLARIS |
| 483.xalancbmk: | -DSPEC_CPU_SOLARIS |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -fma=fused -xpagesize=4M -xipo=2 -xalias_level=std -Xc -xrestrict -lfast |
| 401.bzip2: | -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -fma=fused -xpagesize=4M -xalias_level=strong |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -fast -fma=fused -xpagesize=4M -xipo=2 -xalias_level=std -ll2amm |
| 445.gobmk: | -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -fma=fused -xpagesize=4M -xalias_level=std -xrestrict |
| 456.hmmer: | basepeak = yes |
| 458.sjeng: | -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -fma=fused -xpagesize=4M -xipo=2 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -fma=fused -xpagesize=4M -xipo=2 -xalias_level=std -m32 -xarch=sparcvis2 -xprefetch=no -ll2amm |
C++ benchmarks:
| 471.omnetpp: | -library=stlport4 -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -fma=fused -xpagesize=4M -xalias_level=compatible -xipo=2 -xprefetch_level=2 -Qoption cg -Qlp-av=0 -lfast |
| 473.astar: | -library=stlport4 -fast -fma=fused -xpagesize=4M -xalias_level=compatible -xipo=2 -xprefetch_level=2 -lfast |
| 483.xalancbmk: | basepeak = yes |
