| CPU2006 license: | 55 | Test date: | Oct-2008 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Sep-2008 |
| Tested by: | Dell Inc. | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon L5240 |
| CPU Characteristics: | |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 6 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 x 2 GB DDR2-667 FB-DIMM) |
| Disk Subsystem: | 1 x 73 GB 15000 RPM SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16-60.0.21-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20080730 Package ID: l_cproc_b_11.0.042 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

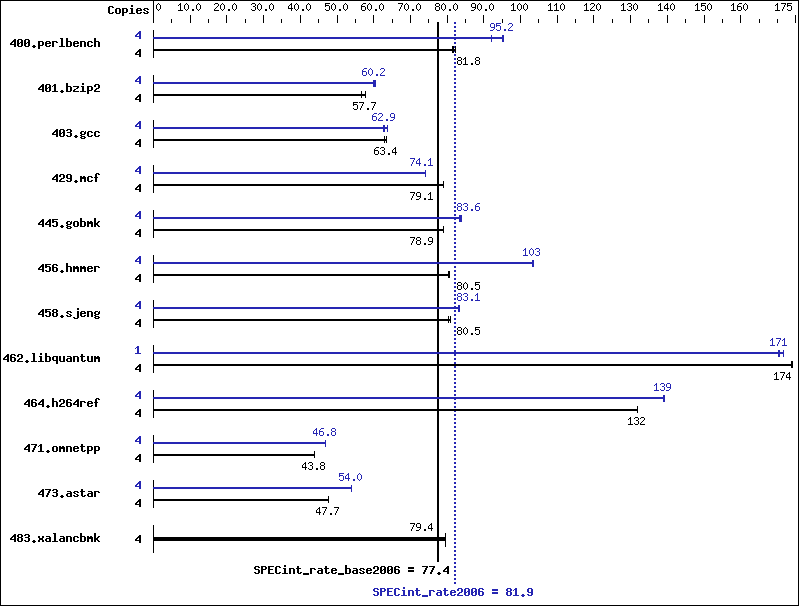

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 478 | 81.8 | 475 | 82.2 | 479 | 81.5 | 4 | 411 | 95.2 | 424 | 92.2 | 410 | 95.3 |
| 401.bzip2 | 4 | 668 | 57.8 | 668 | 57.7 | 680 | 56.8 | 4 | 641 | 60.2 | 644 | 59.9 | 637 | 60.6 |
| 403.gcc | 4 | 507 | 63.6 | 508 | 63.4 | 512 | 62.9 | 4 | 512 | 62.9 | 514 | 62.7 | 506 | 63.7 |
| 429.mcf | 4 | 461 | 79.1 | 462 | 79.0 | 461 | 79.1 | 4 | 493 | 74.1 | 493 | 74.0 | 493 | 74.1 |
| 445.gobmk | 4 | 530 | 79.1 | 532 | 78.9 | 531 | 78.9 | 4 | 501 | 83.8 | 503 | 83.4 | 502 | 83.6 |
| 456.hmmer | 4 | 464 | 80.5 | 464 | 80.5 | 463 | 80.6 | 4 | 361 | 103 | 361 | 103 | 361 | 103 |
| 458.sjeng | 4 | 601 | 80.5 | 598 | 80.9 | 602 | 80.4 | 4 | 582 | 83.1 | 581 | 83.2 | 582 | 83.1 |
| 462.libquantum | 4 | 477 | 174 | 477 | 174 | 476 | 174 | 1 | 122 | 170 | 121 | 171 | 121 | 172 |
| 464.h264ref | 4 | 671 | 132 | 671 | 132 | 671 | 132 | 4 | 636 | 139 | 637 | 139 | 636 | 139 |
| 471.omnetpp | 4 | 571 | 43.8 | 570 | 43.8 | 570 | 43.8 | 4 | 535 | 46.8 | 535 | 46.8 | 534 | 46.8 |
| 473.astar | 4 | 589 | 47.7 | 589 | 47.7 | 587 | 47.8 | 4 | 520 | 54.0 | 521 | 53.9 | 519 | 54.1 |
| 483.xalancbmk | 4 | 347 | 79.5 | 347 | 79.4 | 347 | 79.4 | 4 | 347 | 79.5 | 347 | 79.4 | 347 | 79.4 |
Submit Notes
The config file option 'submit' was used.
Operating System Notes
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run
Platform Notes
BIOS Settings: Adjacent Cache Line Prefetch = Disabled (Default = Enabled)
General Notes
taskset was used to bind processes to cores except for 462.libquantum peak OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to 64M
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 |
| 462.libquantum: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -parallel -par-runtime-control -opt-prefetch |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
