| CPU2006 license: | 11 | Test date: | Oct-2008 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Oct-2008 |
| Tested by: | IBM Corporation | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5450 |
| CPU Characteristics: | 1333MHz system bus |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (4 x 4 GB DDR2-5300F ECC) |
| Disk Subsystem: | 1 x 250 GB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20080730 Package ID: l_cproc_b_11.0.042 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

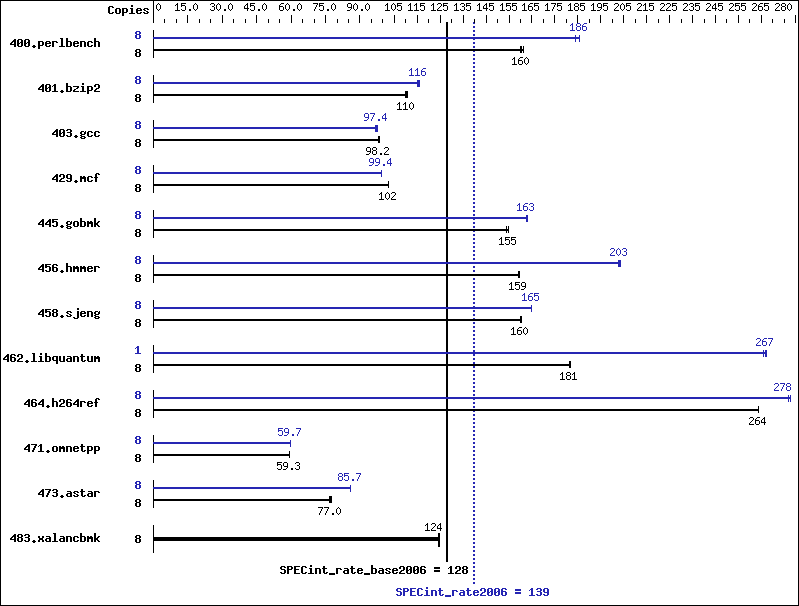

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 489 | 160 | 488 | 160 | 485 | 161 | 8 | 421 | 186 | 421 | 186 | 424 | 184 |
| 401.bzip2 | 8 | 702 | 110 | 697 | 111 | 701 | 110 | 8 | 670 | 115 | 668 | 116 | 666 | 116 |
| 403.gcc | 8 | 655 | 98.4 | 658 | 97.9 | 656 | 98.2 | 8 | 659 | 97.7 | 665 | 96.8 | 661 | 97.4 |
| 429.mcf | 8 | 713 | 102 | 713 | 102 | 712 | 102 | 8 | 733 | 99.5 | 735 | 99.3 | 734 | 99.4 |
| 445.gobmk | 8 | 543 | 155 | 542 | 155 | 545 | 154 | 8 | 516 | 163 | 516 | 163 | 514 | 163 |
| 456.hmmer | 8 | 468 | 159 | 469 | 159 | 468 | 159 | 8 | 366 | 204 | 367 | 203 | 368 | 203 |
| 458.sjeng | 8 | 605 | 160 | 605 | 160 | 603 | 160 | 8 | 588 | 165 | 587 | 165 | 587 | 165 |
| 462.libquantum | 8 | 914 | 181 | 914 | 181 | 913 | 182 | 1 | 77.6 | 267 | 77.5 | 267 | 78.0 | 266 |
| 464.h264ref | 8 | 671 | 264 | 671 | 264 | 672 | 264 | 8 | 638 | 278 | 637 | 278 | 640 | 277 |
| 471.omnetpp | 8 | 842 | 59.4 | 843 | 59.3 | 843 | 59.3 | 8 | 838 | 59.7 | 837 | 59.8 | 837 | 59.7 |
| 473.astar | 8 | 730 | 77.0 | 724 | 77.5 | 730 | 76.9 | 8 | 655 | 85.7 | 653 | 86.0 | 655 | 85.7 |
| 483.xalancbmk | 8 | 443 | 125 | 444 | 124 | 445 | 124 | 8 | 443 | 125 | 444 | 124 | 445 | 124 |
Submit Notes
The config file option 'submit' was used. taskset was used to bind processes to cores except for 462.libquantum peak
General Notes
OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to 64M Hardware Prefetch Enabled and Adjacent Sector Prefetch Disabled Memory configuration set to "Performance Optimized" 'ulimit -s unlimited' was used to set the stack size to unlimited prior to run
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 |
| 462.libquantum: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -parallel -par-runtime-control -opt-prefetch |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
