| CPU2006 license: | 9015 | Test date: | Oct-2008 |
|---|---|---|---|
| Test sponsor: | FORMAT | Hardware Availability: | Aug-2008 |
| Tested by: | FORMAT | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X3320 |
| CPU Characteristics: | 1333 MHz system bus |
| CPU MHz: | 2500 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 6 MB I+D on chip per chip, 3 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (4 x 2 GB ECC DDR2 SDRAM) |
| Disk Subsystem: | 1 x 160 GB SATA, 5400 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Scientific Linux 5.2 2.6.18-92.1.13.el5 |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20080730 Package ID: l_cproc_b_11.0.042 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

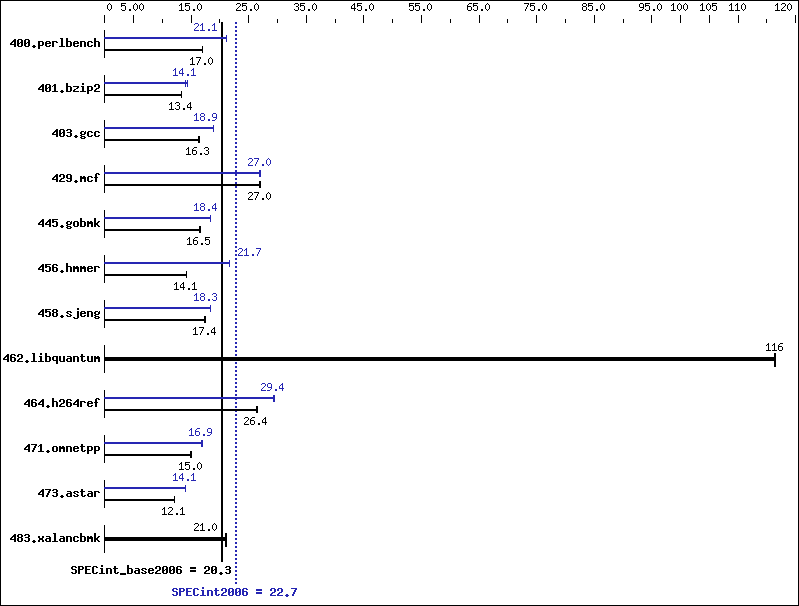

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 577 | 16.9 | 575 | 17.0 | 576 | 17.0 | 463 | 21.1 | 463 | 21.1 | 464 | 21.1 |
| 401.bzip2 | 721 | 13.4 | 721 | 13.4 | 720 | 13.4 | 684 | 14.1 | 687 | 14.0 | 673 | 14.3 |
| 403.gcc | 489 | 16.5 | 494 | 16.3 | 496 | 16.2 | 427 | 18.9 | 427 | 18.9 | 428 | 18.8 |
| 429.mcf | 339 | 26.9 | 337 | 27.1 | 337 | 27.0 | 338 | 27.0 | 339 | 26.9 | 338 | 27.0 |
| 445.gobmk | 635 | 16.5 | 635 | 16.5 | 634 | 16.5 | 569 | 18.4 | 569 | 18.4 | 569 | 18.4 |
| 456.hmmer | 660 | 14.1 | 660 | 14.1 | 660 | 14.1 | 432 | 21.6 | 430 | 21.7 | 430 | 21.7 |
| 458.sjeng | 696 | 17.4 | 694 | 17.4 | 693 | 17.5 | 658 | 18.4 | 660 | 18.3 | 660 | 18.3 |
| 462.libquantum | 178 | 116 | 178 | 116 | 178 | 116 | 178 | 116 | 178 | 116 | 178 | 116 |
| 464.h264ref | 837 | 26.4 | 838 | 26.4 | 836 | 26.5 | 754 | 29.4 | 752 | 29.4 | 757 | 29.2 |
| 471.omnetpp | 415 | 15.1 | 416 | 15.0 | 418 | 15.0 | 371 | 16.9 | 370 | 16.9 | 370 | 16.9 |
| 473.astar | 582 | 12.1 | 583 | 12.1 | 581 | 12.1 | 499 | 14.1 | 499 | 14.1 | 499 | 14.1 |
| 483.xalancbmk | 327 | 21.1 | 328 | 21.0 | 328 | 21.0 | 327 | 21.1 | 328 | 21.0 | 328 | 21.0 |
General Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0"
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -static -parallel -par-runtime-control -opt-prefetch |
C++ benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
