SPEC® CINT2006 Result

Fujitsu Siemens Computers

PRIMERGY TX300 S4, Intel Xeon E5405, 2.0 GHz

SPECint®_rate2006 = Not Run

SPECint_rate_base2006 = 94.9

CPU2006 license:	22	Test date:	Nov-2008
Test sponsor:	Fujitsu Siemens Computers	Hardware Availability:	Dec-2007
Tested by:	Fujitsu Siemens Computers	Software Availability:	Nov-2008

Hardware
CPU Name:	Intel Xeon E5405
CPU Characteristics:	1333 MHz system bus
CPU MHz:	2000
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache:	None
Other Cache:	None
Memory:	16 GB (8x2 GB PC2-5300F, 2 rank, CL5-5-5, ECC)
Disk Subsystem:	1x SAS, 73 GB, 15000 rpm
Other Hardware:	None

Software
Operating System:	Windows Server 2003 R2 Enterprise X64 SP2
Compiler:	Intel C++ Compiler Professional 11.0 for IA32 Build 20080930 Package ID: w_cproc_p_11.0.054 Microsoft Visual Studio 2008 (for libraries)
Auto Parallel:	No
File System:	NTFS
System State:	Default
Base Pointers:	32-bit
Peak Pointers:	Not Applicable
Other Software:	SmartHeap Library Version 8.1 from http://www.microquill.com/

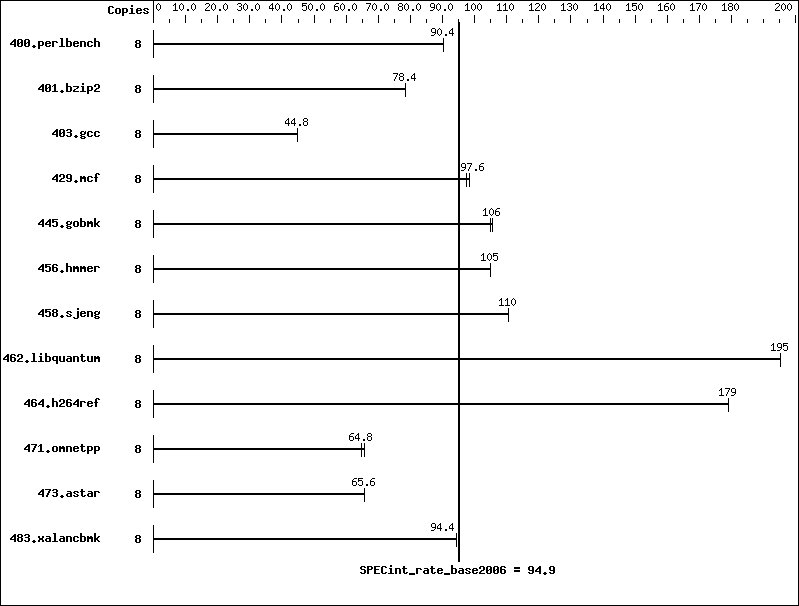

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	8	861	90.4	861	90.4	864	90.4
401.bzip2	8	983	78.4	983	78.4	985	78.4
403.gcc	8	1439	44.8	1439	44.8	1449	44.8
429.mcf	8	751	97.6	743	98.4	745	97.6
445.gobmk	8	796	106	797	106	801	105
456.hmmer	8	711	105	711	105	711	105
458.sjeng	8	880	110	880	110	880	110
462.libquantum	8	850	195	850	195	850	195
464.h264ref	8	987	179	987	179	987	179
471.omnetpp	8	766	65.6	768	64.8	767	64.8
473.astar	8	854	65.6	855	65.6	854	65.6
483.xalancbmk	8	586	94.4	586	94.4	586	94.4

Submit Notes

The config file option 'submit' was used.

Platform Notes

 BIOS settings:
 Hardware Prefetch = Disabled, Adjacent Sector Prefetch = Disabled

General Notes

 Binaries were built on Windows Vista Ultimate (32-bit)

 For information about Fujitsu Siemens Computers in your country please see:
 http://www.fujitsu-siemens.com/countries

Base Compiler Invocation

C benchmarks:

icl -Qvc9 -Qc99

C++ benchmarks:

icl -Qvc9

Base Portability Flags

403.gcc:	-DSPEC_CPU_WIN32
464.h264ref:	-DSPEC_CPU_NO_INTTYPES -DWIN32
483.xalancbmk:	-Qoption,cpp,--no_wchar_t_keyword

Base Optimization Flags

C benchmarks:

-QxSSE4.1 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000

C++ benchmarks:

-QxSSE4.1 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx-features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:

-Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-win32-revA.20090713.html,
http://www.spec.org/cpu2006/flags/Intel-Win32-Platform.html,
http://www.spec.org/cpu2006/flags/Intel-Win32-Platform.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-win32-revA.20090713.xml,
http://www.spec.org/cpu2006/flags/Intel-Win32-Platform.xml,
http://www.spec.org/cpu2006/flags/Intel-Win32-Platform.xml.
