SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

CELSIUS H270, Intel Core 2 Extreme QX9300
processor

CPU2006 license: 22 Test date: Nov-2008
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Dec-2008
Tested by: Fujitsu Siemens Computers Software Availability: Feb-2008

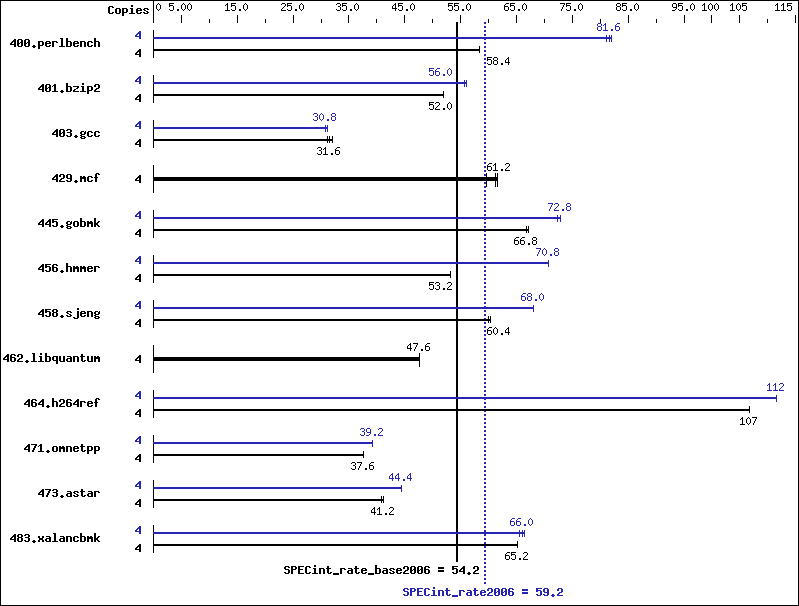

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Extreme QX9300
CPU Characteristics:
CPU MHz: 2530
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 8 GB (2x4 GB DDR3 1066 MHz SDRAM)
Disk Subsystem: 1 x 80 GB SATA 7200 RPM
Other Hardware: None
Software
Operating System: Windows Vista Ultimate, 64 bit Version
Compiler: Intel C++ Compiler
for applications running on IA-32,
Version 10.1, Build 20080212
Intel C++ Compiler
for applications running on Intel 64,
Version 10.1, Build 20080212
Microsoft Visual Studio 2005 with SP1
(for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap Library Version 9 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 670 58.4 668 58.4 669 58.4 4 478 82.0 479 81.6 481 81.2
401.bzip2 4 740 52.0 741 52.0 744 52.0 4 691 56.0 692 55.6 691 56.0
403.gcc 4 1010 32.0 1028 31.2 1022 31.6 4 1033 31.2 1040 30.8 1048 30.8
429.mcf 4 595 61.2 592 61.6 613 59.6 4 595 61.2 592 61.6 613 59.6
445.gobmk 4 625 67.2 628 66.8 627 66.8 4 577 72.8 578 72.4 577 72.8
456.hmmer 4 703 53.2 703 53.2 703 53.2 4 527 70.8 527 70.8 527 70.8
458.sjeng 4 804 60.0 804 60.4 804 60.4 4 711 68.0 711 68.0 711 68.0
462.libquantum 4 1748 47.6 1741 47.6 1747 47.6 4 1748 47.6 1741 47.6 1747 47.6
464.h264ref 4 830 107   829 107   829 107   4 794 112   794 112   794 112
471.omnetpp 4 666 37.6 665 37.6 665 37.6 4 635 39.2 636 39.2 635 39.2
473.astar 4 685 40.8 684 41.2 685 41.2 4 634 44.4 633 44.4 634 44.4
483.xalancbmk 4 423 65.2 424 65.2 423 65.2 4 416 66.4 420 65.6 418 66.0

Operating System Notes

 Screen Saver was disabled
 Power scheme was set to "Always On"
 "Turn off monitor" option within this scheme was set to "Never".

Platform Notes

BIOS default settings have been used.

General Notes

For information about Fujitsu Siemens Computers please see:
http://www.fujitsu-siemens.com

Base Compiler Invocation

C benchmarks:

 icl   -Qvc8   -Qc99

C++ benchmarks:

 icl   -Qvc8

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Base Optimization Flags

C benchmarks:

 -fast   -Qvec-guard-write   -F512000000

C++ benchmarks:

 -fast   -Qcxx_features   -F512000000   shlW32M.lib   -link -FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icl   -Qvc8   -Qc99
401.bzip2:  C:\DevelTools\Intel\Compiler\C++\10.1.021\EM64T\Bin\icl.exe   -IC:\DevelTools\Intel\Compiler\C++\10.1.021\EM64T\Include   -link -LIBPATH:C:\DevelTools\Intel\Compiler\C++\10.1.021\EM64T\Lib   -link -LIBPATH:C:\ProgramFiles\MicrosoftVisualStudio8\VC\lib\AMD64   -link -LIBPATH:C:\ProgramFiles\MicrosoftVisualStudio8\VC\PlatformSDK\lib\AMD64   -link -LIBPATH:C:\ProgramFiles\MicrosoftVisualStudio8\VC\lib
456.hmmer:  C:\DevelTools\Intel\Compiler\C++\10.1.021\EM64T\Bin\icl.exe   -IC:\DevelTools\Intel\Compiler\C++\10.1.021\EM64T\Include   -link -LIBPATH:C:\DevelTools\Intel\Compiler\C++\10.1.021\EM64T\Lib   -link -LIBPATH:C:\ProgramFiles\MicrosoftVisualStudio8\VC\lib\AMD64   -link -LIBPATH:C:\ProgramFiles\MicrosoftVisualStudio8\VC\PlatformSDK\lib\AMD64   -link -LIBPATH:C:\ProgramFiles\MicrosoftVisualStudio8\VC\lib

C++ benchmarks:

 icl   -Qvc8

Peak Portability Flags

401.bzip2:  -DSPEC_CPU_P64
403.gcc:  -DSPEC_CPU_WIN32
456.hmmer:  -DSPEC_CPU_P64
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Peak Optimization Flags

C benchmarks:

400.perlbench:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qprefetch   -F512000000   shlW32M.lib   -link -FORCE:MULTIPLE
401.bzip2:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qprefetch   -F512000000
403.gcc:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F512000000
429.mcf:  basepeak = yes
445.gobmk:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxT   -O2   -Qipo   -Qprec-div-   -Qansi-alias   -F512000000
456.hmmer:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Qansi-alias   -Qopt-multi-version-aggressive   -F512000000
458.sjeng:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll4   -F512000000
462.libquantum:  basepeak = yes
464.h264ref:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Qansi-alias   -F512000000

C++ benchmarks:

471.omnetpp:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qopt-ra-region-strategy=block   -Qcxx_features   -F512000000   shlW32M.lib   -link -FORCE:MULTIPLE
473.astar:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qopt-ra-region-strategy=routine   -Qcxx_features   -F512000000   shlW32M.lib   -link -FORCE:MULTIPLE
483.xalancbmk:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qcxx_features   -F512000000   shlW32M.lib   -link -FORCE:MULTIPLE

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090713.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090713.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Tue Jul 22 21:14:23 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 9 December 2008.
