SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

NTT System S. A.

NTT Tytan S8 Series

SPECfp®2006 = 19.2

SPECfp_base2006 = 18.5

CPU2006 license:	9013	Test date:	Dec-2008
Test sponsor:	NTT System S. A.	Hardware Availability:	Dec-2008
Tested by:	NTT System S. A.	Software Availability:	Dec-2008

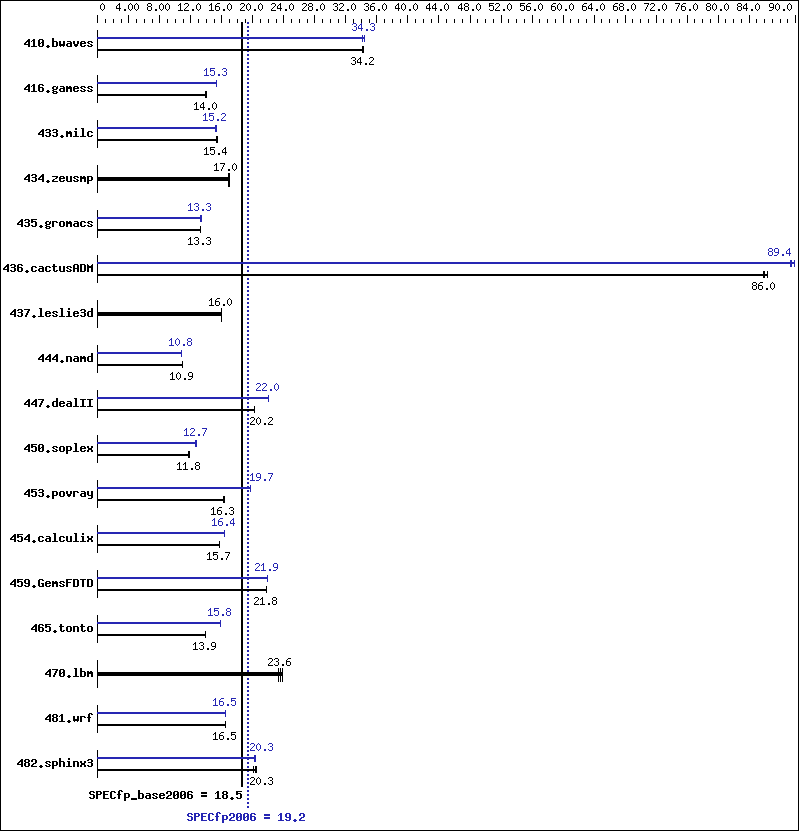

Benchmark results graph

Hardware
CPU Name:	Intel Xeon E5405
CPU Characteristics:	2 GHz, 2x6 MB L2 shared, 1333 MHz System Bus
CPU MHz:	2000
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache:	None
Other Cache:	None
Memory:	16 GB (4x4GB)
Disk Subsystem:	300 GB SATA, 7200RPM
Other Hardware:	None

Software
Operating System:	SuSe Linux SLES10 SP1, Kernel 2.6.16.60-0.21-smp
Compiler:	Intel C++ and Fortran Compiler 11.0 for Linux Build 20080930 Package ID: l_cproc_p_11.0.066, l_cprof_p_11.0.066
Auto Parallel:	Yes
File System:	ReiserFS
System State:	Run level 3 (multi-user)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	397	34.2	396	34.3	398	34.2	396	34.3	395	34.4	397	34.2
416.gamess	1403	14.0	1401	14.0	1403	14.0	1281	15.3	1284	15.3	1281	15.3
433.milc	598	15.4	598	15.4	596	15.4	603	15.2	602	15.2	602	15.3
434.zeusmp	538	16.9	537	17.0	536	17.0	538	16.9	537	17.0	536	17.0
435.gromacs	538	13.3	538	13.3	538	13.3	538	13.3	539	13.2	533	13.4
436.cactusADM	139	86.0	139	85.9	138	86.4	134	89.3	134	89.4	133	89.8
437.leslie3d	591	15.9	588	16.0	588	16.0	591	15.9	588	16.0	588	16.0
444.namd	735	10.9	736	10.9	735	10.9	739	10.8	739	10.9	739	10.8
447.dealII	566	20.2	567	20.2	566	20.2	520	22.0	520	22.0	521	22.0
450.soplex	708	11.8	706	11.8	709	11.8	657	12.7	658	12.7	659	12.7
453.povray	326	16.3	327	16.3	327	16.3	269	19.7	271	19.7	270	19.7
454.calculix	526	15.7	527	15.6	527	15.7	504	16.4	504	16.4	504	16.4
459.GemsFDTD	489	21.7	487	21.8	487	21.8	484	21.9	484	21.9	484	21.9
465.tonto	710	13.9	710	13.9	711	13.8	622	15.8	623	15.8	624	15.8
470.lbm	588	23.4	582	23.6	578	23.8	588	23.4	582	23.6	578	23.8
481.wrf	678	16.5	677	16.5	677	16.5	678	16.5	679	16.4	678	16.5
482.sphinx3	951	20.5	958	20.3	970	20.1	963	20.2	956	20.4	961	20.3

Base Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Peak Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:	-prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -fno-alias
470.lbm:	basepeak = yes
482.sphinx3:	-m32 -xSSSE3 -ipo -O3 -no-prec-div -static -unroll2

C++ benchmarks:

444.namd:	-prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -fno-alias -auto-ilp32
447.dealII:	-prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -scalar-rep- -opt-prefetch
450.soplex:	-m32 -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -opt-malloc-options=3
453.povray:	-prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -unroll4 -ansi-alias

Fortran benchmarks:

410.bwaves:	-xSSSE3 -ipo -O3 -no-prec-div -static -opt-prefetch -parallel
416.gamess:	-prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -unroll2 -Ob0 -ansi-alias -scalar-rep-
434.zeusmp:	basepeak = yes
437.leslie3d:	basepeak = yes
459.GemsFDTD:	-prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -unroll2 -Ob0 -opt-prefetch -parallel
465.tonto:	-prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -unroll4 -auto

Benchmarks using both Fortran and C:

435.gromacs:	-prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32
436.cactusADM:	-prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -unroll2 -opt-prefetch -parallel -auto-ilp32
454.calculix:	-xSSSE3 -ipo -O3 -no-prec-div -static -auto-ilp32
481.wrf:	-xSSSE3 -ipo -O3 -no-prec-div -static -opt-prefetch -parallel -auto-ilp32

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-Linux64-Platform.20090710.html,
http://www.spec.org/cpu2006/flags/Intel-ic11.0-fp-linux64-revA.20090710.03.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-Linux64-Platform.20090710.xml,
http://www.spec.org/cpu2006/flags/Intel-ic11.0-fp-linux64-revA.20090710.03.xml.
