SPEC® CFP2006 Result

Tyan (Test Sponsor: Advanced Micro Devices)

Transport TX46, AMD Opteron 8386 SE

SPECfp®_rate2006 = 215

SPECfp_rate_base2006 = 193

CPU2006 license:	49	Test date:	Dec-2008
Test sponsor:	Advanced Micro Devices	Hardware Availability:	Jan-2009
Tested by:	Advanced Micro Devices	Software Availability:	Jun-2008

Hardware
CPU Name:	AMD Opteron 8386 SE
CPU Characteristics:
CPU MHz:	2800
FPU:	Integrated
CPU(s) enabled:	16 cores, 4 chips, 4 cores/chip
CPU(s) orderable:	2,4 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	6 MB I+D on chip per chip
Other Cache:	None
Memory:	64 GB (16x4 GB, DDR2-800, CL5, Reg, Dual Rank)
Disk Subsystem:	1 x 250 GB SATA, 7200 RPM
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux Server release 5.2, Advanced Platform, Kernel 2.6.18-92.el5
Compiler:	PGI Server Complete Version 7.2 PathScale Compiler Suite Version 3.2
Auto Parallel:	Yes
File System:	ext3
System State:	Run level 3 (Full multiuser with network)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	binutils 2.18 32-bit and 64-bit libhugetlbfs libraries

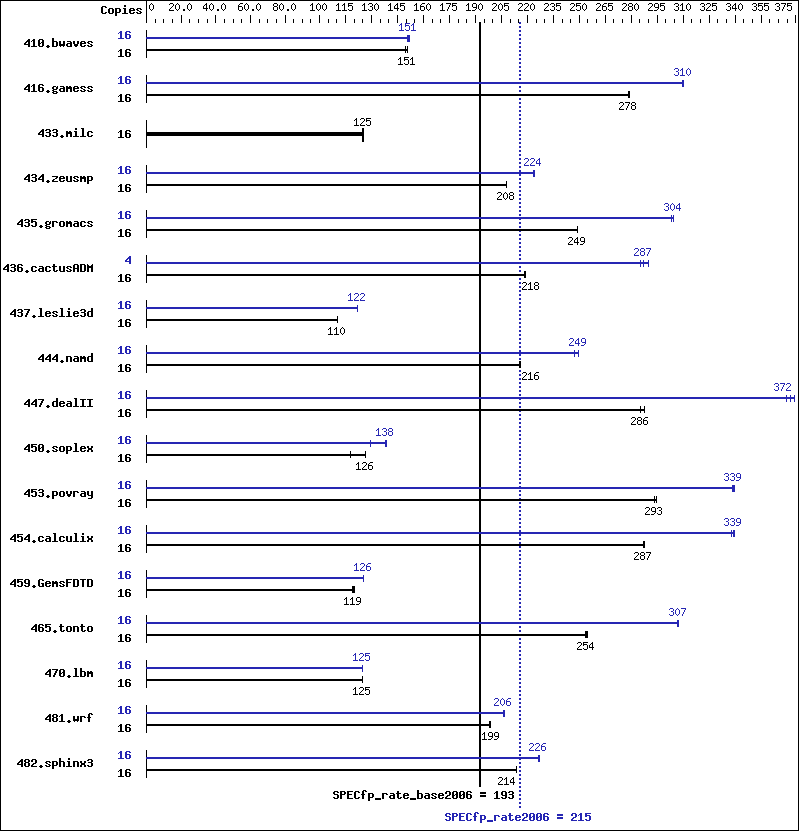

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	16	1440	151	1452	150	1440	151	16	1437	151	1433	152	1442	151
416.gamess	16	1126	278	1124	279	1125	278	16	1011	310	1010	310	1011	310
433.milc	16	1170	126	1174	125	1178	125	16	1170	126	1174	125	1178	125
434.zeusmp	16	701	208	700	208	700	208	16	650	224	651	224	652	223
435.gromacs	16	459	249	459	249	459	249	16	377	303	376	304	375	304
436.cactusADM	16	876	218	876	218	874	219	4	167	287	165	290	168	285
437.leslie3d	16	1363	110	1362	110	1363	110	16	1234	122	1233	122	1235	122
444.namd	16	595	216	596	215	594	216	16	519	247	515	249	514	250
447.dealII	16	641	286	642	285	637	287	16	495	370	489	374	492	372
450.soplex	16	1132	118	1056	126	1056	126	16	1030	130	968	138	962	139
453.povray	16	290	293	290	293	289	295	16	252	338	251	340	251	339
454.calculix	16	459	288	460	287	460	287	16	389	340	391	338	390	339
459.GemsFDTD	16	1421	119	1416	120	1426	119	16	1352	126	1352	126	1353	125
465.tonto	16	619	254	618	255	621	254	16	514	307	513	307	513	307
470.lbm	16	1763	125	1763	125	1763	125	16	1762	125	1762	125	1762	125
481.wrf	16	900	199	900	199	902	198	16	867	206	866	206	864	207
482.sphinx3	16	1459	214	1459	214	1458	214	16	1377	226	1375	227	1377	226

Submit Notes

The config file option 'submit' was used.
 'numactl' was used to bind copies to the cores

Operating System Notes

 The libhugetlbfs libraries were installed using the
 installation rpms that came with the distribution.

 'ulimit -s unlimited' was used to set environment stack size
 'ulimit -l 2097152'  was used to set environment locked pages in memory limit

 Set vm/nr_hugepages=14336 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_MORECORE = "yes"
LD_LIBRARY_PATH = "/root/work/cpu2006v1.1/amd909gh-libs/64:/root/work/cpu2006v1.1/amd909gh-libs/32"
NCPUS = "4"

Base Compiler Invocation

C benchmarks:

pgcc

C++ benchmarks:

pgcpp

Fortran benchmarks:

pgf95

Benchmarks using both Fortran and C:

pgcc pgf95

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -Mnomain
436.cactusADM:	-DSPEC_CPU_LP64 -Mnomain
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -Mnomain
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

Base Other Flags

C benchmarks:

-Mipa=jobs:4

C++ benchmarks:

-Mipa=jobs:4

Fortran benchmarks:

-Mipa=jobs:4

Benchmarks using both Fortran and C:

-Mipa=jobs:4

Peak Compiler Invocation

C benchmarks:

pgcc

C++ benchmarks (except as noted below):

	pathCC
444.namd:	pgcpp

Fortran benchmarks (except as noted below):

	pathf95
410.bwaves:	pgf95
434.zeusmp:	pgf95
437.leslie3d:	pgf95

Benchmarks using both Fortran and C (except as noted below):

	pgcc pgf95
435.gromacs:	pathcc pathf95
481.wrf:	pathcc pathf95

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -Mnomain
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -Mnomain
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:	basepeak = yes
470.lbm:	-Mvect=cachesize:6291456 -fastsse -Msmartalloc=huge -Mprefetch=t0 -Mloop32 -Mfprelaxed -Mipa=fast -Mipa=inline -tp barcelona-64 -Bstatic_pgi
482.sphinx3:	-Mpfi=indirect(pass 1) -Mpfo=indirect(pass 2) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mvect=cachesize:6291456 -fastsse -Mfprelaxed -Msmartalloc -tp barcelona-64 -Bstatic_pgi

C++ benchmarks:

444.namd:	-Mpfi(pass 1) -Mpfo(pass 2) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mvect=cachesize:6291456 -fastsse -Munroll=n:4 -Munroll=m:8 -Msmartalloc=huge -Mnodepchk -Mfprelaxed --zc_eh -tp barcelona-64 -Bstatic_pgi
447.dealII:	-march=barcelona -Ofast -static -INLINE:aggressive=on -fno-exceptions -m32
450.soplex:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -L/usr/lib -lhugetlbfs(pass 2) -O3 -INLINE:aggressive=on -OPT:IEEE_arith=3 -OPT:IEEE_NaN_Inf=off -OPT:fold_unsigned_relops=on -OPT:malloc_alg=1 -CG:load_exe=0 -fno-exceptions -m32
453.povray:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -INLINE:aggressive=on

Fortran benchmarks:

410.bwaves:	-Mvect=cachesize:6291456 -fastsse -Msmartalloc -Mprefetch=nta -Mfprelaxed -Mipa=fast -Mipa=inline -tp barcelona-64 -Bstatic_pgi
416.gamess:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT(pass 2) -L/usr/lib64 -lhugetlbfs(pass 2) -O2 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256
434.zeusmp:	-Mvect=cachesize:6291456 -fastsse -Mfprelaxed -Mprefetch=distance:8 -Mprefetch=t0 -Msmartalloc=huge -Msmartalloc=hugebss -Mipa=fast -Mipa=inline -tp barcelona-64 -Bstatic_pgi
437.leslie3d:	-Mpfi=indirect(pass 1) -Mpfo=indirect(pass 2) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mvect=cachesize:6291456 -fastsse -Mvect=fuse -Msmartalloc=huge -Mprefetch=distance:8 -Mprefetch=t0 -Mfprelaxed -tp barcelona-64 -Bstatic_pgi
459.GemsFDTD:	-march=barcelona -Ofast -LNO:fission=2 -LNO:simd=2 -LNO:prefetch_ahead=1 -CG:load_exe=0 -CG:prefer_lru_reg=off -OPT:malloc_alg=1 -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT -L/usr/lib64 -lhugetlbfs
465.tonto:	-march=barcelona -Ofast -OPT:alias=no_f90_pointer_alias -LNO:blocking=off -CG:load_exe=1 -IPA:plimit=525 -OPT:malloc_alg=1 -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT -L/usr/lib64 -lhugetlbfs

Benchmarks using both Fortran and C:

435.gromacs:	-march=barcelona -Ofast -OPT:rsqrt=2 -OPT:malloc_alg=1 -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT -L/usr/lib64 -lhugetlbfs
436.cactusADM:	-Mvect=cachesize:6291456 -fastsse -Mconcur -Msmartalloc=huge -Mfprelaxed -Mipa=fast -Mipa=inline -tp barcelona-64 -Bstatic_pgi
454.calculix:	-Mpfi=indirect(pass 1) -Mpfo=indirect(pass 2) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mvect=cachesize:6291456 -fastsse -Msmartalloc=huge -Mprefetch=t0 -Mpre -Mfprelaxed -tp barcelona-64 -Bstatic_pgi
481.wrf:	-march=barcelona -Ofast -LNO:blocking=off -LNO:prefetch_ahead=10 -LANG:copyinout=off -IPA:callee_limit=5000 -GRA:prioritize_by_density=on -OPT:malloc_alg=1 -m3dnow -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT -L/usr/lib64 -lhugetlbfs

Peak Other Flags

C benchmarks:

-Mipa=jobs:4(pass 2)

C++ benchmarks:

444.namd:

-Mipa=jobs:4(pass 2)

Fortran benchmarks (except as noted below):

	-Mipa=jobs:4(pass 2)
416.gamess:	No flags used
459.GemsFDTD:	No flags used
465.tonto:	No flags used

Benchmarks using both Fortran and C (except as noted below):

	-Mipa=jobs:4(pass 2)
435.gromacs:	No flags used
481.wrf:	No flags used

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/pgi72_linux_flags.html,
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090710.html,
http://www.spec.org/cpu2006/flags/amd-platform-amd909gh.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/pgi72_linux_flags.xml,
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090710.xml,
http://www.spec.org/cpu2006/flags/amd-platform-amd909gh.xml.
