SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

NovaScale R630 E1 LR
(Intel Xeon E5405, 2.00 GHz)

SPECint®2006 = 19.7

CPU2006 license: 20 Test date: Dec-2008
Test sponsor: Bull SAS Hardware Availability: Oct-2008
Tested by: NEC Corporation Software Availability: Nov-2008

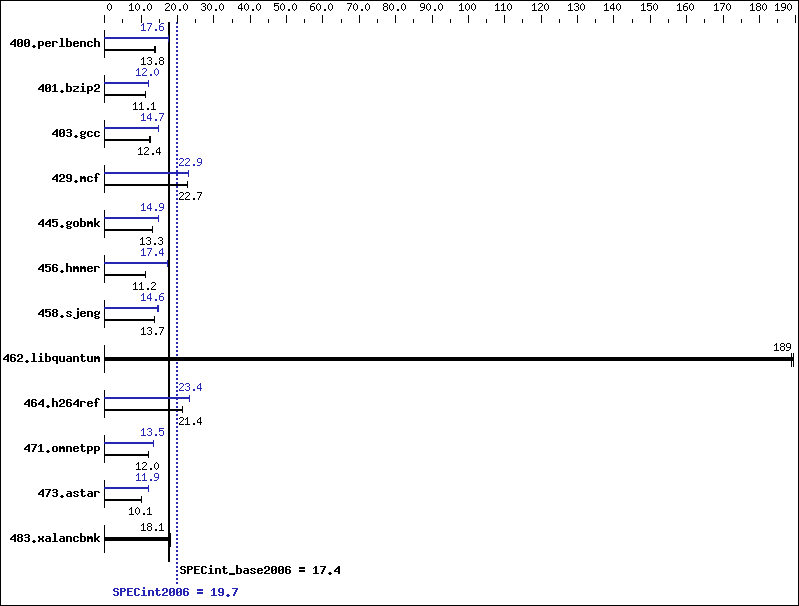

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5405
CPU Characteristics: 1333 MHz system bus
CPU MHz: 2000
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips (fault tolerant, see Platform Notes)
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 12 GB (6x2 GB PC2-5300F, 2 rank, CL5-5-5, ECC)
Disk Subsystem: 2x146.5 GB SAS, 15000 RPM, Software RAID Level1
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 5.2
Advanced Platform, Kernel 2.6.18-92.1.13.el5 on
an x86_64
Compiler: Intel C++ Compiler 11.0 for Linux
Build 20081105 Package ID: l_cproc_p_11.0.074
Auto Parallel: Yes
File System: ext3
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 8.1
ft Server Control Software 6.0.2-198

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 708 13.8 707 13.8  708 13.8 555 17.6 556 17.6 555 17.6
401.bzip2 868 11.1 864 11.2  866 11.1 801 12.0 802 12.0 801 12.0
403.gcc 652 12.3 646 12.5  647 12.4 549 14.7 547 14.7 548 14.7
429.mcf 402 22.7 401 22.7  401 22.7 398 22.9 398 22.9 398 22.9
445.gobmk 792 13.3 791 13.3  791 13.3 706 14.9 707 14.8 706 14.9
456.hmmer 830 11.2 830 11.2  829 11.3 537 17.4 538 17.4 537 17.4
458.sjeng 883 13.7 881 13.7  881 13.7 830 14.6 824 14.7 827 14.6
462.libquantum 109 189   109 189    110 189   109 189   109 189   110 189
464.h264ref 1033 21.4 1035 21.4  1035 21.4 949 23.3 945 23.4 946 23.4
471.omnetpp 524 11.9 522 12.0  522 12.0 466 13.4 462 13.5 463 13.5
473.astar 694 10.1 703 9.98 695 10.1 588 11.9 588 11.9 588 11.9
483.xalancbmk 381 18.1 381 18.1  383 18.0 381 18.1 381 18.1 383 18.0

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 OMP_NUM_THREADS set to number of cores
 KMP_AFFINITY set to "physical,0"

Platform Notes

 This Express5800/320Fd-LR is a fault-tolerant server.
 Two modules are installed in this server.
 Each module physically has "2CPU chips,12GB memory", The total physical configuration
 is "4CPU chips,24GB memory".
 Using fault-tolerant lockstep technology, these two modules communicate with each other
 and execute the same instructions at the same time, The operating system only sees
 "2CPU chips,12GB memory" as the other components add only redundancy and do not
 contribute to any performance benefit.

General Notes

 The NEC Express5800/320Fd-LR(Intel Xeon E5405) and
 the Bull NovaScale R630 E1 LR(Intel Xeon E5405, 2.00 GHz) models are electronically equivalent.
 The results have been measured on a NEC Express5800/320Fd-LR(Intel Xeon E5405) model.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -parallel   -par-runtime-control   -opt-prefetch

C++ benchmarks:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -opt-prefetch   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/Compiler/11.0/074/bin/intel64/icc   -L/opt/intel/Compiler/11.0/074/ipp/em64t/lib   -I/opt/intel/Compiler/11.0/074/ipp/em64t/include
456.hmmer:  /opt/intel/Compiler/11.0/074/bin/intel64/icc   -L/opt/intel/Compiler/11.0/074/ipp/em64t/lib   -I/opt/intel/Compiler/11.0/074/ipp/em64t/include

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -ansi-alias   -opt-prefetch
401.bzip2:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -auto-ilp32   -opt-prefetch   -ansi-alias
403.gcc:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -inline-calloc   -opt-malloc-options=3
429.mcf:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -O2   -ipo   -no-prec-div   -ansi-alias
456.hmmer:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -ansi-alias   -auto-ilp32
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll4
462.libquantum:  basepeak = yes
464.h264ref:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap
473.astar:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=routine   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-int-linux64-revE.html,
http://www.spec.org/cpu2006/flags/NEC-Intel-Linux-Settings-flags-revB.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-int-linux64-revE.xml,
http://www.spec.org/cpu2006/flags/NEC-Intel-Linux-Settings-flags-revB.xml.
