SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM BladeCenter LS42 (AMD Opteron 8376 HE)

SPECfp®2006 = 20.1

CPU2006 license: 11 Test date: Feb-2009
Test sponsor: IBM Corporation Hardware Availability: Mar-2009
Tested by: IBM Corporation Software Availability: May-2008

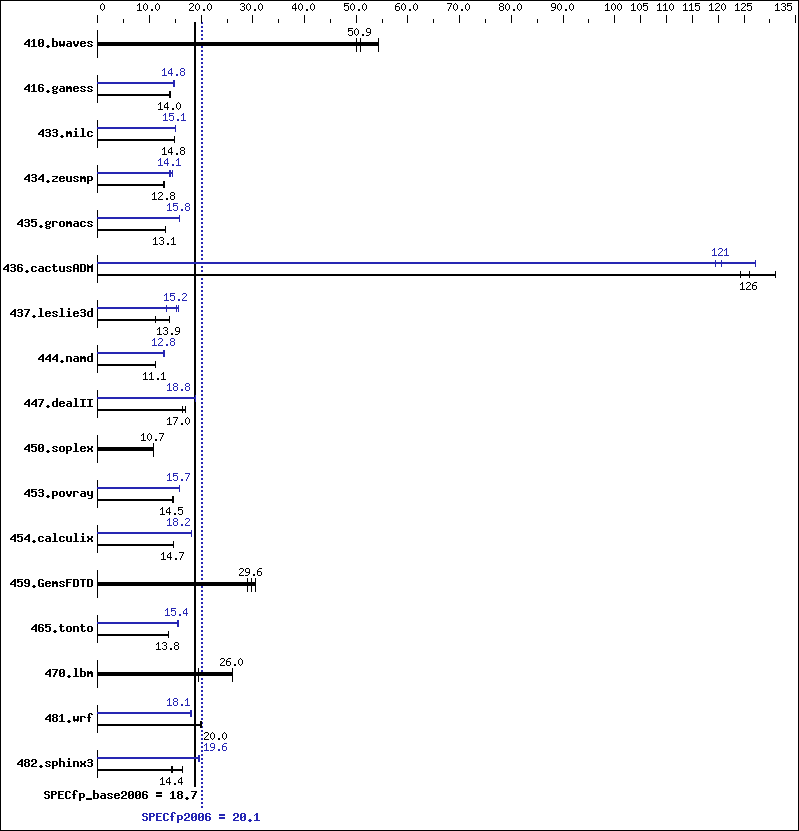

Benchmark results graph
Hardware
CPU Name: AMD Opteron 8376 HE
CPU Characteristics:
CPU MHz: 2300
FPU: Integrated
CPU(s) enabled: 16 cores, 4 chips, 4 cores/chip
CPU(s) orderable: 1,2,3,4 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory: 64 GB (16 x 4 GB DDR2-6400 ECC)
Disk Subsystem: 1 x 73 GB SAS, 10000 RPM
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64) SP2,
Kernel 2.6.16.60-0.21-smp
Compiler: PGI Server Complete Version 7.2
Auto Parallel: Yes
File System: ReiserFS
System State: Run level 3 (Full multiuser with network)
Base Pointers: 32/64-bit
Peak Pointers: 64-bit
Other Software: binutils 2.18.50

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 267   50.9 272   50.0 250   54.3 267   50.9 272 50.0 250   54.3
416.gamess 1399   14.0 1400   14.0 1405   13.9 1327   14.8 1330 14.7 1326   14.8
433.milc 618   14.9 621   14.8 622   14.8 609   15.1 607 15.1 608   15.1
434.zeusmp 711   12.8 705   12.9 710   12.8 633   14.4 644 14.1 651   14.0
435.gromacs 544   13.1 544   13.1 544   13.1 452   15.8 453 15.8 452   15.8
436.cactusADM 96.2 124   94.8 126   91.2 131   99.1 121   100 119   94.0 127
437.leslie3d 676   13.9 674   14.0 847   11.1 618   15.2 602 15.6 708   13.3
444.namd 719   11.2 720   11.1 720   11.1 626   12.8 625 12.8 626   12.8
447.dealII 694   16.5 673   17.0 673   17.0 607   18.9 607 18.8 607   18.8
450.soplex 777   10.7 774   10.8 777   10.7 777   10.7 774 10.8 777   10.7
453.povray 366   14.5 367   14.5 365   14.6 338   15.7 338 15.7 338   15.7
454.calculix 563   14.7 560   14.7 562   14.7 455   18.1 454 18.2 454   18.2
459.GemsFDTD 366   29.0 347   30.6 358   29.6 366   29.0 347 30.6 358   29.6
465.tonto 714   13.8 715   13.8 714   13.8 641   15.4 640 15.4 634   15.5
470.lbm 529   26.0 526   26.1 704   19.5 529   26.0 526 26.1 704   19.5
481.wrf 559   20.0 563   19.9 558   20.0 618   18.1 615 18.2 621   18.0
482.sphinx3 1353   14.4 1194   16.3 1364   14.3 998   19.5 995 19.6 992   19.7

Submit Notes

 The config file option 'submit' was used.
 'numactl' was used to bind copies to the cores

Operating System Notes

 The libhugetlbfs libraries were installed using the
 installation rpms that came with the distribution.

 'ulimit -s unlimited' was used to set environment stack size
 'ulimit -l 2097152'  was used to set environment locked pages in memory limit

 Set vm/nr_hugepages=14336 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages

 Environment variables set by runspec before the start of the run:
 LD_LIBRARY_PATH to "/cpu2006/pgi72/linux_lib32:/cpu2006/pgi72/linux_lib64"
 PGI_HUGE_PAGES = "14336"
 SPEC_DIR = "/cpu2006"
 NCPUS = "16"

 Processor Performance States Disabled in BIOS
 Memory ChipKill Disabled in BIOS

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mconcur   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

 -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mfprelaxed   -Mconcur   --zc_eh   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

Fortran benchmarks:

 -Mvect=cachesize:6291456   -fastsse   -Mfprelaxed   -Msmartalloc=huge   -Mconcur   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

 -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mconcur   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

Base Other Flags

C benchmarks:

 -Mipa=jobs:8

C++ benchmarks:

 -Mipa=jobs:8

Fortran benchmarks:

 -Mipa=jobs:8

Benchmarks using both Fortran and C:

 -Mipa=jobs:8

Peak Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Msafeptr   -Mconcur   -Mfprelaxed   -Mipa=inline   -Mipa=arg   -Mipa=const   -Mipa=ptr   -Mipa=shape   -tp barcelona-64   -Bstatic_pgi
470.lbm:  basepeak = yes
482.sphinx3:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Mfprelaxed   -Msmartalloc   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

444.namd:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Munroll=n:4   -Munroll=m:8   -Msmartalloc=huge   -Mnodepchk   -Mfprelaxed   --zc_eh   -tp barcelona-64   -Bstatic_pgi
447.dealII:  -Mvect=cachesize:6291456   -fastsse   -alias=ansi   -Msmartalloc=huge   -Mprefetch=t0   -Mnovect   -Mfprelaxed   --zc_eh   -Mipa=fast   -Mipa=inline   -tp barcelona-32   -Bstatic_pgi
450.soplex:  basepeak = yes
453.povray:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -Mipa=fast(pass 2)   -Mipa=inlinenopfo:3(pass 2)   -Mipa=staticfunc(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mprefetch=t0   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mvect=noaltcode   -Mprefetch=t0   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi
434.zeusmp:  -Mvect=cachesize:6291456   -fastsse   -Mfprelaxed   -Mconcur   -Mprefetch=distance:8   -Mprefetch=t0   -Msmartalloc=huge   -Msmartalloc=hugebss   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
437.leslie3d:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -Mconcur=noaltcode(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Mvect=fuse   -Msmartalloc=huge   -Mprefetch=distance:8   -Mprefetch=t0   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi
459.GemsFDTD:  basepeak = yes
465.tonto:  -Mvect=cachesize:6291456   -fastsse   -O4   -Mvect=noaltcode   -Msmartalloc=huge   -Mprefetch=distance:8   -Mprefetch=t0   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

435.gromacs:  -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mfprelaxed   -Mconcur   -Mfpapprox=rsqrt   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
436.cactusADM:  -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mfprelaxed   -Mconcur   -Mdse   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
454.calculix:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mloop32   -Mprefetch=t0   -Mpre   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi
481.wrf:  -Mvect=cachesize:6291456   -fastsse   -Mvect=noaltcode   -Msmartalloc=huge   -Mprefetch=distance:8   -Mconcur=noaltcode   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi

Peak Other Flags

C benchmarks:

 -Mipa=jobs:8(pass 2)

C++ benchmarks:

 -Mipa=jobs:8(pass 2)

Fortran benchmarks:

 -Mipa=jobs:8

Benchmarks using both Fortran and C (except as noted below):

 -Mipa=jobs:8(pass 2)
481.wrf:  No flags used

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/pgi72_linux_flags.20090713.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/pgi72_linux_flags.20090713.00.xml.
