SPEC® CINT2006 Result

IBM Corporation

IBM System x3755 (AMD Opteron 8382)

SPECint®_rate2006 = 236

SPECint_rate_base2006 = 196

CPU2006 license:	11	Test date:	Dec-2008
Test sponsor:	IBM Corporation	Hardware Availability:	Mar-2009
Tested by:	Advanced Micro Devices	Software Availability:	Jun-2008

Hardware
CPU Name:	AMD Opteron 8382
CPU Characteristics:
CPU MHz:	2600
FPU:	Integrated
CPU(s) enabled:	16 cores, 4 chips, 4 cores/chip
CPU(s) orderable:	1,2,3,4 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	6 MB I+D on chip per chip
Other Cache:	None
Memory:	64 GB (16 x 4 GB, DDR2-667 CL5 Reg Dual Rank)
Disk Subsystem:	1 x 73.4 GB SAS, 15000 RPM
Other Hardware:	None

Software
Operating System:	SuSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp
Compiler:	PGI Server Complete Version 7.2 PathScale Compiler Suite Version 3.2
Auto Parallel:	No
File System:	ReiserFS
System State:	Run level 3 (Full multiuser with network)
Base Pointers:	32/64-bit
Peak Pointers:	32/64-bit
Other Software:	binutils 2.18 32-bit and 64-bit libhugetlbfs libraries SmartHeap 8.1 32-bit Library for Linux

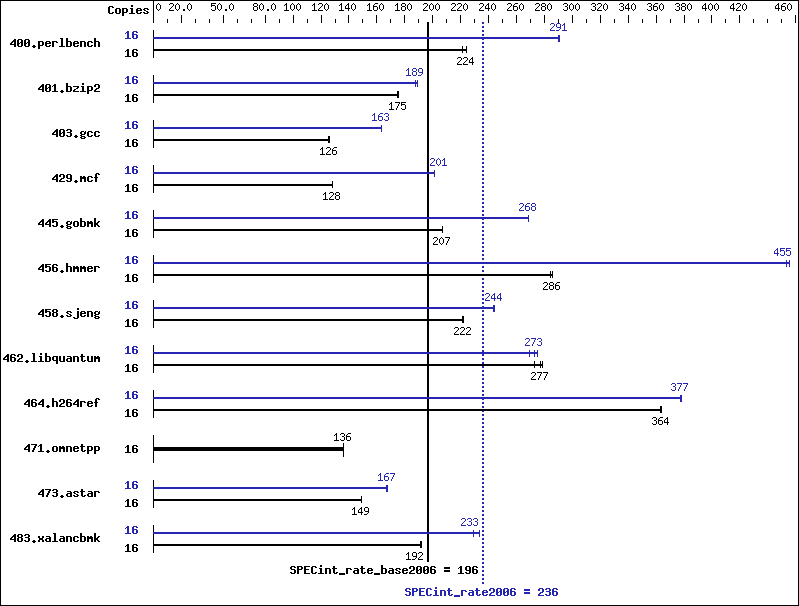

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	16	706	221	698	224	698	224	16	538	291	539	290	537	291
401.bzip2	16	880	175	883	175	880	175	16	817	189	823	188	815	189
403.gcc	16	1020	126	1026	126	1022	126	16	789	163	790	163	788	163
429.mcf	16	1136	128	1137	128	1136	128	16	725	201	725	201	726	201
445.gobmk	16	811	207	811	207	811	207	16	626	268	625	268	626	268
456.hmmer	16	523	286	523	286	525	285	16	329	454	328	455	328	455
458.sjeng	16	873	222	874	222	873	222	16	796	243	795	244	793	244
462.libquantum	16	1190	279	1215	273	1197	277	16	1215	273	1204	275	1230	270
464.h264ref	16	975	363	974	364	973	364	16	936	378	938	377	938	377
471.omnetpp	16	733	136	734	136	734	136	16	733	136	734	136	734	136
473.astar	16	753	149	753	149	754	149	16	672	167	672	167	672	167
483.xalancbmk	16	576	192	575	192	577	191	16	473	233	482	229	472	234

Submit Notes

The config file option 'submit' was used.
 'numactl' was used to bind copies to the cores

Operating System Notes

 The libhugetlbfs libraries were installed using the
 installation rpms that came with the distribution.

 'ulimit -s unlimited' was used to set environment stack size
 'ulimit -l 2097152'  was used to set environment locked pages in memory limit

 Set vm/nr_hugepages=14336 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_MORECORE = "yes"
LD_LIBRARY_PATH = "/root/work/cpu2006v1.1/amd909gh-libs/64:/root/work/cpu2006v1.1/amd909gh-libs/32"

Base Compiler Invocation

C benchmarks:

pgcc

C++ benchmarks:

pgcpp

Base Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
403.gcc:	-DSPEC_CPU_LP64
429.mcf:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Base Other Flags

C benchmarks:

-Mipa=jobs:4

C++ benchmarks:

-Mipa=jobs:4

Peak Compiler Invocation

C benchmarks (except as noted below):

	pathcc
456.hmmer:	pgcc
462.libquantum:	pgcc

C++ benchmarks (except as noted below):

	pgcpp
483.xalancbmk:	pathCC

Peak Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT(pass 2) -L/usr/lib64 -lhugetlbfs(pass 2) -Ofast -IPA:plimit=20000 -IPA:field_reorder=on -LNO:opt=0 -WOPT:if_conv=0 -CG:local_sched_alg=1
401.bzip2:	-march=barcelona -O3 -OPT:alias=disjoint -OPT:Ofast -OPT:goto=off -INLINE:aggressive=on -CG:local_sched_alg=1 -m3dnow -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT -L/usr/lib64 -lhugetlbfs
403.gcc:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -OPT:malloc_alg=1 -LNO:trip_count=256 -LNO:prefetch_ahead=10 -CG:prefer_lru_reg=off -m32
429.mcf:	-march=barcelona -O3 -ipa -INLINE:aggressive=on -CG:gcm=off -GRA:prioritize_by_density=on -m32 -L/usr/lib -lhugetlbfs
445.gobmk:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT(pass 2) -L/usr/lib64 -lhugetlbfs(pass 2) -O3 -OPT:alias=restrict -LNO:prefetch=1 -LNO:ignore_feedback=off -CG:p2align=on
456.hmmer:	-Mvect=cachesize:6291456 -fastsse -Mvect=partial -Munroll=n:8 -Msmartalloc=huge -Msafeptr -Mprefetch=t0 -Mfprelaxed -Mipa=const -Mipa=ptr -Mipa=arg -Mipa=inline -tp barcelona-64 -Bstatic_pgi
458.sjeng:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT(pass 2) -L/usr/lib64 -lhugetlbfs(pass 2) -O3 -ipa -LNO:ignore_feedback=off -LNO:full_unroll=10 -LNO:fusion=0 -LNO:fission=2 -IPA:pu_reorder=2 -CG:ptr_load_use=0 -OPT:unroll_times_max=8 -INLINE:aggressive=on
462.libquantum:	-Mvect=cachesize:6291456 -fastsse -Munroll=m:8 -Msmartalloc=huge -Mprefetch=distance:4 -Mfprelaxed -Mipa=fast -Mipa=inline -Mipa=noarg -tp barcelona-64 -Bstatic_pgi
464.h264ref:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT(pass 2) -L/usr/lib64 -lhugetlbfs(pass 2) -O3 -IPA:plimit=20000 -OPT:alias=disjoint -LNO:prefetch=0 -CG:ptr_load_use=0 -CG:push_pop_int_saved_regs=off -CG:prefer_lru_reg=off

C++ benchmarks:

471.omnetpp:	basepeak = yes
473.astar:	-Mpfi(pass 1) -Mpfo(pass 2) -Mipa=fast(pass 2) -Mipa=inline:6(pass 2) -Mvect=cachesize:6291456 -fastsse -O4 -Msmartalloc=huge -Msafeptr=global -Mfprelaxed --zc_eh -tp barcelona-32 -Bstatic_pgi
483.xalancbmk:	-march=barcelona -Ofast -INLINE:aggressive=on -m32 -L/root/work/libraries/SmartHeap_8.1/lib -lsmartheap

Peak Other Flags

C benchmarks:

456.hmmer:	-Mipa=jobs:4
462.libquantum:	-Mipa=jobs:4

C++ benchmarks (except as noted below):

	-Mipa=jobs:4(pass 2)
483.xalancbmk:	No flags used

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/pgi72_linux_flags.html,
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090710.html,
http://www.spec.org/cpu2006/flags/amd-platform-amd909gh.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/pgi72_linux_flags.xml,
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090710.xml,
http://www.spec.org/cpu2006/flags/amd-platform-amd909gh.xml.
