SPEC® CFP2006 Result

Copyright 2006-2012 Standard Performance Evaluation Corporation

ScaleMP

vSMP Foundation (Intel Xeon X5570, see notes)

SPECfp®_rate2006 = Not Run

CPU2006 license: 2929 Test date: Apr-2009
Test sponsor: ScaleMP Hardware Availability: Apr-2009
Tested by: ScaleMP Software Availability: Apr-2009

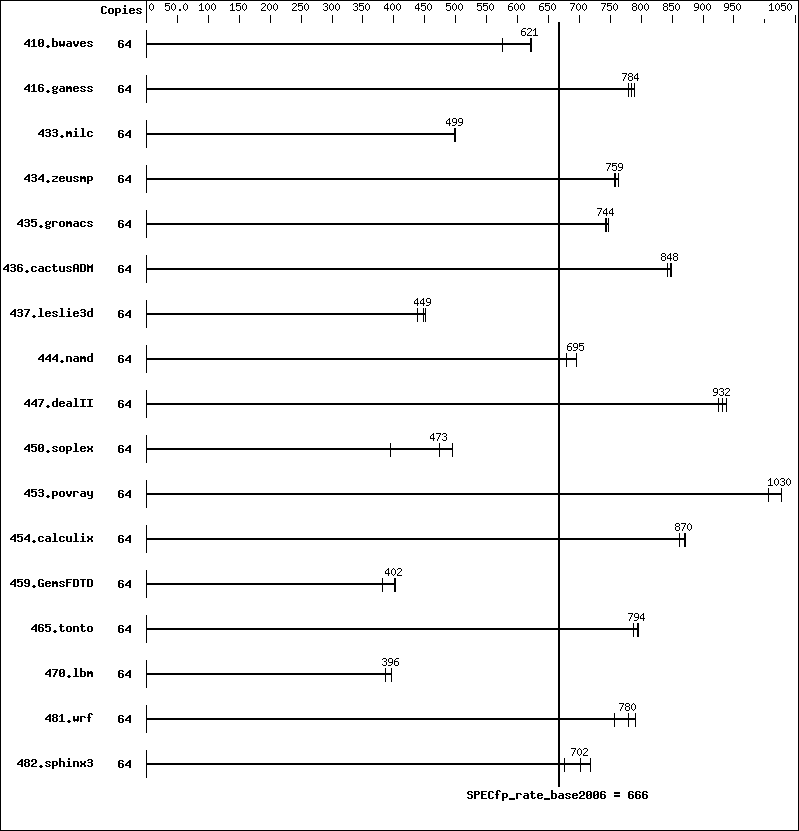

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5570
CPU Characteristics: Intel Turbo Boost Technology disabled
CPU MHz: 2933
FPU: Integrated
CPU(s) enabled: 32 cores, 8 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable: 4,6,8,10,12,14,16,18,20,22,24,26,28,30,32 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: 20 GB I+D off chip per entire system (see notes)
Memory: 192 GB (4 x 12 x 4 GB DDR3-1333R, ECC, CL9)
Disk Subsystem: 4 x 1 x 500 GB SATA, 7200 RPM
Other Hardware: InfiniBand
Software
Operating System: Red Hat Enterprise Linux Server
release 5.1 (Tikanga)
Kernel: 2.6.21.7-13.vSMP
Compiler: Intel C Compiler for applications running on
Intel 64, Version 11.0.074
Intel Fortran Compiler for applications running on
Intel 64, Version 11.0.074
Auto Parallel: No
File System: xfs
System State: Multi-user, run level 3
Base Pointers: 64-bit
Peak Pointers: Not Applicable
Other Software: ScaleMP vSMP Foundation 2.0.44.0

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 64 1511 575 1402 621 1398 622
416.gamess 64 1607 780 1588 789 1598 784
433.milc 64 1177 499 1180 498 1174 500
434.zeusmp 64 770 756 763 763 768 759
435.gromacs 64 616 742 614 744 612 747
436.cactusADM 64 902 848 908 842 901 849
437.leslie3d 64 1373 438 1341 449 1334 451
444.namd 64 756 679 739 695 738 696
447.dealII 64 791 926 780 938 786 932
450.soplex 64 1350 395 1128 473 1079 495
453.povray 64 338 1010 332 1030 331 1030
454.calculix 64 606 871 612 863 607 870
459.GemsFDTD 64 1781 381 1688 402 1690 402
465.tonto 64 800 787 793 794 792 796
470.lbm 64 2279 386 2220 396 2216 397
481.wrf 64 944 758 904 791 917 780
482.sphinx3 64 1845 676 1777 702 1738 718

Submit Notes

The config file option 'submit' was used with taskset
to bind processes to cores

Platform Notes

  BIOS Settings
     Hyper-Threading Technology set to ON.
     Turbo Boost was set to 'Disabled'.
  ScaleMP
     vSMP Foundation: 2.0.44
  Other Cache:
     ScaleMP vSMP Foundation manages cache coherency between the
     InfiniBand-connected systems via multiple concurrent memory
     coherency mechanisms, on a per-block basis, based on
     real-time memory activity access patterns.
     This mechanism reserves 20GB of the main memory across all
     boards (distributed), which is used as a 4th level cache.
  Hardware Details:
     System was aggregated using 4 X Supermicro SuperServer 6026T-NTR+.
     The servers were connected with Mellanox InfiniBand QDR HCAs and
     a QDR switch.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div

C++ benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div

Fortran benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div

Benchmarks using both Fortran and C:

 -xSSE4.2   -ipo   -O3   -no-prec-div

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-fp-linux64-revE.20090710.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-fp-linux64-revE.20090710.xml.
