SPEC® CINT2006 Result

Copyright 2006-2012 Standard Performance Evaluation Corporation

Hewlett-Packard Company

HP Integrity BL870c (1.6GHz/24MB Dual-Core
Intel Itanium 2)

SPECint®_rate2006 = Not Run

CPU2006 license: 03 Test date: May-2009
Test sponsor: Hewlett-Packard Company Hardware Availability: Nov-2007
Tested by: Hewlett-Packard Company Software Availability: Mar-2009

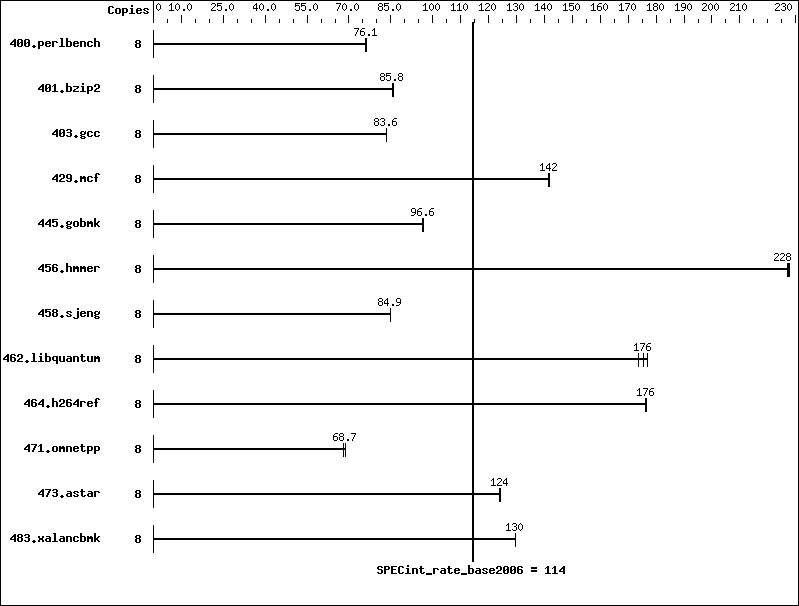

Benchmark results graph
Hardware
CPU Name: Dual-Core Intel Itanium 9150N
CPU Characteristics: 1.6GHz/24MB, 533MHz FSB
CPU MHz: 1600
FPU: Integrated
CPU(s) enabled: 8 cores, 4 chips, 2 cores/chip
CPU(s) orderable: 1-4 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 1 MB I + 256 KB D on chip per core
L3 Cache: 12 MB I+D on chip per core
Other Cache: None
Memory: 96 GB (24x4GB PC-4200 DIMMs)
Disk Subsystem: 2x73 GB 15K RPM SAS
Other Hardware: None
Software
Operating System: HPUX11i-DC-OE B.11.31.0903
Compiler: HP C/aC++ Developer's Bundle C.11.31.04.2
Auto Parallel: No
File System: vxfs
System State: Multi-user
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: MallocNextGen B.11.31.0903.02

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 8 1026 76.2 1027 76.1 1030 75.9
401.bzip2 8 900 85.8 900 85.8 901 85.7
403.gcc 8 771 83.5 771 83.6 771 83.6
429.mcf 8 515 142   515 142   514 142
445.gobmk 8 869 96.6 868 96.6 871 96.3
456.hmmer 8 329 227   328 228   328 228
458.sjeng 8 1140 84.9 1141 84.8 1139 85.0
462.libquantum 8 944 176   955 174   937 177
464.h264ref 8 1003 176   1004 176   1003 176
471.omnetpp 8 728 68.7 726 68.9 734 68.1
473.astar 8 452 124   453 124   452 124
483.xalancbmk 8 426 130   425 130   426 129

Submit Notes

The config file option 'submit' was used.

Operating System Notes

   The system had the March 2009 HP-UX 11i v3 Data Center
   Operating Environment and March 2009 compilers installed.

   The following kernel tunables were set, in addition to the
   defaults set by the Base Operating Environment:

   filecache_max=25%
   filecache_min=25%
   maxdsiz=3221225472
   fcache_fb_policy=1
   base_pagesize=64
   pagezero_daemon_enabled=0
   vxfs_ifree_timelag=-1

Platform Notes

 Hardware Threading was disabled
 The following config file entry was used to bind
 processes to cores using the HP-UX "mpsched" utility:
 submit = let "MYCPU=\$SPECCOPYNUM*2" ;mpsched -c \$MYCPU $command

Base Compiler Invocation

C benchmarks:

 /opt/ansic/bin/cc -AC99

C++ benchmarks:

 /opt/aCC/bin/aCC -Aa

Base Portability Flags

400.perlbench:  -DSPEC_CPU_HPUX_IA64
403.gcc:  -DSPEC_CPU_HPUX
462.libquantum:  -DSPEC_CPU_HPUX
483.xalancbmk:  -DSPEC_CPU_HPUX_IA64

Base Optimization Flags

C benchmarks:

 +Ofaster   +Otype_safety=ansi   -Wl,-aarchive_shared   -Wl,+pd,64M   -Wl,+pi,64K   -Wl,-N

C++ benchmarks:

 +Ofaster   +Otype_safety=ansi   -Wl,-aarchive_shared   -Wl,+pd,64M   -Wl,+pi,64K   -Wl,-N   -lmallocng

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Itanium-HPUX-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Itanium-HPUX-flags.xml.
