SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

PowerEdge T605 (AMD Opteron 2393 SE, 3.10 GHz)

CPU2006 license: 55 Test date: May-2009
Test sponsor: Dell Inc. Hardware Availability: May-2009
Tested by: Dell Inc. Software Availability: Jun-2008

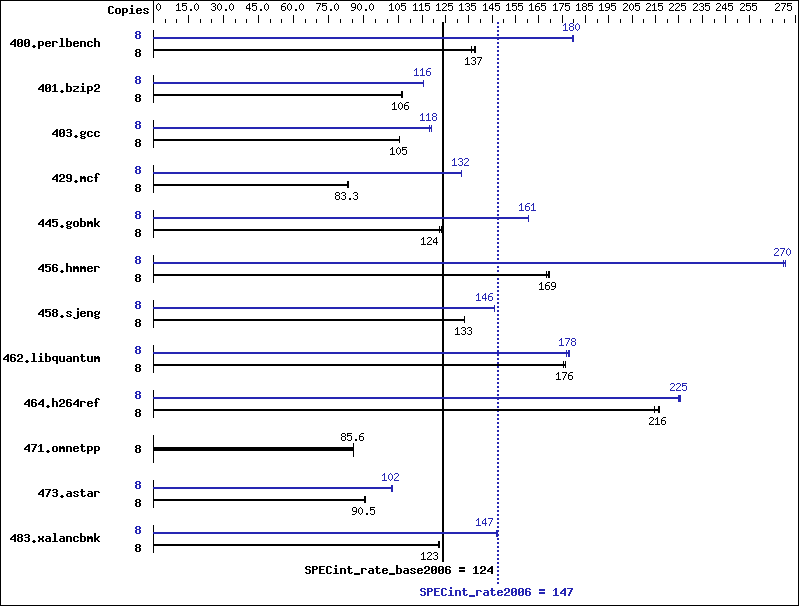

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2393 SE
CPU Characteristics:
CPU MHz: 3100
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (8 x 4 GB DDR2-800)
Disk Subsystem: 1 x 250 GB 7200 RPM SATA
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 5.3,
Kernel 2.6.18-128.el5
Compiler: PGI Server Complete Version 7.2
PathScale Compiler Suite Version 3.2
Auto Parallel: No
File System: ext3
System State: Run level 3 (multi-user)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: binutils 2.18
32-bit and 64-bit libhugetlbfs libraries
SmartHeap 8.1 32-bit Library for Linux

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 8 569 137   566 138   574 136   8 435 180   435 180   435 180
401.bzip2 8 726 106   725 106   727 106   8 668 116   668 116   668 116
403.gcc 8 611 105   612 105   613 105   8 542 119   545 118   545 118
429.mcf 8 877 83.1 876 83.3 875 83.3 8 554 132   553 132   553 132
445.gobmk 8 685 123   678 124   679 124   8 523 160   523 161   523 161
456.hmmer 8 443 168   440 169   441 169   8 276 270   276 271   277 270
458.sjeng 8 727 133   726 133   726 133   8 664 146   662 146   663 146
462.libquantum 8 940 176   944 176   940 176   8 932 178   932 178   938 177
464.h264ref 8 825 214   818 216   817 217   8 785 226   785 225   787 225
471.omnetpp 8 584 85.6 585 85.5 583 85.8 8 584 85.6 585 85.5 583 85.8
473.astar 8 618 90.9 621 90.5 621 90.4 8 550 102   550 102   549 102
483.xalancbmk 8 452 122   451 123   450 123   8 375 147   376 147   376 147

Submit Notes

 The config file option 'submit' was used.
 'numactl' was used to bind copies to the cores

Operating System Notes

 The libhugetlbfs libraries were installed using the
 installation rpms that came with the distribution.

 'ulimit -s unlimited' was used to set environment stack size
 'ulimit -l 2097152'  was used to set environment locked pages in memory limit

 Set vm/nr_hugepages=7168 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages

Platform Notes

HyperTransport Technology = HT 1 (Default = HT 3)

General Notes

environment variables set by runspec before the start of the run:
HUGETLB_MORECORE = "yes"
LD_LIBRARY_PATH = "/root/cpu2006-1.1/amd909gh-libs/64:/root/cpu2006-1.1/amd909gh-libs/32"

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

 -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mfprelaxed   --zc_eh   -Mipa=fast   -Mipa=inline:10   -tp barcelona-32   -Bstatic_pgi

Base Other Flags

C benchmarks:

 -Mipa=jobs:4

C++ benchmarks:

 -Mipa=jobs:4

Peak Compiler Invocation

C benchmarks (except as noted below):

 pathcc
456.hmmer:  pgcc
462.libquantum:  pgcc

C++ benchmarks (except as noted below):

 pgcpp
483.xalancbmk:  pathCC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT(pass 2)   -L/usr/lib64 -lhugetlbfs(pass 2)   -Ofast   -IPA:plimit=20000   -IPA:field_reorder=on   -LNO:opt=0   -WOPT:if_conv=0   -CG:local_sched_alg=1
401.bzip2:  -march=barcelona   -O3   -OPT:alias=disjoint   -OPT:Ofast   -OPT:goto=off   -INLINE:aggressive=on   -CG:local_sched_alg=1   -m3dnow   -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT   -L/usr/lib64 -lhugetlbfs
403.gcc:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:malloc_alg=1   -LNO:trip_count=256   -LNO:prefetch_ahead=10   -CG:prefer_lru_reg=off   -m32
429.mcf:  -march=barcelona   -O3   -ipa   -INLINE:aggressive=on   -CG:gcm=off   -GRA:prioritize_by_density=on   -m32   -L/usr/lib -lhugetlbfs
445.gobmk:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT(pass 2)   -L/usr/lib64 -lhugetlbfs(pass 2)   -O3   -OPT:alias=restrict   -LNO:prefetch=1   -LNO:ignore_feedback=off   -CG:p2align=on
456.hmmer:  -Mvect=cachesize:6291456   -fastsse   -Mvect=partial   -Munroll=n:8   -Msmartalloc=huge   -Msafeptr   -Mprefetch=t0   -Mfprelaxed   -Mipa=const   -Mipa=ptr   -Mipa=arg   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
458.sjeng:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT(pass 2)   -L/usr/lib64 -lhugetlbfs(pass 2)   -O3   -ipa   -LNO:ignore_feedback=off   -LNO:full_unroll=10   -LNO:fusion=0   -LNO:fission=2   -IPA:pu_reorder=2   -CG:ptr_load_use=0   -OPT:unroll_times_max=8   -INLINE:aggressive=on
462.libquantum:  -Mvect=cachesize:6291456   -fastsse   -Munroll=m:8   -Msmartalloc=huge   -Mprefetch=distance:4   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -Mipa=noarg   -tp barcelona-64   -Bstatic_pgi
464.h264ref:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT(pass 2)   -L/usr/lib64 -lhugetlbfs(pass 2)   -O3   -IPA:plimit=20000   -OPT:alias=disjoint   -LNO:prefetch=0   -CG:ptr_load_use=0   -CG:push_pop_int_saved_regs=off   -CG:prefer_lru_reg=off

C++ benchmarks:

471.omnetpp:  basepeak = yes
473.astar:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline:6(pass 2)   -Mvect=cachesize:6291456   -fastsse   -O4   -Msmartalloc=huge   -Msafeptr=global   -Mfprelaxed   --zc_eh   -tp barcelona-32   -Bstatic_pgi
483.xalancbmk:  -march=barcelona   -Ofast   -INLINE:aggressive=on   -m32   -L/root/work/libraries/SmartHeap_8.1/lib -lsmartheap

Peak Other Flags

C benchmarks:

456.hmmer:  -Mipa=jobs:4
462.libquantum:  -Mipa=jobs:4

C++ benchmarks (except as noted below):

 -Mipa=jobs:4(pass 2)
483.xalancbmk:  No flags used

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/pgi72_linux_flags.20090710.html,
http://www.spec.org/cpu2006/flags/pathscale32-flags.html,
http://www.spec.org/cpu2006/flags/amd-platform.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/pgi72_linux_flags.20090710.xml,
http://www.spec.org/cpu2006/flags/pathscale32-flags.xml,
http://www.spec.org/cpu2006/flags/amd-platform.xml.
