SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Intel Corporation

Intel DQ45CB motherboard (Intel Core 2 Quad Q9400)

SPECfp®2006 = 20.1

CPU2006 license: 13 Test date: Apr-2009
Test sponsor: Intel Corporation Hardware Availability: May-2009
Tested by: Intel Corporation Software Availability: Nov-2008

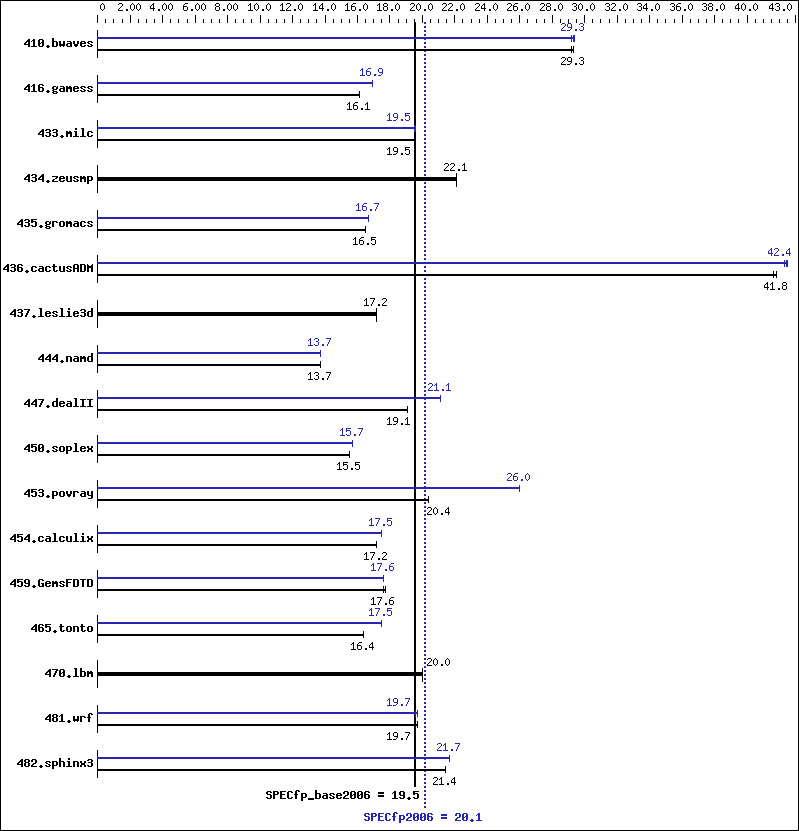

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Quad Q9400
CPU Characteristics:
CPU MHz: 2666
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip, 3 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 4 GB (4x1GB DDR2-800 CL5)
Disk Subsystem: Seagate 320 GB SATA, 7200RPM
Other Hardware: None
Software
Operating System: Windows Vista Ultimate w/ SP1 (64-bit)
Compiler: Intel C++ Compiler Professional 11.0 for IA32
Build 20080930 Package ID: w_cproc_p_11.0.054
Intel Visual Fortran Compiler Professional 11.0
for IA32
Build 20080930 Package ID: w_cprof_p_11.0.054
Microsoft Visual Studio 2008 (for libraries)
Auto Parallel: Yes
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: SmartHeap Library Version 8.1 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 464 29.3 465 29.2 463 29.3 463 29.4 464 29.3 465 29.2
416.gamess 1215 16.1 1215 16.1 1214 16.1 1161 16.9 1161 16.9 1161 16.9
433.milc 471 19.5 471 19.5 472 19.5 469 19.6 471 19.5 471 19.5
434.zeusmp 413 22.1 411 22.1 411 22.1 413 22.1 411 22.1 411 22.1
435.gromacs 434 16.5 434 16.5 434 16.5 429 16.7 428 16.7 428 16.7
436.cactusADM 286 41.8 287 41.6 286 41.8 282 42.5 282 42.4 282 42.3
437.leslie3d 547 17.2 546 17.2 546 17.2 547 17.2 546 17.2 546 17.2
444.namd 584 13.7 584 13.7 584 13.7 584 13.7 584 13.7 584 13.7
447.dealII 600 19.1 600 19.1 600 19.1 543 21.1 543 21.1 543 21.1
450.soplex 537 15.5 537 15.5 537 15.5 531 15.7 532 15.7 531 15.7
453.povray 261 20.4 261 20.4 261 20.4 205 26.0 205 26.0 205 26.0
454.calculix 479 17.2 480 17.2 479 17.2 471 17.5 471 17.5 471 17.5
459.GemsFDTD 601 17.7 601 17.6 602 17.6 602 17.6 603 17.6 602 17.6
465.tonto 602 16.4 601 16.4 602 16.4 562 17.5 563 17.5 563 17.5
470.lbm 686 20.0 686 20.0 686 20.0 686 20.0 686 20.0 686 20.0
481.wrf 574 19.5 568 19.7 568 19.7 569 19.6 568 19.7 568 19.7
482.sphinx3 910 21.4 909 21.4 909 21.4 899 21.7 899 21.7 899 21.7

General Notes

 Tested systems can be used with Shin-G ATX case,
 Antec Truepower Trio power supply TP3-650
 Binaries were built on Windows Vista Ultimate (32-bit)
 Binaries were built on Windows Vista Ultimate (32-bit)
 OMP_NUM_THREADS set to number of logical processors as seen by the OS
 KMP_AFFINITY set to physical,0

Base Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qc99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -QxSSE4.1   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   /F1000000000

C++ benchmarks:

 -QxSSE4.1   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   -Qcxx-features   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -QxSSE4.1   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   /F1000000000

Benchmarks using both Fortran and C:

 -QxSSE4.1   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   /F1000000000

Peak Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qc99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qc99   ifort

Peak Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

433.milc:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   /F1000000000
470.lbm:  basepeak = yes
482.sphinx3:  -QxSSE4.1   -Qipo   -O3   -Qprec-div-   -Qunroll2   /F1000000000

C++ benchmarks:

444.namd:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
447.dealII:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qopt-prefetch   -Qansi-alias   -Qscalar-rep-   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
450.soplex:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
453.povray:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qansi-alias   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -QxSSE4.1   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qparallel   /F1000000000
416.gamess:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F1000000000
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qopt-prefetch   -Qparallel   /F1000000000
465.tonto:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto   /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
436.cactusADM:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qopt-prefetch   -Qparallel   /F1000000000
454.calculix:  -QxSSE4.1   -Qipo   -O3   -Qprec-div-   /F1000000000
481.wrf:  -QxSSE4.1   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qparallel   /F1000000000

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-win32-revA.20090710.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-win32-revA.20090710.xml.
