SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

GIGA-BYTE Technology Co. Ltd. (Test Sponsor: Intel Corporation)

Gigabyte MA78GM-S2H Motherboard (AMD Phenom II X4
810)

CPU2006 license: 13 Test date: May-2009
Test sponsor: Intel Corporation Hardware Availability: Feb-2009
Tested by: Intel Corporation Software Availability: Nov-2008

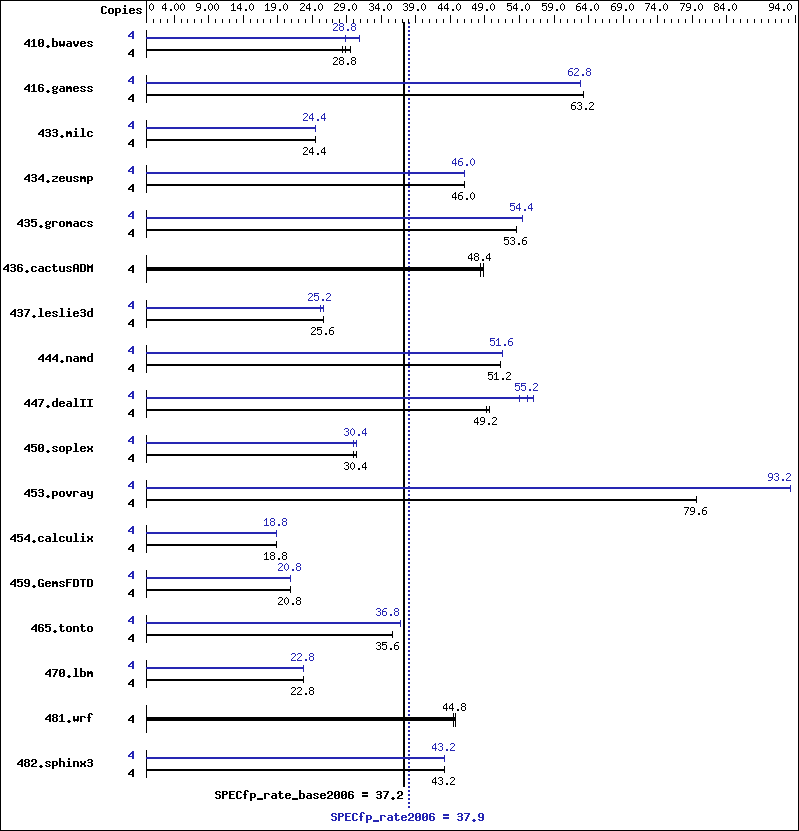

Benchmark results graph
Hardware
CPU Name: AMD Phenom II X4 810
CPU Characteristics:
CPU MHz: 2600
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory: 4 GB (4x1GB DDR2-800 CL5)
Disk Subsystem: Seagate 320 GB SATA, 7200RPM
Other Hardware: None
Software
Operating System: Windows Vista Ultimate w/ SP1 (64-bit)
Compiler: Intel C++ Compiler Professional 11.0 for IA32
Build 20080930 Package ID: w_cproc_p_11.0.054
Intel Visual Fortran Compiler Professional 11.0
for IA32
Build 20080930 Package ID: w_cprof_p_11.0.054
Microsoft Visual Studio 2008 (for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: SmartHeap Library Version 8.1 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 1911 28.4 1886 28.8 1837 29.6 4 1763 30.8 1884 28.8 1880 28.8
416.gamess 4 1241 63.2 1242 63.2 1242 63.2 4 1244 62.8 1244 62.8 1244 62.8
433.milc 4 1500 24.4 1500 24.4 1501 24.4 4 1501 24.4 1501 24.4 1500 24.4
434.zeusmp 4 791 46.0 793 46.0 792 46.0 4 788 46.0 793 46.0 791 46.0
435.gromacs 4 533 53.6 533 53.6 533 53.6 4 526 54.4 526 54.4 526 54.4
436.cactusADM 4 985 48.4 983 48.8 984 48.4 4 985 48.4 983 48.8 984 48.4
437.leslie3d 4 1478 25.6 1479 25.6 1480 25.6 4 1478 25.6 1481 25.2 1481 25.2
444.namd 4 627 51.2 627 51.2 627 51.2 4 621 51.6 622 51.6 621 51.6
447.dealII 4 926 49.6 928 49.2 928 49.2 4 846 54.0 827 55.2 818 56.0
450.soplex 4 1109 30.0 1102 30.4 1101 30.4 4 1113 30.0 1103 30.4 1102 30.4
453.povray 4 267 79.6 267 79.6 268 79.6 4 229 93.2 228 93.2 228 93.2
454.calculix 4 1769 18.8 1770 18.8 1769 18.8 4 1769 18.8 1768 18.8 1769 18.8
459.GemsFDTD 4 2055 20.8 2047 20.8 2033 20.8 4 2043 20.8 2035 20.8 2046 20.8
465.tonto 4 1106 35.6 1110 35.6 1109 35.6 4 1069 36.8 1071 36.8 1073 36.8
470.lbm 4 2395 22.8 2395 22.8 2395 22.8 4 2395 22.8 2395 22.8 2395 22.8
481.wrf 4 1001 44.8 1008 44.4 999 44.8 4 1001 44.8 1008 44.4 999 44.8
482.sphinx3 4 1805 43.2 1804 43.2 1802 43.2 4 1802 43.2 1805 43.2 1802 43.2

Submit Notes

The config file option 'submit' was used.

General Notes

 Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply
 Binaries were built on Windows Vista Ultimate (32-bit)

Base Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qc99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 /arch:SSE2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000

C++ benchmarks:

 /arch:SSE2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qcxx-features   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 /arch:SSE2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000

Benchmarks using both Fortran and C:

 /arch:SSE2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000

Peak Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qc99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qc99   ifort

Peak Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

433.milc:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   /F1000000000
470.lbm:  /arch:SSE2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
482.sphinx3:  /arch:SSE2   -Qipo   -O3   -Qprec-div-   -Qunroll2   /F1000000000

C++ benchmarks:

444.namd:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
447.dealII:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   -Qscalar-rep-   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
450.soplex:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
453.povray:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qansi-alias   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  /arch:SSE2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
416.gamess:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F1000000000
434.zeusmp:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   /F1000000000
437.leslie3d:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
459.GemsFDTD:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qopt-prefetch   /F1000000000
465.tonto:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto   /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
436.cactusADM:  basepeak = yes
454.calculix:  /arch:SSE2   -Qipo   -O3   -Qprec-div-   /F1000000000
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-win32-revA.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-win32-revA.xml.
