SPEC® CFP2006 Result

Copyright 2006-2012 Standard Performance Evaluation Corporation

GIGA-BYTE Technology Co. Ltd. (Test Sponsor: Intel Corporation)

Gigabyte MA78GM-S2H Motherboard (AMD Phenom II X4
955)

SPECfp®2006 = 18.6

CPU2006 license: 13 Test date: May-2009
Test sponsor: Intel Corporation Hardware Availability: Apr-2009
Tested by: Intel Corporation Software Availability: Nov-2008

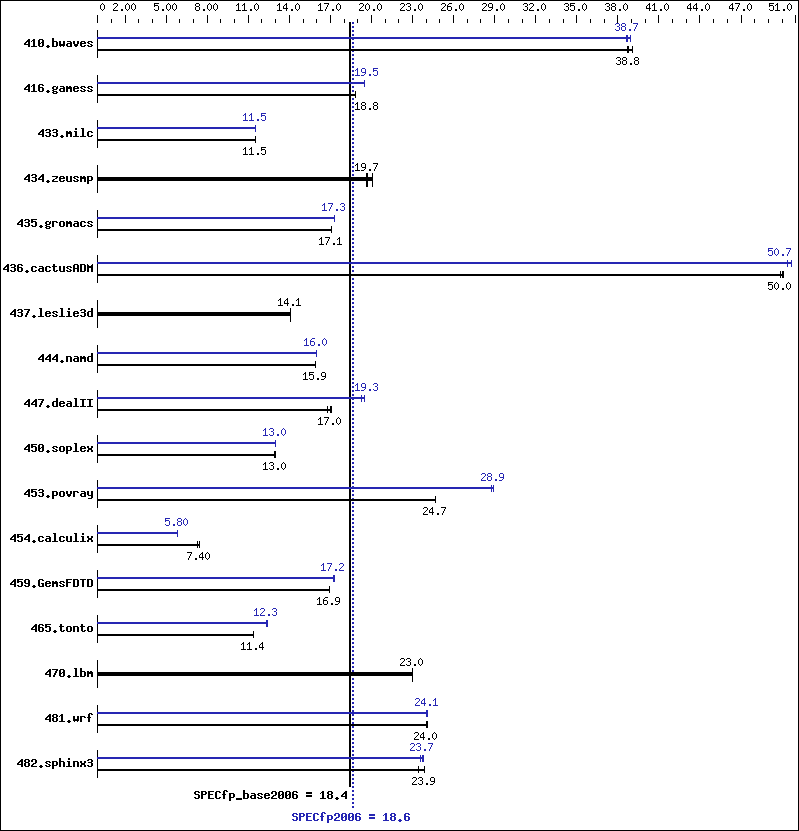

Benchmark results graph
Hardware
CPU Name: AMD Phenom II X4 955
CPU Characteristics:
CPU MHz: 3200
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory: 4 GB (4x1GB DDR2-800 CL5)
Disk Subsystem: Seagate 320 GB SATA, 7200RPM
Other Hardware: None
Software
Operating System: Windows Vista Ultimate w/ SP1 (64-bit)
Compiler: Intel C++ Compiler Professional 11.0 for IA32
Build 20080930 Package ID: w_cproc_p_11.0.054
Intel Visual Fortran Compiler Professional 11.0
for IA32
Build 20080930 Package ID: w_cprof_p_11.0.054
Microsoft Visual Studio 2008 (for libraries)
Auto Parallel: Yes
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: SmartHeap Library Version 8.1 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 350 38.8  348 39.1  351 38.7  351 38.7  352 38.6  349 38.9
416.gamess 1039 18.8  1039 18.8  1040 18.8  1003 19.5  1004 19.5  1003 19.5
433.milc 800 11.5  800 11.5  800 11.5  800 11.5  800 11.5  800 11.5
434.zeusmp 461 19.7  465 19.6  453 20.1  461 19.7  465 19.6  453 20.1
435.gromacs 418 17.1  418 17.1  418 17.1  412 17.3  412 17.3  412 17.3
436.cactusADM 240 49.9  239 50.1  239 50.0  237 50.4  236 50.7  236 50.7
437.leslie3d 666 14.1  667 14.1  665 14.1  666 14.1  667 14.1  665 14.1
444.namd 505 15.9  505 15.9  505 15.9  502 16.0  502 16.0  502 16.0
447.dealII 683 16.8  669 17.1  674 17.0  593 19.3  587 19.5  592 19.3
450.soplex 645 12.9  642 13.0  644 13.0  642 13.0  642 13.0  641 13.0
453.povray 215 24.7  215 24.7  215 24.7  185 28.8  184 28.9  184 28.9
454.calculix 1123 7.30 1120 7.40 1121 7.40 1430 5.80 1430 5.80 1431 5.80
459.GemsFDTD 626 16.9  627 16.9  627 16.9  617 17.2  614 17.3  615 17.2
465.tonto 864 11.4  865 11.4  863 11.4  797 12.3  797 12.4  797 12.3
470.lbm 598 23.0  598 23.0  598 23.0  598 23.0  598 23.0  598 23.0
481.wrf 464 24.1  465 24.0  465 24.0  465 24.0  463 24.1  464 24.1
482.sphinx3 832 23.4  816 23.9  816 23.9  821 23.7  825 23.6  819 23.8

General Notes

 Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply
 Binaries were built on Windows Vista Ultimate (32-bit)
 OMP_NUM_THREADS set to number of logical processors as seen by the OS
 KMP_AFFINITY set to physical,0

Base Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qc99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 /arch:SSE2   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   /F1000000000

C++ benchmarks:

 /arch:SSE2   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   -Qcxx-features   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 /arch:SSE2   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   /F1000000000

Benchmarks using both Fortran and C:

 /arch:SSE2   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   /F1000000000

Peak Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qc99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qc99   ifort

Peak Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

433.milc:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   /F1000000000
470.lbm:  basepeak = yes
482.sphinx3:  /arch:SSE2   -Qipo   -O3   -Qprec-div-   -Qunroll2   /F1000000000

C++ benchmarks:

444.namd:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
447.dealII:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qopt-prefetch   -Qansi-alias   -Qscalar-rep-   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
450.soplex:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
453.povray:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qansi-alias   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  /arch:SSE2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qparallel   /F1000000000
416.gamess:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F1000000000
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qopt-prefetch   -Qparallel   /F1000000000
465.tonto:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto   /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
436.cactusADM:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qopt-prefetch   -Qparallel   /F1000000000
454.calculix:  /arch:SSE2   -Qipo   -O3   -Qprec-div-   /F1000000000
481.wrf:  /arch:SSE2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qparallel   /F1000000000

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-win32-revA.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-win32-revA.xml.
