SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM System x3650 M2 (Intel Xeon X5560)

SPECfp®2006 = 39.0

CPU2006 license: 11 Test date: May-2009
Test sponsor: IBM Corporation Hardware Availability: Apr-2009
Tested by: IBM Corporation Software Availability: Feb-2009

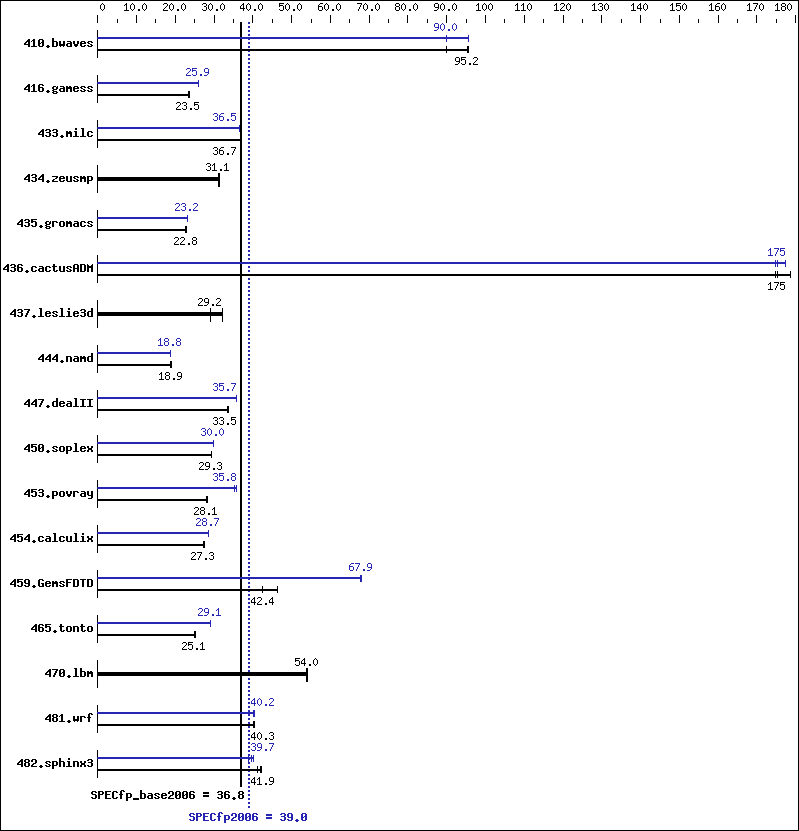

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5560
CPU Characteristics: Intel Turbo Boost Technology up to 3.20 GHz
CPU MHz: 2800
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 24 GB (6 x 4 GB PC3-10600R)
Disk Subsystem: 1 x 73 GB SAS, 15000 RPM
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64)
SP2 with patch Linux kernel 20090119,
Kernel 2.6.16.60-0.34-smp
Compiler: Intel C++ and Fortran Compiler 11.0 for Linux
Build 20090131 Package ID: l_cproc_p_11.0.080,
l_cprof_p_11.0.080
Auto Parallel: Yes
File System: ReiserFS
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: Binutils 2.18.50.0.7.20080502

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 151   90.0 143   95.2 142   95.5 142   95.7 151   89.9 151   90.0
416.gamess 836   23.4 832   23.5 831   23.6 755   25.9 753   26.0 755   25.9
433.milc 250   36.8 250   36.7 250   36.7 252   36.5 252   36.5 252   36.5
434.zeusmp 289   31.5 293   31.1 293   31.1 289   31.5 293   31.1 293   31.1
435.gromacs 312   22.9 314   22.7 313   22.8 309   23.1 308   23.2 307   23.2
436.cactusADM 68.2 175   66.9 179   68.4 175   68.2 175   67.4 177   68.4 175
437.leslie3d 292   32.1 323   29.1 322   29.2 292   32.1 323   29.1 322   29.2
444.namd 423   19.0 425   18.9 425   18.9 429   18.7 427   18.8 427   18.8
447.dealII 341   33.5 341   33.5 340   33.6 319   35.8 321   35.7 321   35.7
450.soplex 285   29.3 285   29.3 285   29.3 279   29.9 278   30.0 278   30.0
453.povray 190   28.1 189   28.2 190   28.0 149   35.8 148   35.8 151   35.3
454.calculix 301   27.4 302   27.3 302   27.3 288   28.6 288   28.7 288   28.7
459.GemsFDTD 229   46.3 250   42.4 250   42.4 156   67.9 156   67.9 156   67.9
465.tonto 392   25.1 393   25.1 392   25.1 338   29.1 338   29.1 338   29.1
470.lbm 255   53.9 254   54.0 254   54.0 255   53.9 254   54.0 254   54.0
481.wrf 277   40.4 277   40.3 278   40.2 276   40.5 278   40.1 278   40.2
482.sphinx3 465   41.9 462   42.2 473   41.2 490   39.7 501   38.9 486   40.1

General Notes

'ulimit -s unlimited' was used to set the stack size to unlimited prior to run
 OMP_NUM_THREADS set to number of cores
 KMP_AFFINITY set to granularity=fine,scatter
 KMP_STACKSIZE set to 200M
 Processor CPU C-States Enabled

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -parallel   -opt-prefetch

C++ benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -parallel   -opt-prefetch

Fortran benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -parallel   -opt-prefetch

Benchmarks using both Fortran and C:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -parallel   -opt-prefetch

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
482.sphinx3:  icc   -m32

C++ benchmarks (except as noted below):

 icpc
450.soplex:  icpc   -m32

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -fno-alias
470.lbm:  basepeak = yes
482.sphinx3:  -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -unroll2

C++ benchmarks:

444.namd:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -fno-alias   -auto-ilp32
447.dealII:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -unroll2   -ansi-alias   -scalar-rep-   -opt-prefetch
450.soplex:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -opt-malloc-options=3
453.povray:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -opt-prefetch   -parallel
416.gamess:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -unroll2   -Ob0   -ansi-alias   -scalar-rep-
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -unroll2   -Ob0   -opt-prefetch   -parallel
465.tonto:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -unroll4   -auto

Benchmarks using both Fortran and C:

435.gromacs:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -opt-prefetch   -auto-ilp32
436.cactusADM:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -unroll2   -opt-prefetch   -parallel   -auto-ilp32
454.calculix:  -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -auto-ilp32
481.wrf:  -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -opt-prefetch   -parallel   -auto-ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-fp-linux64-revA.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-fp-linux64-revA.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Wed Jul 23 01:50:57 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 25 June 2009.
