SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Lenovo Group Limited

Lenovo ThinkServer TD100x(Intel Xeon X5470)

SPECint®2006 = 29.8

CPU2006 license: 9017 Test date: May-2009
Test sponsor: Lenovo Group Limited Hardware Availability: Apr-2009
Tested by: Lenovo Group Limited Software Availability: Apr-2009

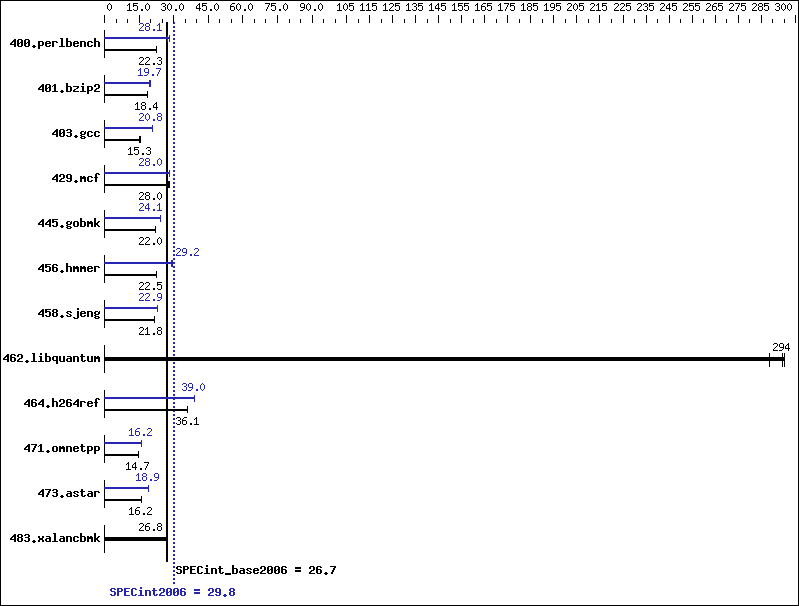

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5470
CPU Characteristics: 1333MHz system bus
CPU MHz: 3333
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 x 2GB 2Rx8 PC2 5300F)

Disk Subsystem: 1 x 146 GB, SAS 15K RPM
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64) SP2
Kernel 2.6.16.60-0.21-smp
Compiler: Intel C++ Compiler 11.0 for Linux
Build 20090318 Package ID: l_cproc_b_11.0.083
Auto Parallel: Yes
File System: ReiserFS
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V8.1
Binutils 2.18.50.0.7.20080502

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 439   22.3 439   22.3 439   22.3 348   28.1 348   28.1 359   27.2
401.bzip2 524   18.4 524   18.4 523   18.5 491   19.7 491   19.6 490   19.7
403.gcc 526   15.3 526   15.3 525   15.3 388   20.8 387   20.8 387   20.8
429.mcf 328   27.8 326   28.0 326   28.0 326   28.0 326   28.0 326   28.0
445.gobmk 477   22.0 476   22.0 477   22.0 435   24.1 435   24.1 435   24.1
456.hmmer 415   22.5 414   22.5 414   22.5 320   29.2 319   29.3 319   29.2
458.sjeng 556   21.8 555   21.8 555   21.8 529   22.9 527   23.0 529   22.9
462.libquantum 71.8 289   70.2 295   70.4 294   71.8 289   70.2 295   70.4 294
464.h264ref 613   36.1 613   36.1 615   36.0 566   39.1 568   39.0 567   39.0
471.omnetpp 424   14.7 425   14.7 426   14.7 387   16.2 387   16.2 387   16.1
473.astar 434   16.2 435   16.1 434   16.2 372   18.9 372   18.9 373   18.8
483.xalancbmk 258   26.8 257   26.9 258   26.8 258   26.8 257   26.9 258   26.8

General Notes

 OMP_NUM_THREADS set to number of processors
 KMP_AFFINITY set to "physical,0"
 Adjacent Cache Line Prefetcher: Enabled

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -parallel   -par-runtime-control   -opt-prefetch

C++ benchmarks:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -opt-prefetch   -Wl,-z,muldefs   -L/cpu2006/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/Compiler/11.0/083/bin/intel64/icc   -L/opt/intel/Compiler/11.0/083/ipp/em64t/lib   -I/opt/intel/Compiler/11.0/083/ipp/em64t/include
456.hmmer:  /opt/intel/Compiler/11.0/083/bin/intel64/icc   -L/opt/intel/Compiler/11.0/083/ipp/em64t/lib   -I/opt/intel/Compiler/11.0/083/ipp/em64t/include

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -ansi-alias   -opt-prefetch
401.bzip2:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -auto-ilp32   -opt-prefetch   -ansi-alias
403.gcc:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -inline-calloc   -opt-malloc-options=3
429.mcf:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -O2   -ipo   -no-prec-div   -ansi-alias
456.hmmer:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -ansi-alias   -auto-ilp32
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll4
462.libquantum:  basepeak = yes
464.h264ref:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/cpu2006/lib -lsmartheap
473.astar:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=routine   -Wl,-z,muldefs   -L/cpu2006/lib -lsmartheap
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-int-linux64-revA.20090710.15.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-int-linux64-revA.20090710.15.xml.
