SPEC® CINT2006 Result

Copyright 2006-2012 Standard Performance Evaluation Corporation

SGI

SGI Altix 4700 Bandwidth System (Dual-Core
Intel Itanium 2 9040 1.60GHz/18M)

SPECint®_rate2006 = Not Run

CPU2006 license: 4 Test date: Jul-2009
Test sponsor: SGI Hardware Availability: Nov-2007
Tested by: SGI Software Availability: Jul-2009

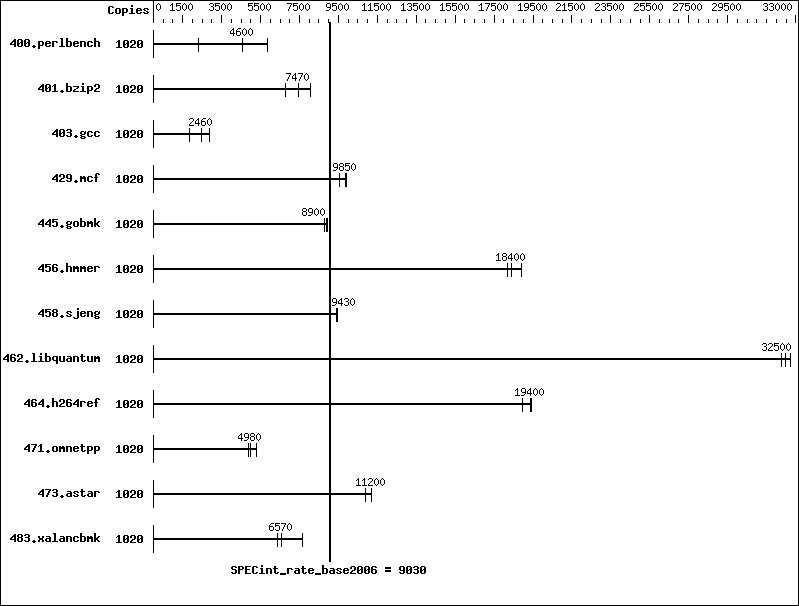

Benchmark results graph
Hardware
CPU Name: Dual-Core Intel Itanium 2 9040
CPU Characteristics: 533MHz FSB
CPU MHz: 1594
FPU: Integrated
CPU(s) enabled: 1024 cores, 512 chips, 2 cores/chip
CPU(s) orderable: 8 to 512 blades with 1 chip per blade
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 1 MB I + 256 KB D on chip per core
L3 Cache: 9 MB I+D on chip per core
Other Cache: None
Memory: 4 TB (8*1GB DDR2-400 DIMMS per blade)
Disk Subsystem: 279 TB RAID5
1024 x 300 GB FC (Hitachi Ultrastar 10k rpm)
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (ia64) SP2,
Kernel 2.6.16.60-0.35.PTF.352893.0-default
Compiler: Intel C++ Compiler for Linux 11.1
(Build 20090630)
Auto Parallel: No
File System: xfs
System State: Multi-user, run level 3
Base Pointers: 64-bit
Peak Pointers: Not Applicable
Other Software: MicroQuill SmartHeap Library 8
(www.microquill.com)
SGI ProPack 6 Service Pack 2

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 1020 1702 5850 2168 4600 4355 2290
401.bzip2 1020 1452 6780 1220 8070 1319 7470
403.gcc 1020 4426 1860 2862 2870 3340 2460
429.mcf 1020 944 9850 936 9940 973 9560
445.gobmk 1020 1202 8900 1194 8960 1214 8810
456.hmmer 1020 523 18200 518 18400 503 18900
458.sjeng 1020 1308 9440 1316 9380 1309 9430
462.libquantum 1020 646 32700 651 32500 655 32300
464.h264ref 1020 1162 19400 1166 19400 1190 19000
471.omnetpp 1020 1308 4870 1203 5300 1281 4980
473.astar 1020 640 11200 641 11200 656 10900
483.xalancbmk 1020 921 7640 1109 6350 1071 6570

Submit Notes

The config file option 'submit' was used.

General Notes


 Processes were bound to CPUs using dplace.
 limit stacksize unlimited
 System was configured with 4-cpu boot cpuset
 echo 0 > /dev/cpuset/memory_spread_page
 runspec was launched from root cpuset

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_IA64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
471.omnetpp:  -DSPEC_CPU_LP64
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast   -fp-relaxed   -no-opt-prefetch-initial-values   -ansi-alias

C++ benchmarks:

 -fast   -fp-relaxed   -no-opt-prefetch-initial-values   -ansi-alias   -Wl,-z,muldefs   libsmartheapC64.a   libsmartheap64.a

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.1-ipf.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.1-ipf.xml.
