SPEC® CFP2006 Result

Copyright 2006-2012 Standard Performance Evaluation Corporation

Dell Inc.

Dell Precision T3500 (Intel Xeon W3580, 3.33 GHz)

SPECfp®2006 = 38.6

CPU2006 license: 55 Test date: Jul-2009
Test sponsor: Dell Inc. Hardware Availability: Aug-2009
Tested by: Dell Inc. Software Availability: Feb-2009

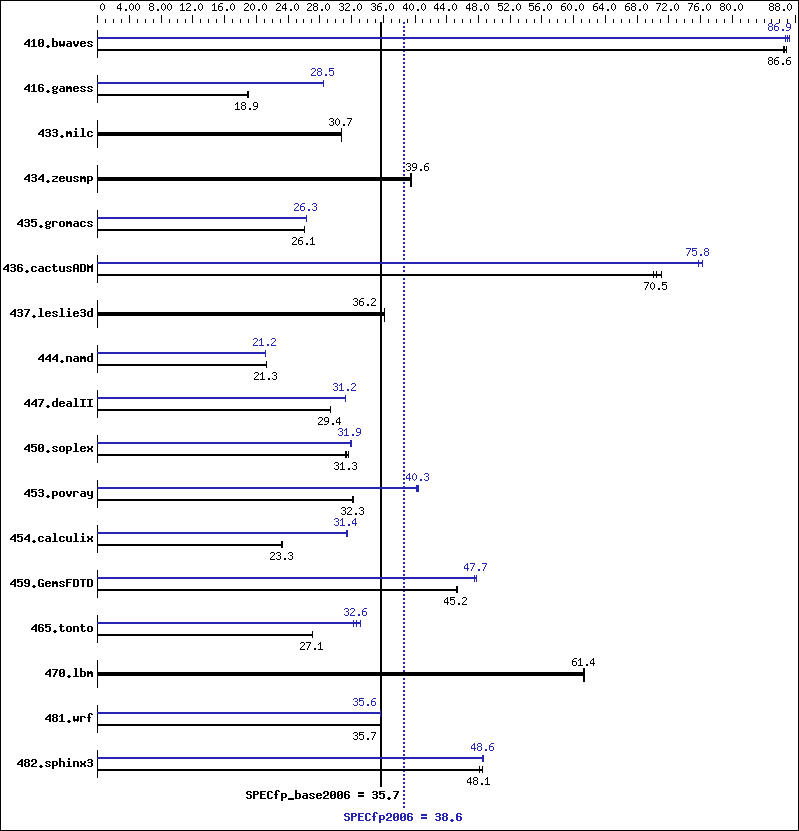

Benchmark results graph
Hardware
CPU Name: Intel Xeon W3580
CPU Characteristics: Intel Turbo Boost Technology up to 3.60 GHz
CPU MHz: 3333
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 24 GB (6x4 GB PC3-10600E)
Disk Subsystem: 1 x 80GB SATA 7200 RPM
Other Hardware: None
Software
Operating System: Windows Vista Ultimate SP1 (64-bit)
Compiler: Intel C++ Compiler for Intel 64, Version 11.0
Build 20090131 Package ID: w_cproc_p_11.0.072
Intel Visual Fortran Compiler for Intel 64,
Version 11.0
Build 20090131 Package ID: w_cprof_p_11.0.072
Microsoft Visual Studio 2008 SP1
Auto Parallel: Yes
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 8.1 for x64

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 157 86.8 157 86.5 157 86.6 156 87.2 156 86.9 157 86.7
416.gamess 1034 18.9 1032 19.0 1034 18.9 689 28.4 688 28.5 688 28.5
433.milc 299 30.7 299 30.7 299 30.7 299 30.7 299 30.7 299 30.7
434.zeusmp 231 39.4 230 39.6 230 39.6 231 39.4 230 39.6 230 39.6
435.gromacs 274 26.1 274 26.1 274 26.1 272 26.3 272 26.3 271 26.3
436.cactusADM 171 70.1 168 71.1 170 70.5 157 76.3 158 75.8 158 75.7
437.leslie3d 260 36.2 260 36.2 260 36.2 260 36.2 260 36.2 260 36.2
444.namd 377 21.3 376 21.3 376 21.3 378 21.2 378 21.2 378 21.2
447.dealII 389 29.4 389 29.4 389 29.4 367 31.2 367 31.2 367 31.2
450.soplex 267 31.2 266 31.3 264 31.6 261 31.9 261 31.9 261 32.0
453.povray 166 32.1 165 32.3 165 32.3 132 40.4 132 40.2 132 40.3
454.calculix 355 23.3 355 23.3 355 23.2 263 31.4 263 31.4 262 31.5
459.GemsFDTD 234 45.3 235 45.2 235 45.2 222 47.8 223 47.7 223 47.5
465.tonto 363 27.1 363 27.1 363 27.1 304 32.3 298 33.1 302 32.6
470.lbm 224 61.4 224 61.4 224 61.3 224 61.4 224 61.4 224 61.3
481.wrf 313 35.7 313 35.7 314 35.6 314 35.6 314 35.6 314 35.6
482.sphinx3 402 48.5 406 48.1 405 48.1 401 48.6 401 48.6 402 48.5

Platform Notes

 BIOS Settings
   Hyperthreading: ENABLE

General Notes

 Binaries were built on Windows Vista Business (64-bit)

Base Compiler Invocation

C benchmarks:

 icl   -Qvc9   -Qstd=c99

C++ benchmarks:

 icl   -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc9   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64   /assume:underscore
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -QxSSE4.2   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   /F512000000

C++ benchmarks:

 -QxSSE4.2   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   -Qcxx_features   /F512000000   shlw64mt.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -QxSSE4.2   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   /F1000000000

Benchmarks using both Fortran and C:

 -QxSSE4.2   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   /F1000000000

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc9   -Qstd=c99

C++ benchmarks:

 icl   -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc9   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  basepeak = yes
482.sphinx3:  -QxSSE4.2   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qunroll2   /F512000000

C++ benchmarks:

444.namd:  -Qprof_gen(pass 1)   -QxSSE4.2(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   /F512000000   shlw64mt.lib    -link /FORCE:MULTIPLE
447.dealII:  -Qprof_gen(pass 1)   -QxSSE4.2(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qopt-prefetch   -Qansi-alias   -Qscalar-rep-   /F512000000   shlw64mt.lib    -link /FORCE:MULTIPLE
450.soplex:  -Qprof_gen(pass 1)   -QxSSE4.2   -Qauto-ilp32   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   /F512000000   shlw64mt.lib    -link /FORCE:MULTIPLE
453.povray:  -Qprof_gen(pass 1)   -QxSSE4.2(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qansi-alias   /F512000000   shlw64mt.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -QxSSE4.2   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qparallel   /F1000000000
416.gamess:  -Qprof_gen(pass 1)   -QxSSE4.2(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F1000000000
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -Qprof_gen(pass 1)   -QxSSE4.2(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qopt-prefetch   -Qparallel   /F1000000000
465.tonto:  -Qprof_gen(pass 1)   -QxSSE4.2(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto   /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -QxSSE4.2(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
436.cactusADM:  -Qprof_gen(pass 1)   -QxSSE4.2(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qopt-prefetch   -Qparallel   /F1000000000
454.calculix:  -QxSSE4.2   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   /F1000000000
481.wrf:  -QxSSE4.2   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qparallel   /F1000000000

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/dell.flags.ic11.0.win.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/dell.flags.ic11.0.win.xml.
