SPEC® CFP2006 Result

Copyright 2006-2012 Standard Performance Evaluation Corporation

Dell Inc.

Dell Precision T3500 (Intel Xeon W3580, 3.33 GHz)

CPU2006 license: 55 Test date: Jul-2009
Test sponsor: Dell Inc. Hardware Availability: Aug-2009
Tested by: Dell Inc. Software Availability: Feb-2009

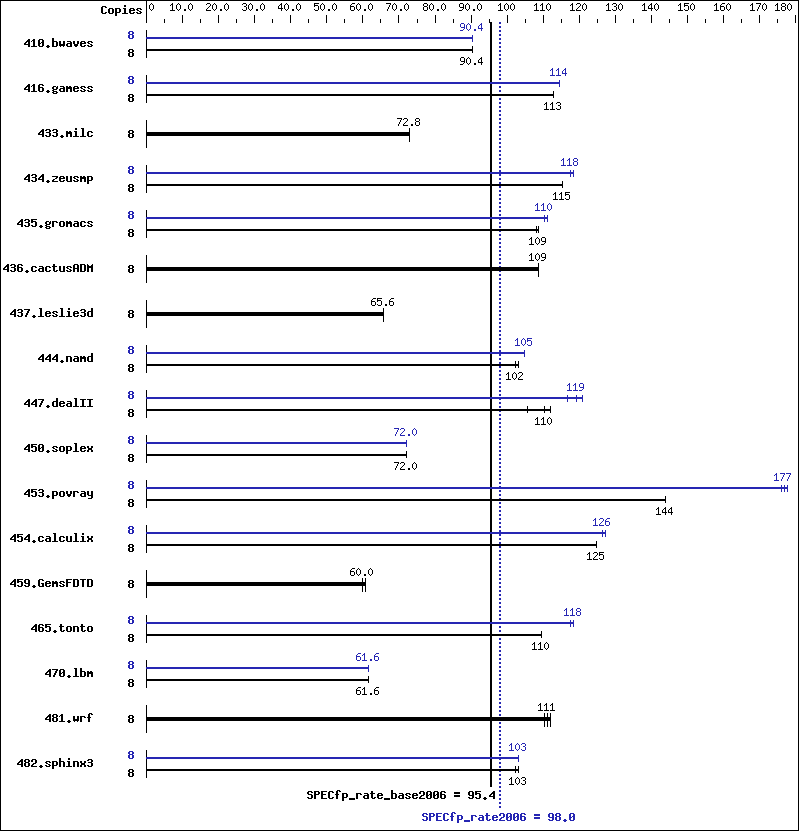

Benchmark results graph
Hardware
CPU Name: Intel Xeon W3580
CPU Characteristics: Intel Turbo Boost Technology up to 3.60 GHz
CPU MHz: 3333
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 24 GB (6x4 GB PC3-10600E)
Disk Subsystem: 1 x 80GB SATA 7200 RPM
Other Hardware: None
Software
Operating System: Windows Vista Ultimate SP1 (64-bit)
Compiler: Intel C++ Compiler for Intel 64, Version 11.0
Build 20090131 Package ID: w_cproc_p_11.0.072
Intel Visual Fortran Compiler for Intel 64,
Version 11.0
Build 20090131 Package ID: w_cprof_p_11.0.072
Microsoft Visual Studio 2008 SP1
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 8.1 for x64

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 1207 90.4 1205 90.4 1206 90.4 8 1206 90.4 1205 90.4 1206 90.4
416.gamess 8 1392 113   1391 113   1388 113   8 1372 114   1372 114   1372 114
433.milc 8 1007 72.8 1014 72.8 1013 72.8 8 1007 72.8 1014 72.8 1013 72.8
434.zeusmp 8 633 115   630 115   633 115   8 618 118   618 118   616 118
435.gromacs 8 526 109   528 108   527 109   8 515 111   516 110   517 110
436.cactusADM 8 881 109   880 109   878 109   8 881 109   880 109   878 109
437.leslie3d 8 1150 65.6 1151 65.6 1151 65.6 8 1150 65.6 1151 65.6 1151 65.6
444.namd 8 625 102   625 102   624 103   8 612 105   613 105   613 105
447.dealII 8 829 110   866 106   816 112   8 757 121   765 119   783 117
450.soplex 8 932 72.0 931 72.0 931 72.0 8 929 72.0 929 72.0 928 72.0
453.povray 8 295 144   296 144   295 144   8 242 176   241 177   240 178
454.calculix 8 528 125   528 125   528 125   8 523 126   521 127   521 126
459.GemsFDTD 8 1405 60.8 1406 60.0 1407 60.0 8 1405 60.8 1406 60.0 1407 60.0
465.tonto 8 717 110   717 110   718 110   8 667 118   664 118   672 118
470.lbm 8 1785 61.6 1785 61.6 1785 61.6 8 1785 61.6 1785 61.6 1785 61.6
481.wrf 8 810 110   803 111   801 112   8 810 110   803 111   801 112
482.sphinx3 8 1517 102   1514 103   1516 103   8 1516 103   1515 103   1514 103

Platform Notes

 BIOS Settings
   Hyperthreading: ENABLE

General Notes

 Binaries were built on Windows Vista Business (64-bit)

Base Compiler Invocation

C benchmarks:

 icl   -Qvc9   -Qstd=c99

C++ benchmarks:

 icl   -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc9   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64   /assume:underscore
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -QxSSE4.2   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000

C++ benchmarks:

 -QxSSE4.2   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qcxx_features   /F512000000   shlw64mt.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -QxSSE4.2   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000

Benchmarks using both Fortran and C:

 -QxSSE4.2   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc9   -Qstd=c99

C++ benchmarks:

 icl   -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc9   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  -QxSSE4.1   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000
482.sphinx3:  -QxSSE4.2   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qunroll2   /F512000000

C++ benchmarks:

444.namd:  -Qprof_gen(pass 1)   -QxSSE4.2(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   /F512000000   shlw64mt.lib    -link /FORCE:MULTIPLE
447.dealII:  -Qprof_gen(pass 1)   -QxSSE4.2(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   -Qscalar-rep-   /F512000000   shlw64mt.lib    -link /FORCE:MULTIPLE
450.soplex:  -Qprof_gen(pass 1)   -QxSSE4.2   -Qauto-ilp32   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   /F512000000   shlw64mt.lib    -link /FORCE:MULTIPLE
453.povray:  -Qprof_gen(pass 1)   -QxSSE4.2(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qansi-alias   /F512000000   shlw64mt.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -QxSSE4.2   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
416.gamess:  -Qprof_gen(pass 1)   -QxSSE4.2(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F1000000000
434.zeusmp:  -Qprof_gen(pass 1)   -QxSSE4.2   -Qauto-ilp32   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   /F1000000000
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -Qprof_gen(pass 1)   -QxSSE4.2(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto   /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -QxSSE4.2(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
436.cactusADM:  basepeak = yes
454.calculix:  -QxSSE4.2   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   /F1000000000
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/dell.flags.ic11.0.win.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/dell.flags.ic11.0.win.xml.
