SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Supermicro

Motherboard H8DMT+, AMD Opteron 2439 SE

SPECfp®2006 = 22.9

CPU2006 license: 001176 Test date: Sep-2009
Test sponsor: Supermicro Hardware Availability: Jun-2009
Tested by: Supermicro Software Availability: Apr-2009

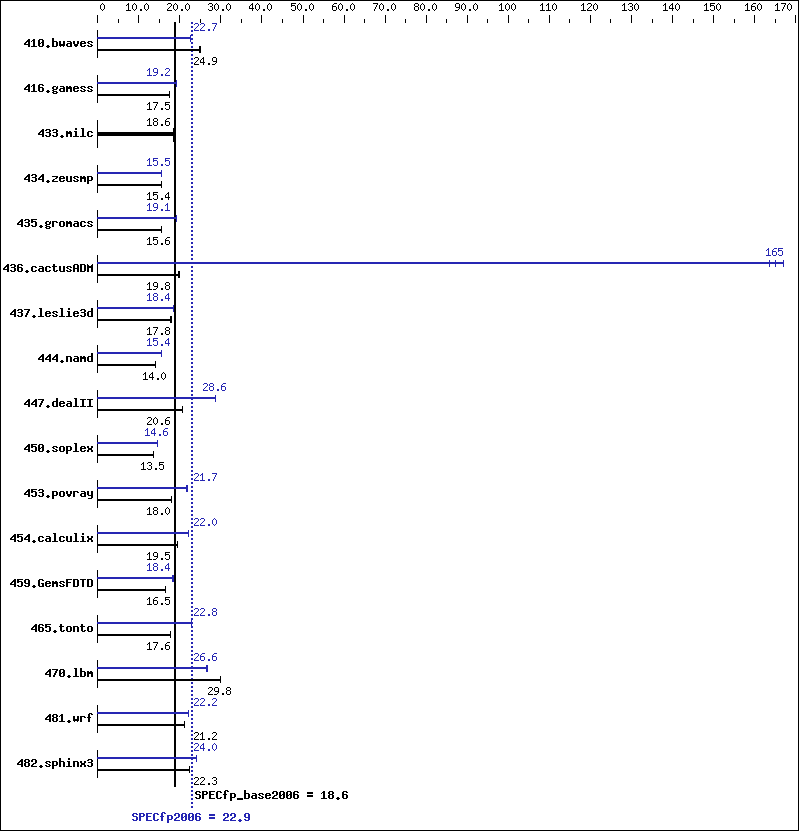

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2439 SE
CPU Characteristics:
CPU MHz: 2800
FPU: Integrated
CPU(s) enabled: 12 cores, 2 chips, 6 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (8x4 GB, DDR2-800, CL5, Reg, Dual Rank)
Disk Subsystem: 1 x 80 GB SATA, 5400 RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 5.3,
Advanced Platform, Kernel 2.6.18-128.el5
Compiler: PGI Server Complete Version 8.0
x86 Open64 4.2.2 Compiler Suite (from AMD)
Auto Parallel: Yes
File System: ext3
System State: Run level 3 (Full multiuser with network)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: binutils 2.18

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 547 24.8 544 25.0 547 24.9 599   22.7 600   22.7 599   22.7
416.gamess 1116 17.5 1114 17.6 1116 17.5 1020   19.2 1019   19.2 1019   19.2
433.milc 494 18.6 493 18.6 496 18.5 494   18.6 493   18.6 496   18.5
434.zeusmp 589 15.4 590 15.4 590 15.4 586   15.5 586   15.5 586   15.5
435.gromacs 458 15.6 459 15.6 458 15.6 373   19.1 373   19.1 373   19.1
436.cactusADM 605 19.8 607 19.7 602 19.8 72.4 165   73.0 164   71.5 167
437.leslie3d 529 17.8 526 17.9 528 17.8 510   18.4 511   18.4 510   18.4
444.namd 572 14.0 573 14.0 573 14.0 519   15.4 520   15.4 519   15.5
447.dealII 555 20.6 555 20.6 555 20.6 400   28.6 399   28.6 400   28.6
450.soplex 617 13.5 617 13.5 617 13.5 571   14.6 571   14.6 571   14.6
453.povray 296 18.0 297 17.9 296 18.0 245   21.7 245   21.7 244   21.8
454.calculix 424 19.4 424 19.5 424 19.5 374   22.1 374   22.0 374   22.0
459.GemsFDTD 644 16.5 644 16.5 645 16.4 581   18.3 577   18.4 576   18.4
465.tonto 558 17.6 559 17.6 558 17.6 431   22.8 430   22.9 431   22.8
470.lbm 461 29.8 461 29.8 461 29.8 517   26.6 517   26.6 516   26.6
481.wrf 528 21.2 528 21.1 528 21.2 504   22.2 504   22.2 504   22.2
482.sphinx3 873 22.3 874 22.3 873 22.3 814   24.0 812   24.0 809   24.1

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set vm/nr_hugepages=5400 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "450"
LD_LIBRARY_PATH = "/usr/cpu2006/amd0905is-libs/64:/usr/cpu2006/amd0905is-libs/32"
NCPUS = "12"
PGI_HUGE_PAGES = "450"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

System can be built with CSE-808T-980(B/V) Revision A4

Product description can be obtained at:
http://www.supermicro.com/Aplus/motherboard/Opteron2000/MCP55/H8DMT+.cfm

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fastsse   -Msmartalloc=huge   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp shanghai-64   -Bstatic_pgi

C++ benchmarks:

 -fastsse   -Msmartalloc=huge   -Mfprelaxed   --zc_eh   -Mipa=fast   -Mipa=inline   -tp shanghai-64   -Bstatic_pgi

Fortran benchmarks:

 -fastsse   -Msmartalloc=huge   -Mfprelaxed   -Mvect=short   -Mipa=fast   -Mipa=inline   -tp shanghai-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

 -fastsse   -Msmartalloc=huge   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp shanghai-64   -Mvect=short   -Bstatic_pgi

Base Other Flags

C benchmarks:

 -Mipa=jobs:4

C++ benchmarks:

 -Mipa=jobs:4

Fortran benchmarks:

 -Mipa=jobs:4

Benchmarks using both Fortran and C:

 -Mipa=jobs:4

Peak Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks (except as noted below):

 openCC
444.namd:  pgcpp

Fortran benchmarks (except as noted below):

 openf95
410.bwaves:  pgf95
434.zeusmp:  pgf95
437.leslie3d:  pgf95

Benchmarks using both Fortran and C (except as noted below):

 pgcc   pgf95
435.gromacs:  opencc   openf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  -fastsse   -Msmartalloc=huge   -Mprefetch=t0   -Mloop32   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp shanghai-64   -Bstatic_pgi
482.sphinx3:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -fastsse   -Mfprelaxed   -Msmartalloc   -tp shanghai-64   -Bstatic_pgi

C++ benchmarks:

444.namd:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -fastsse   -Munroll=n:4   -Munroll=m:8   -Msmartalloc=huge   -Mnodepchk   -Mfprelaxed   --zc_eh   -tp shanghai-64   -Bstatic_pgi
447.dealII:  -march=barcelona   -Ofast   -static   -INLINE:aggressive=on   -LNO:opt=0   -Wf,-fno-exceptions   -m32   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -HP:bdt=2m:heap=2m   -GRA:unspill=on   -CG:cmp_peep=on   -TENV:frame_pointer=off
450.soplex:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -INLINE:aggressive=on   -OPT:IEEE_arith=3   -OPT:IEEE_NaN_Inf=off   -OPT:fold_unsigned_relops=on   -OPT:malloc_alg=1   -CG:load_exe=0   -fno-exceptions   -m32   -HP:bdt=2m
453.povray:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -INLINE:aggressive=on   -HP:bdt=2m:heap=2m

Fortran benchmarks:

410.bwaves:  -fastsse   -Msmartalloc   -Mprefetch=nta   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp shanghai-64   -Bstatic_pgi
416.gamess:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O2   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256   -HP:bdt=2m:heap=2m
434.zeusmp:  -fastsse   -Mfprelaxed   -Mprefetch=distance:8   -Mprefetch=t0   -Msmartalloc=huge   -Msmartalloc=hugebss   -Mipa=fast   -Mipa=inline   -tp shanghai-64   -Bstatic_pgi
437.leslie3d:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -fastsse   -Mvect=fuse   -Msmartalloc=huge   -Mprefetch=distance:8   -Mprefetch=t0   -Mfprelaxed   -tp shanghai-64   -Bstatic_pgi
459.GemsFDTD:  -march=barcelona   -Ofast   -LNO:fission=2   -LNO:simd=2   -LNO:prefetch_ahead=1   -CG:load_exe=0   -HP
465.tonto:  -march=barcelona   -Ofast   -OPT:alias=no_f90_pointer_alias   -LNO:blocking=off   -CG:load_exe=1   -IPA:plimit=525   -HP

Benchmarks using both Fortran and C:

435.gromacs:  -march=barcelona   -Ofast   -OPT:rsqrt=2   -HP:bdt=2m:heap=2m
436.cactusADM:  -fastsse   -Mconcur   -Msmartalloc=huge   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp shanghai-64   -Bstatic_pgi
454.calculix:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -fastsse   -Mvect=short   -Msmartalloc=huge   -Mprefetch=t0   -Mpre   -Mfprelaxed   -tp shanghai-64   -Bstatic_pgi
481.wrf:  -fastsse   -Mvect=noaltcode   -Msmartalloc=huge   -Mprefetch=distance:8   -Mfprelaxed   -tp shanghai-64   -Bstatic_pgi

Peak Other Flags

C benchmarks:

 -Mipa=jobs:4(pass 2)

C++ benchmarks:

444.namd:  -Mipa=jobs:4(pass 2)

Fortran benchmarks:

410.bwaves:  -Mipa=jobs:4
434.zeusmp:  -Mipa=jobs:4
437.leslie3d:  -Mipa=jobs:4(pass 2)

Benchmarks using both Fortran and C:

436.cactusADM:  -Mipa=jobs:4
454.calculix:  -Mipa=jobs:4(pass 2)

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/amd-platform.20090710.html,
http://www.spec.org/cpu2006/flags/pgi80_linux_flags.20090914.html,
http://www.spec.org/cpu2006/flags/x86-open64-4.2.2-flags-revE.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/amd-platform.20090710.xml,
http://www.spec.org/cpu2006/flags/pgi80_linux_flags.20090914.xml,
http://www.spec.org/cpu2006/flags/x86-open64-4.2.2-flags-revE.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Wed Jul 23 02:41:49 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 30 September 2009.
