SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

NEC Corporation

Express5800/iR110a-1
(Intel Xeon L3360)

CPU2006 license: 9006 Test date: Sep-2009
Test sponsor: NEC Corporation Hardware Availability: May-2009
Tested by: NEC Corporation Software Availability: Nov-2008

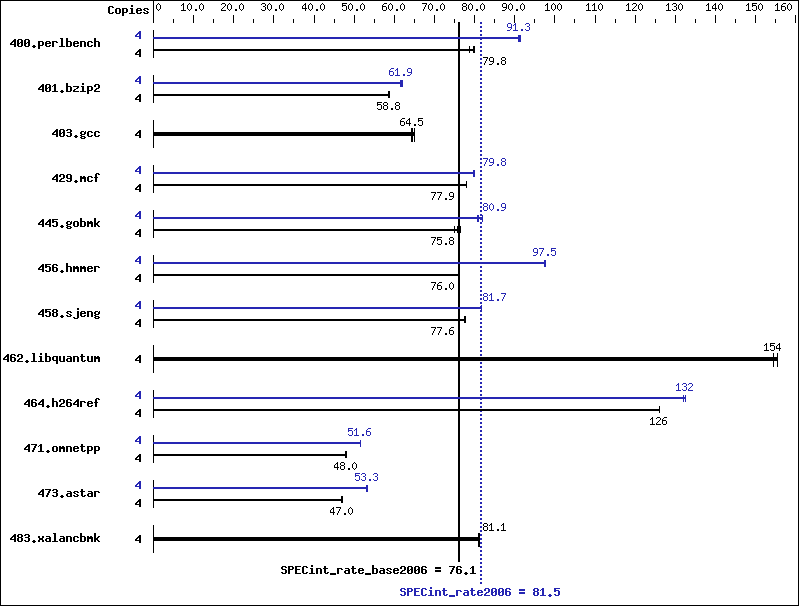

Benchmark results graph
Hardware
CPU Name: Intel Xeon L3360
CPU Characteristics: 1333 MHz system bus
CPU MHz: 2833
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 8 GB (4x2 GB PC2-6400E, 2 rank, CL6-6-6, ECC)
Disk Subsystem: 1x160 GB SATA2, 7200 RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP2,
Kernel 2.6.16.60-0.21-smp
Compiler: Intel C++ Compiler Professional 11.0 for Linux
Build 20080930 Package ID: l_cproc_p_11.0.069
Auto Parallel: No
File System: ReiserFS
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 8.1
Binutils 2.18.50.0.7.20080502

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 489 79.9 490 79.8 496 78.8 4 428 91.3 427 91.5 430 91.0
401.bzip2 4 658 58.6 656 58.9 656 58.8 4 627 61.6 624 61.9 623 62.0
403.gcc 4 496 64.9 499 64.5 501 64.3 4 496 64.9 499 64.5 501 64.3
429.mcf 4 469 77.9 468 78.0 468 77.9 4 457 79.9 458 79.6 457 79.8
445.gobmk 4 549 76.4 553 75.8 559 75.1 4 519 80.9 512 82.0 520 80.7
456.hmmer 4 491 76.0 492 75.9 491 76.1 4 383 97.5 383 97.5 382 97.7
458.sjeng 4 623 77.7 624 77.6 625 77.5 4 593 81.7 593 81.6 592 81.7
462.libquantum 4 534 155   537 154   537 154   4 534 155   537 154   537 154
464.h264ref 4 702 126   702 126   702 126   4 668 132   668 133   670 132
471.omnetpp 4 521 48.0 521 48.0 521 48.0 4 484 51.6 485 51.6 485 51.6
473.astar 4 597 47.0 599 46.9 597 47.0 4 528 53.2 526 53.3 526 53.4
483.xalancbmk 4 340 81.1 340 81.1 341 80.9 4 340 81.1 340 81.1 341 80.9

Submit Notes

The config file option 'submit' was used.
 taskset was used to bind processes to cores

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

Platform Notes

Bios settings:
Hardware Prefetcher:             Disabled
Adjacent Cache Line Prefetch:    Disabled

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -inline-calloc   -opt-malloc-options=3   -opt-prefetch

C++ benchmarks:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -opt-prefetch   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/Compiler/11.0/069/bin/intel64/icc   -L/opt/intel/Compiler/11.0/069/ipp/em64t/lib   -I/opt/intel/Compiler/11.0/069/ipp/em64t/include
456.hmmer:  /opt/intel/Compiler/11.0/069/bin/intel64/icc   -L/opt/intel/Compiler/11.0/069/ipp/em64t/lib   -I/opt/intel/Compiler/11.0/069/ipp/em64t/include

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -ansi-alias   -opt-prefetch
401.bzip2:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch   -ansi-alias
403.gcc:  basepeak = yes
429.mcf:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -O2   -ipo   -no-prec-div   -ansi-alias
456.hmmer:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -ansi-alias
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll4
462.libquantum:  basepeak = yes
464.h264ref:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap
473.astar:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=routine   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-int-linux64-revG.html,
http://www.spec.org/cpu2006/flags/NEC-Intel-Linux-Settings-flags-revE.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-int-linux64-revG.xml,
http://www.spec.org/cpu2006/flags/NEC-Intel-Linux-Settings-flags-revE.xml.
