CPU2006 license: | 001176 | Test date: | Jul-2009 |
---|---|---|---|
Test sponsor: | Supermicro | Hardware Availability: | Jun-2009 |
Tested by: | Supermicro | Software Availability: | Apr-2009 |
Hardware | |
---|---|
CPU Name: | AMD Opteron 2423 HE |
CPU Characteristics: | |
CPU MHz: | 2000 |
FPU: | Integrated |
CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 64 KB I + 64 KB D on chip per core |
Secondary Cache: | 512 KB I+D on chip per core |
L3 Cache: | 6 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 32 GB (8x4 GB, DDR2-800, CL5, Reg, Dual Rank) |
Disk Subsystem: | 1 x 500 GB SATA, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 5.3, Advanced Platform, Kernel 2.6.18-128.el5 |
Compiler: | PGI Server Complete Version 8.0 x86 Open64 4.2.2 Compiler Suite (from AMD) |
Auto Parallel: | Yes |
File System: | ext3 |
System State: | Run level 2 (Local multiuser without remote network) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | binutils 2.18 |

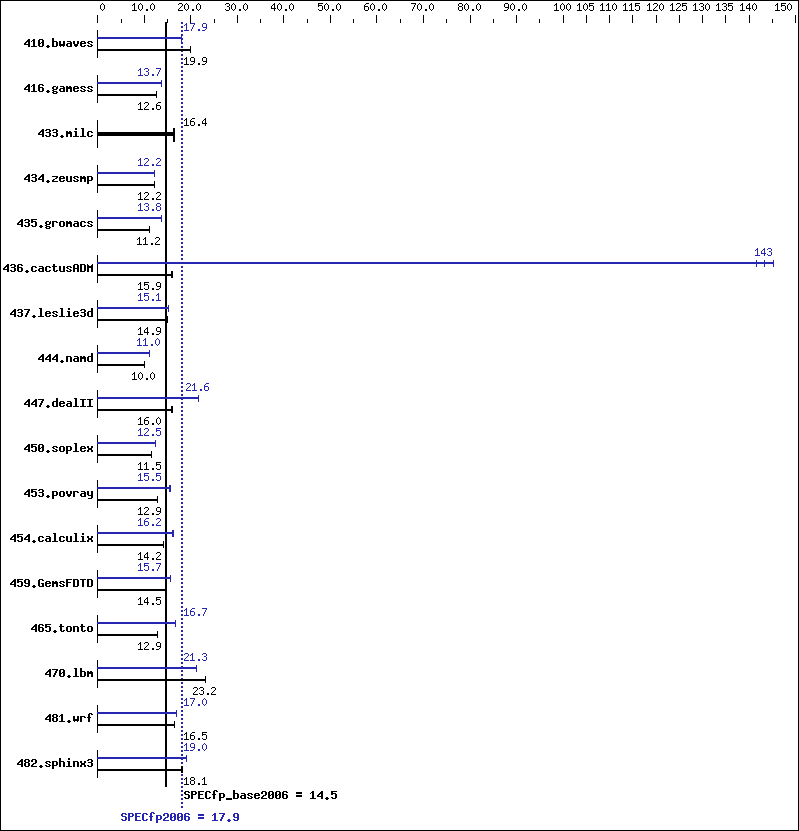

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
410.bwaves | 685 | 19.9 | 684 | 19.9 | 682 | 19.9 | 759 | 17.9 | 758 | 17.9 | 758 | 17.9 |
416.gamess | 1553 | 12.6 | 1556 | 12.6 | 1555 | 12.6 | 1432 | 13.7 | 1429 | 13.7 | 1428 | 13.7 |
433.milc | 562 | 16.3 | 560 | 16.4 | 560 | 16.4 | 562 | 16.3 | 560 | 16.4 | 560 | 16.4 |
434.zeusmp | 744 | 12.2 | 743 | 12.2 | 744 | 12.2 | 744 | 12.2 | 744 | 12.2 | 744 | 12.2 |
435.gromacs | 638 | 11.2 | 638 | 11.2 | 639 | 11.2 | 519 | 13.8 | 519 | 13.8 | 519 | 13.8 |
436.cactusADM | 752 | 15.9 | 754 | 15.8 | 749 | 16.0 | 84.4 | 142 | 83.4 | 143 | 82.3 | 145 |
437.leslie3d | 630 | 14.9 | 632 | 14.9 | 630 | 14.9 | 622 | 15.1 | 621 | 15.1 | 620 | 15.1 |
444.namd | 801 | 10.0 | 800 | 10.0 | 799 | 10.0 | 727 | 11.0 | 725 | 11.1 | 726 | 11.0 |
447.dealII | 717 | 16.0 | 717 | 16.0 | 717 | 16.0 | 529 | 21.6 | 529 | 21.6 | 529 | 21.6 |
450.soplex | 723 | 11.5 | 723 | 11.5 | 723 | 11.5 | 669 | 12.5 | 669 | 12.5 | 669 | 12.5 |
453.povray | 414 | 12.9 | 413 | 12.9 | 415 | 12.8 | 342 | 15.5 | 344 | 15.5 | 343 | 15.5 |
454.calculix | 582 | 14.2 | 581 | 14.2 | 580 | 14.2 | 510 | 16.2 | 510 | 16.2 | 509 | 16.2 |
459.GemsFDTD | 732 | 14.5 | 733 | 14.5 | 732 | 14.5 | 677 | 15.7 | 678 | 15.7 | 677 | 15.7 |
465.tonto | 765 | 12.9 | 765 | 12.9 | 768 | 12.8 | 589 | 16.7 | 589 | 16.7 | 589 | 16.7 |
470.lbm | 592 | 23.2 | 592 | 23.2 | 592 | 23.2 | 645 | 21.3 | 645 | 21.3 | 645 | 21.3 |
481.wrf | 677 | 16.5 | 677 | 16.5 | 677 | 16.5 | 657 | 17.0 | 656 | 17.0 | 657 | 17.0 |
482.sphinx3 | 1074 | 18.1 | 1085 | 18.0 | 1074 | 18.1 | 1027 | 19.0 | 1026 | 19.0 | 1025 | 19.0 |
The config file option 'submit' was used. 'numactl' was used to bind copies to the cores. See the configuration file for details.
'ulimit -s unlimited' was used to set environment stack size 'ulimit -l 2097152' was used to set environment locked pages in memory limit Set vm/nr_hugepages=5400 in /etc/sysctl.conf mount -t hugetlbfs nodev /mnt/hugepages
Environment variables set by runspec before the start of the run: HUGETLB_LIMIT = "450" LD_LIBRARY_PATH = "/spec/amd0905is-libs/64:/spec/amd0905is-libs/32" NCPUS = "12" PGI_HUGE_PAGES = "450" The x86 Open64 Compiler Suite is only available from (and supported by) AMD at http://developer.amd.com/cpu/open64. To ensure system stability, a 550W (minimum) ATX power supply [ 4-pin (+12V), 8-pin (+12V) and 24-pin ] are required. Product description can be obtained at: http://www.supermicro.com/Aplus/motherboard/Opteron2000/MCP55/H8DM8-2.cfm
pgcc |
pgcpp |
pgf95 |
pgcc pgf95 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -Mnomain |
436.cactusADM: | -DSPEC_CPU_LP64 -Mnomain |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -Mnomain |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-fastsse -Msmartalloc=huge -Mfprelaxed -Mipa=fast -Mipa=inline -tp shanghai-64 -Bstatic_pgi |
-fastsse -Msmartalloc=huge -Mfprelaxed --zc_eh -Mipa=fast -Mipa=inline -tp shanghai-64 -Bstatic_pgi |
-fastsse -Msmartalloc=huge -Mfprelaxed -Mvect=short -Mipa=fast -Mipa=inline -tp shanghai-64 -Bstatic_pgi |
-fastsse -Msmartalloc=huge -Mfprelaxed -Mipa=fast -Mipa=inline -tp shanghai-64 -Mvect=short -Bstatic_pgi |
-Mipa=jobs:4 |
-Mipa=jobs:4 |
-Mipa=jobs:4 |
-Mipa=jobs:4 |
pgcc |
openCC | |
444.namd: | pgcpp |
openf95 | |
410.bwaves: | pgf95 |
434.zeusmp: | pgf95 |
437.leslie3d: | pgf95 |
pgcc pgf95 | |
435.gromacs: | opencc openf95 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 |
436.cactusADM: | -DSPEC_CPU_LP64 -Mnomain |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -Mnomain |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
433.milc: | basepeak = yes |
470.lbm: | -fastsse -Msmartalloc=huge -Mprefetch=t0 -Mloop32 -Mfprelaxed -Mipa=fast -Mipa=inline -tp shanghai-64 -Bstatic_pgi |
482.sphinx3: | -Mpfi=indirect(pass 1) -Mpfo=indirect(pass 2) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -fastsse -Mfprelaxed -Msmartalloc -tp shanghai-64 -Bstatic_pgi |
410.bwaves: | -fastsse -Msmartalloc -Mprefetch=nta -Mfprelaxed -Mipa=fast -Mipa=inline -tp shanghai-64 -Bstatic_pgi |
416.gamess: | -march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O2 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256 -HP:bdt=2m:heap=2m |
434.zeusmp: | -fastsse -Mfprelaxed -Mprefetch=distance:8 -Mprefetch=t0 -Msmartalloc=huge -Msmartalloc=hugebss -Mipa=fast -Mipa=inline -tp shanghai-64 -Bstatic_pgi |
437.leslie3d: | -Mpfi=indirect(pass 1) -Mpfo=indirect(pass 2) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -fastsse -Mvect=fuse -Msmartalloc=huge -Mprefetch=distance:8 -Mprefetch=t0 -Mfprelaxed -tp shanghai-64 -Bstatic_pgi |
459.GemsFDTD: | -march=barcelona -Ofast -LNO:fission=2 -LNO:simd=2 -LNO:prefetch_ahead=1 -CG:load_exe=0 -HP |
465.tonto: | -march=barcelona -Ofast -OPT:alias=no_f90_pointer_alias -LNO:blocking=off -CG:load_exe=1 -IPA:plimit=525 -HP |
435.gromacs: | -march=barcelona -Ofast -OPT:rsqrt=2 -HP:bdt=2m:heap=2m |
436.cactusADM: | -fastsse -Mconcur -Msmartalloc=huge -Mfprelaxed -Mipa=fast -Mipa=inline -tp shanghai-64 -Bstatic_pgi |
454.calculix: | -Mpfi=indirect(pass 1) -Mpfo=indirect(pass 2) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -fastsse -Mvect=short -Msmartalloc=huge -Mprefetch=t0 -Mpre -Mfprelaxed -tp shanghai-64 -Bstatic_pgi |
481.wrf: | -fastsse -Mvect=noaltcode -Msmartalloc=huge -Mprefetch=distance:8 -Mfprelaxed -tp shanghai-64 -Bstatic_pgi |
-Mipa=jobs:4(pass 2) |
444.namd: | -Mipa=jobs:4(pass 2) |
410.bwaves: | -Mipa=jobs:4 |
434.zeusmp: | -Mipa=jobs:4 |
437.leslie3d: | -Mipa=jobs:4(pass 2) |
436.cactusADM: | -Mipa=jobs:4 |
454.calculix: | -Mipa=jobs:4(pass 2) |
