CPU2006 license: | 19 | Test date: | Jun-2009 |
---|---|---|---|
Test sponsor: | Fujitsu | Hardware Availability: | Jun-2009 |
Tested by: | Fujitsu | Software Availability: | Feb-2009 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5520 |
CPU Characteristics: | Intel Turbo Boost Technology up to 2.53 GHz |
CPU MHz: | 2267 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 8 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 48 GB (12x4 GB PC3-10600R, 2 rank, CL9-9-9, ECC, see add'l detail in notes) |
Disk Subsystem: | 1 x SATA, 250 GB, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
Compiler: | Intel C++ and Fortran Compiler 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080, l_cprof_p_11.0.080 |
Auto Parallel: | Yes |
File System: | ext3 |
System State: | Multi-User Run Level 3 |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Binutils 2.18.50.0.7.20080502 |

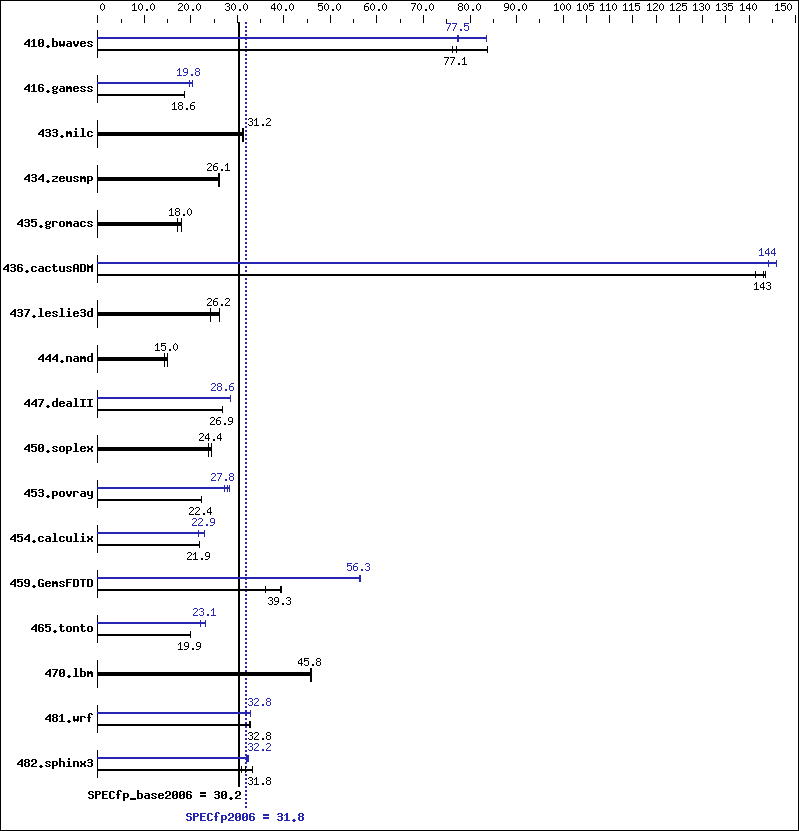

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
410.bwaves | 178 | 76.3 | 176 | 77.1 | 162 | 83.8 | 175 | 77.5 | 163 | 83.4 | 176 | 77.4 |
416.gamess | 1052 | 18.6 | 1053 | 18.6 | 1049 | 18.7 | 959 | 20.4 | 989 | 19.8 | 989 | 19.8 |
433.milc | 294 | 31.2 | 294 | 31.2 | 295 | 31.1 | 294 | 31.2 | 294 | 31.2 | 295 | 31.1 |
434.zeusmp | 348 | 26.1 | 350 | 26.0 | 348 | 26.1 | 348 | 26.1 | 350 | 26.0 | 348 | 26.1 |
435.gromacs | 418 | 17.1 | 396 | 18.0 | 397 | 18.0 | 418 | 17.1 | 396 | 18.0 | 397 | 18.0 |
436.cactusADM | 83.3 | 143 | 84.5 | 141 | 83.5 | 143 | 82.9 | 144 | 81.9 | 146 | 82.9 | 144 |
437.leslie3d | 388 | 24.2 | 359 | 26.2 | 358 | 26.2 | 388 | 24.2 | 359 | 26.2 | 358 | 26.2 |
444.namd | 534 | 15.0 | 561 | 14.3 | 534 | 15.0 | 534 | 15.0 | 561 | 14.3 | 534 | 15.0 |
447.dealII | 425 | 26.9 | 425 | 26.9 | 425 | 26.9 | 401 | 28.6 | 400 | 28.6 | 400 | 28.6 |
450.soplex | 349 | 23.9 | 341 | 24.4 | 342 | 24.4 | 349 | 23.9 | 341 | 24.4 | 342 | 24.4 |
453.povray | 238 | 22.4 | 238 | 22.4 | 239 | 22.3 | 196 | 27.1 | 187 | 28.4 | 191 | 27.8 |
454.calculix | 376 | 21.9 | 377 | 21.9 | 377 | 21.9 | 361 | 22.9 | 361 | 22.9 | 379 | 21.8 |
459.GemsFDTD | 295 | 36.0 | 269 | 39.4 | 270 | 39.3 | 188 | 56.4 | 189 | 56.2 | 188 | 56.3 |
465.tonto | 493 | 19.9 | 495 | 19.9 | 495 | 19.9 | 426 | 23.1 | 426 | 23.1 | 444 | 22.2 |
470.lbm | 300 | 45.8 | 299 | 46.0 | 300 | 45.8 | 300 | 45.8 | 299 | 46.0 | 300 | 45.8 |
481.wrf | 340 | 32.8 | 342 | 32.7 | 340 | 32.8 | 340 | 32.8 | 341 | 32.8 | 340 | 32.9 |
482.sphinx3 | 632 | 30.8 | 587 | 33.2 | 613 | 31.8 | 611 | 31.9 | 602 | 32.4 | 604 | 32.2 |
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
The system automatically configures the memory to run at 1066 MHz.
OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter KMP_STACKSIZE set to 200M For information about Fujitsu please visit: http://www.fujitsu.com
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
icc | |
482.sphinx3: | icc -m32 |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | basepeak = yes |
470.lbm: | basepeak = yes |
482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 |
444.namd: | basepeak = yes |
447.dealII: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias -scalar-rep- -opt-prefetch |
450.soplex: | basepeak = yes |
453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
410.bwaves: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -parallel |
416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | basepeak = yes |
437.leslie3d: | basepeak = yes |
459.GemsFDTD: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -opt-prefetch -parallel |
465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto |
435.gromacs: | basepeak = yes |
436.cactusADM: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -opt-prefetch -parallel -auto-ilp32 |
454.calculix: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 |
481.wrf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -parallel -auto-ilp32 |
