SPEC® CFP2006 Result

Copyright 2006-2012 Standard Performance Evaluation Corporation

Dell Inc.

PowerEdge T610 (Intel Xeon E5502, 1.86 GHz)

SPECfp®2006 = Not Run

CPU2006 license: 55 Test date: Sep-2009
Test sponsor: Dell Inc. Hardware Availability: Mar-2009
Tested by: Dell Inc. Software Availability: May-2009

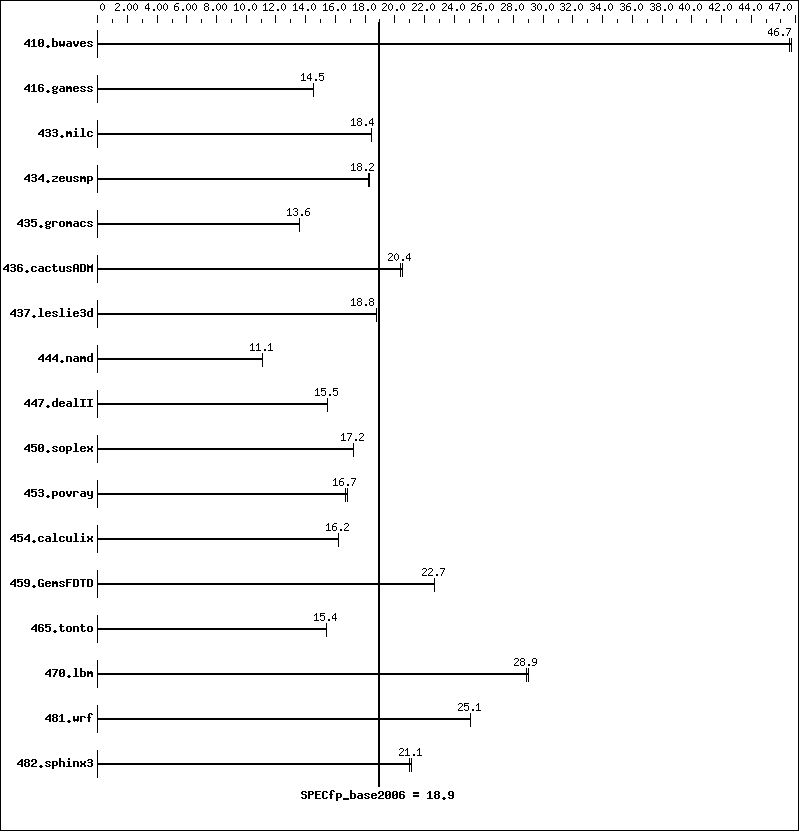

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5502
CPU Characteristics:
CPU MHz: 1867
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory: 2 GB (2 x 1 GB DDR3-1066 DR RDIMM downclocked to
800 MHz)
Disk Subsystem: 1 x 73 GB 15000 RPM SAS
Other Hardware: None
Software
Operating System: Microsoft Windows Server 2008 Enterprise x64
Edition SP2
Compiler: Intel C++ Compiler for Intel 64, Version 11.0
Build 20090131 Package ID: w_cproc_p_11.0.072
Intel Visual Fortran Compiler for Intel 64,
Version 11.0
Build 20090131 Package ID: w_cprof_p_11.0.072
Microsoft Visual Studio 2008 SP1
Auto Parallel: Yes
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: Not Applicable
Other Software: MicroQuill SmartHeap Library 8.1 for x64

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 292 46.6 291 46.7 291 46.7
416.gamess 1350 14.5 1350 14.5 1349 14.5
433.milc 499 18.4 499 18.4 498 18.4
434.zeusmp 499 18.2 499 18.3 499 18.2
435.gromacs 527 13.6 527 13.6 527 13.6
436.cactusADM 586 20.4 582 20.5 586 20.4
437.leslie3d 500 18.8 500 18.8 500 18.8
444.namd 724 11.1 724 11.1 724 11.1
447.dealII 738 15.5 738 15.5 737 15.5
450.soplex 485 17.2 485 17.2 485 17.2
453.povray 317 16.8 318 16.7 318 16.7
454.calculix 508 16.2 508 16.2 508 16.2
459.GemsFDTD 467 22.7 468 22.7 468 22.7
465.tonto 641 15.4 641 15.4 640 15.4
470.lbm 475 28.9 474 29.0 475 28.9
481.wrf 446 25.1 446 25.1 446 25.1
482.sphinx3 923 21.1 926 21.0 923 21.1

General Notes

 Binaries were built on Windows Vista Business (64-bit)

Base Compiler Invocation

C benchmarks:

 icl   -Qvc9   -Qstd=c99

C++ benchmarks:

 icl   -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc9   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64   /assume:underscore
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -QxSSE4.2   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   /F512000000

C++ benchmarks:

 -QxSSE4.2   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   -Qcxx_features   /F512000000   shlw64mt.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -QxSSE4.2   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   /F1000000000

Benchmarks using both Fortran and C:

 -QxSSE4.2   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   /F1000000000

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/dell.flags.ic11.0.win.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/dell.flags.ic11.0.win.xml.
