SPEC® CFP2006 Result

Copyright 2006-2012 Standard Performance Evaluation Corporation

Fujitsu

Fujitsu SPARC Enterprise M4000

CPU2006 license: 19 Test date: Sep-2009
Test sponsor: Fujitsu Hardware Availability: Nov-2009
Tested by: Sun Microsystems Software Availability: Oct-2009

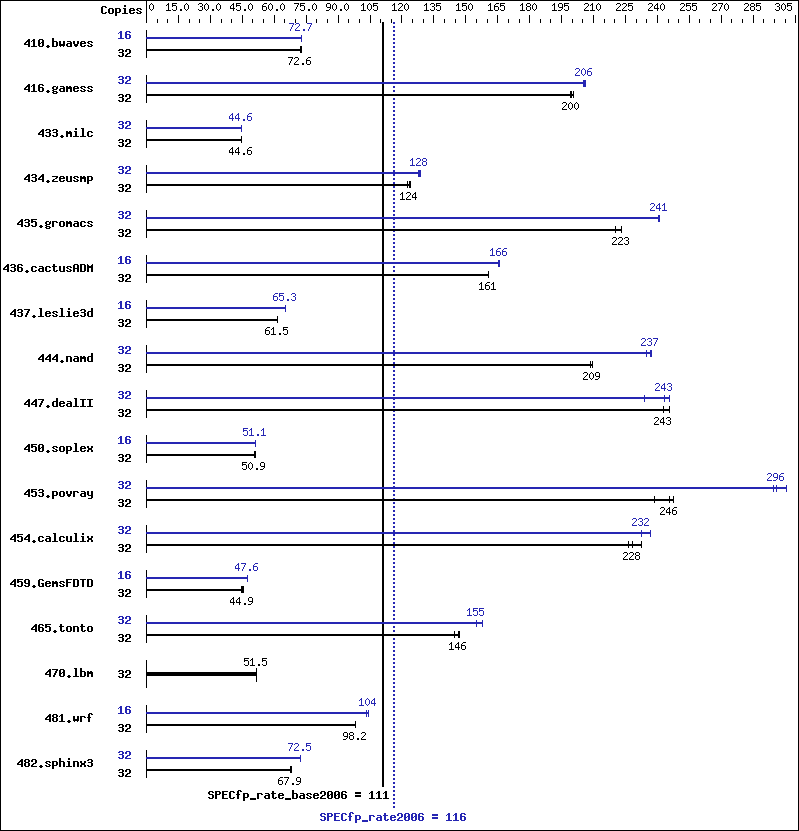

Benchmark results graph
Hardware
CPU Name: SPARC64 VII
CPU Characteristics:
CPU MHz: 2530
FPU: Integrated
CPU(s) enabled: 16 cores, 4 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 to 2 CPUMs; each CPUM contains 2 CPU chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 5632 KB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 32 GB (32 x 1 GB), 8-way interleaved
Disk Subsystem: 2x 146 GB SAS 10k rpm
Other Hardware: None
Software
Operating System: Solaris 10 10/09 (s10s_u8wos_06)
Compiler: Sun Studio 12 Update 1 plus patches (see notes)
Auto Parallel: No
File System: zfs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 32 5992 72.6 5990 72.6 5992 72.6 16 2991 72.7 2991 72.7 2991 72.7
416.gamess 32 3127 200   3136 200   3142 199   32 3051 205   3041 206   3043 206
433.milc 32 6592 44.6 6593 44.6 6587 44.6 32 6582 44.6 6577 44.7 6583 44.6
434.zeusmp 32 2353 124   2345 124   2373 123   32 2274 128   2283 128   2266 129
435.gromacs 32 1024 223   1025 223   1037 220   32 948 241   950 240   949 241
436.cactusADM 32 2383 160   2382 161   2382 161   16 1152 166   1154 166   1156 165
437.leslie3d 32 4895 61.5 4892 61.5 4894 61.5 16 2305 65.3 2304 65.3 2303 65.3
444.namd 32 1226 209   1229 209   1226 209   32 1092 235   1083 237   1085 237
447.dealII 32 1507 243   1490 246   1508 243   32 1505 243   1566 234   1489 246
450.soplex 32 5227 51.1 5241 50.9 5239 50.9 16 2613 51.1 2612 51.1 2611 51.1
453.povray 32 693 246   714 238   687 248   32 566 301   578 295   575 296
454.calculix 32 1166 227   1156 228   1136 232   32 1136 232   1115 237   1136 232
459.GemsFDTD 32 7489 45.3 7561 44.9 7573 44.8 16 3563 47.6 3564 47.6 3562 47.7
465.tonto 32 2174 145   2144 147   2150 146   32 2033 155   1993 158   2033 155
470.lbm 32 8545 51.5 8545 51.5 8546 51.5 32 8545 51.5 8545 51.5 8546 51.5
481.wrf 32 3638 98.2 3646 98.0 3641 98.2 16 1716 104   1712 104   1727 104
482.sphinx3 32 9190 67.9 9191 67.9 9178 68.0 32 8597 72.5 8600 72.5 8627 72.3

Compiler Invocation Notes

 Sun Studio 12 Update 1 was used, plus patch 119963-17

 Sun Studio compiler patches are available at
   http://developers.sun.com/sunstudio/downloads/patches/ss12u1_patches.jsp

Submit Notes


 Processes were assigned to specific processors using 'pbind'
 commands.  The config file option 'submit' was used, along
 with a list of processors in the 'BIND' variable, to generate
 the pbind commands.  (For details, please see the config file.)

Operating System Notes


 ulimit -s 131072 was used to allow the stack to grow
 up to 131072 KB (aka 128 MB).  Note that saying "131072"
 is preferable to "unlimited", because there is a tradeoff
 between space for the stack vs. space for the heap.


 System Tunables (/etc/system parameters):

 tune_t_fsflushr=10
     Controls how many seconds elapse between runs of the
     page flush daemon, fsflush.
 autoup=600
     Causes pages older than the listed number of seconds to
     be written by fsflush.
 zfs:zfs_arc_max = 0x10000000
     Control the amount of memory used by ZFS for caching

 Other System Settings:

 The webconsole service was turned off using
     svcadm disable webconsole

 The system had 32 GB of swap space

 SPEC CPU2006 used 1 disk, with zfs gzip compression.

Platform Notes


 Memory is 8-way interleaved by filling all slots with
 the same capacity DIMMs.

 This result is measured on a Sun SPARC Enterprise M4000
 Server.  The Sun SPARC Enterprise M4000 and the Fujitsu
 SPARC Enterprise M4000 are electrically equivalent.

General Notes

Environment variables set by runspec before the start of the run:
OMP_NUM_THREADS = "32"
SUNW_MP_PROCBIND = "true"
SUNW_MP_THR_IDLE = "SPIN"
(Although these variables were set prior to the run
they did not affect performance, since the benchmarks
were compiled in serial mode.)

447.dealII (peak): "apache_stdcxx_4_2_1" src.alt was used.

447.dealII (base): "apache_stdcxx_4_2_1" src.alt was used.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Optimization Flags

C benchmarks:

 -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xalias_level=std   -xprefetch_auto_type=indirect_array_access   -xprefetch_level=3

C++ benchmarks:

 -xdepend   -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xalias_level=compatible   -xprefetch=latx:0.5   -library=no%Cstd   -I/export/home/apache/stdcxx-4.2.1/include   -I/export/home/apache/stdcxx-4.2.1/build/include   -L/export/home/apache/stdcxx-4.2.1/build/lib   -R/export/home/apache/stdcxx-4.2.1/build/lib   -lstd8d

Fortran benchmarks:

 -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2

Benchmarks using both Fortran and C:

 -fast(cc)   -fast(f90)   -fma=fused   -xipo=2   -xpagesize=4M   -xalias_level=std   -xprefetch_auto_type=indirect_array_access   -xprefetch_level=3   -xprefetch_level=2

Base Other Flags

C benchmarks:

 -xjobs=32   -V   -#

C++ benchmarks:

 -xjobs=32   -verbose=diags,version

Fortran benchmarks:

 -xjobs=32   -V   -v

Benchmarks using both Fortran and C:

 -xjobs=32   -V   -#   -v

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Optimization Flags

C benchmarks:

433.milc:  -fast   -xpagesize=4M   -fma=fused   -xipo=2   -xprefetch_level=2   -fsimple=1   -xprefetch_auto_type=indirect_array_access   -W2,-Ainline:rs=400   -xalias_level=std
470.lbm:  basepeak = yes
482.sphinx3:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -fma=fused   -xipo=2   -xinline=   -xprefetch=no%auto   -xalias_level=strong   -lfast   -ll2amm

C++ benchmarks:

444.namd:  -xdepend   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xalias_level=compatible   -library=stlport4   -fma=fused   -xipo=2   -xprefetch=no%auto   -xlinkopt=2
447.dealII:  -xdepend   -fast   -xpagesize=4M   -xalias_level=compatible   -library=no%Cstd   -I/export/home/apache/stdcxx-4.2.1/include   -I/export/home/apache/stdcxx-4.2.1/build/include   -fma=fused   -xipo=2   -xprefetch=latx:0.5   -L/export/home/apache/stdcxx-4.2.1/build/lib   -R/export/home/apache/stdcxx-4.2.1/build/lib   -lstd8d
450.soplex:  -xdepend   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xalias_level=compatible   -library=stlport4   -xipo=1   -xprefetch=no   -fsimple=0   -xrestrict
453.povray:  -xdepend   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xalias_level=compatible   -library=stlport4   -xipo=2   -xlinkopt=2

Fortran benchmarks:

410.bwaves:  -fast   -xpagesize=4M   -fma=fused   -xipo=2   -xprefetch_level=2
416.gamess:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -fma=fused   -xipo=2   -xprefetch=no%auto
434.zeusmp:  -fast   -xpagesize=4M   -fma=fused   -xipo=2   -xprefetch_level=1   -ll2amm
437.leslie3d:  -fast   -xpagesize=4M   -xprefetch=no
459.GemsFDTD:  -fast   -xpagesize=4M   -fma=fused   -fsimple=1   -xprefetch=no
465.tonto:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xipo=2   -xprefetch=no   -lfast   -ll2amm

Benchmarks using both Fortran and C:

435.gromacs:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xpagesize=4M   -fma=fused   -xipo=2   -xchip=generic   -xinline=   -fsimple=0
436.cactusADM:  -fast(cc)   -fast(f90)   -xpagesize=4M   -fma=fused   -xipo=2   -xprefetch=latx:0.7   -fsimple=1
454.calculix:  -fast(cc)   -fast(f90)   -xpagesize=4M   -fma=fused   -xipo=2   -xprefetch_level=1   -xalias_level=std   -xprefetch_auto_type=indirect_array_access
481.wrf:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xpagesize=4M   -xipo=2   -xprefetch_level=2

Peak Other Flags

C benchmarks:

 -xjobs=32   -V   -#

C++ benchmarks:

 -xjobs=32   -verbose=diags,version

Fortran benchmarks:

 -xjobs=32   -V   -v

Benchmarks using both Fortran and C:

 -xjobs=32   -V   -#   -v

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-12u1-and-gccfss4.2.r4.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-12u1-and-gccfss4.2.r4.xml.
