SPEC® CINT2006 Result

Copyright 2006-2012 Standard Performance Evaluation Corporation

Fujitsu

Fujitsu SPARC Enterprise M9000

CPU2006 license: 19 Test date: Aug-2009
Test sponsor: Fujitsu Hardware Availability: Nov-2009
Tested by: Fujitsu Software Availability: Jun-2009

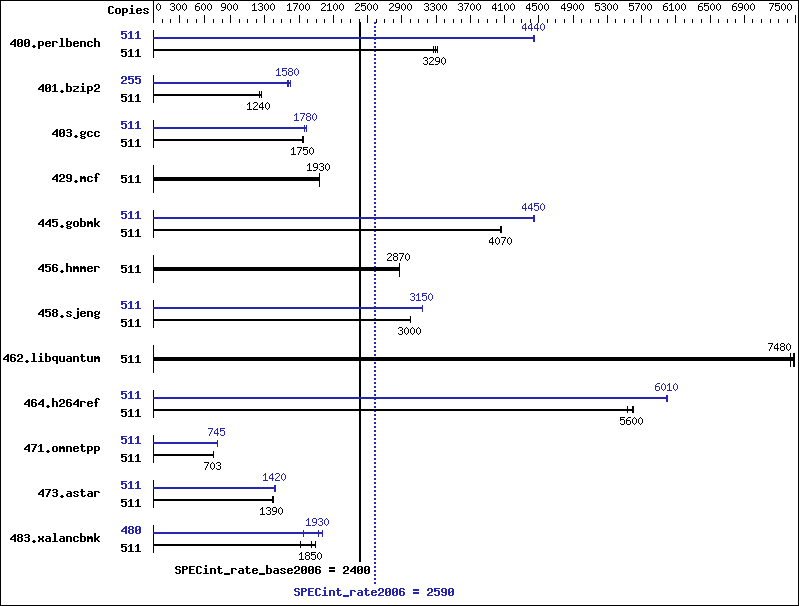

Benchmark results graph
Hardware
CPU Name: SPARC64 VII
CPU Characteristics:
CPU MHz: 2880
FPU: Integrated
CPU(s) enabled: 256 cores, 64 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 to 16 CMUs; each CMU contains 2 or 4 CPU chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 1152 GB (448 x 2 GB + 64 x 4 GB), 8-way
interleaved
Disk Subsystem: 1 x Seagate Savvio 10K.2 (146 GB 10,000 RPM SAS)
3400 GB RAID 0 Solaris Volume
24 x Seagate Savvio 10K.2 (146 GB 10,000 RPM SAS)
Stripe interlace 2048 Kbytes
Other Hardware: None
Software
Operating System: Solaris 10 5/09 with patches 119963-13,
120753-06, 118683-03
Compiler: Sun Studio 12 Update 1
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 511 1529 3260 1503 3320 1518 3290 511 1123 4440 1121 4450 1126 4430
401.bzip2 511 3899 1260 3976 1240 3966 1240 255 1535 1600 1560 1580 1570 1570
403.gcc 511 2346 1750 2349 1750 2370 1740 511 2305 1780 2331 1760 2307 1780
429.mcf 511 2409 1930 2410 1930 2406 1940 511 2409 1930 2410 1930 2406 1940
445.gobmk 511 1318 4070 1324 4050 1317 4070 511 1205 4450 1208 4440 1204 4450
456.hmmer 511 1661 2870 1659 2870 1660 2870 511 1661 2870 1659 2870 1660 2870
458.sjeng 511 2062 3000 2063 3000 2061 3000 511 1966 3150 1966 3150 1970 3140
462.libquantum 511 1416 7480 1423 7440 1415 7480 511 1416 7480 1423 7440 1415 7480
464.h264ref 511 2042 5540 2018 5600 2020 5600 511 1882 6010 1887 5990 1883 6010
471.omnetpp 511 4554 701 4534 704 4543 703 511 4284 745 4294 744 4286 745
473.astar 511 2565 1400 2576 1390 2578 1390 511 2518 1420 2523 1420 2541 1410
483.xalancbmk 511 1905 1850 1863 1890 2050 1720 480 1676 1980 1894 1750 1715 1930

Compiler Invocation Notes

Sun Studio compiler patches are available at
   http://developers.sun.com/sunstudio/downloads/patches/ss12u1_patches.jsp

Submit Notes

The config file option 'submit' was used.  Processes were assigned to
specific processors using 'pbind' commands.  The list of processors to use
was provided in the 'BIND' variable, to generate the pbind commands.
(For details, please see the config file.)

Operating System Notes


Shell Environments:

    ulimit -s 131072 was used to limit the space consumed
    by the stack.(making more space available for the heap)

System Tunables:
(/etc/system parameters)

    autoup=300
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    bufhwm=40000000
       Memory byte limit for caching I/O buffers.
    lpg_alloc_prefer=1
       Set lgroup page allocation to strongly prefer local pages.

Other System Settings:

    The webconsole service was turned off using svcadm disable webconsole.

 The SPEC toolset was bound to processors 1-511 using processor sets:
       psrset -c 1-511
       psrset -e 1 ksh

Platform Notes


 Memory is 8-way interleaved by filling each CMU's slots with the same
 capacity DIMMs.

 This result is measured on a Fujitsu SPARC Enterprise M9000 Server.
 Note that the Fujitsu SPARC Enterprise M9000 and Sun SPARC Enterprise
 M9000 are electrically equivalent.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=1   -xalias_level=std   -ll2amm

C++ benchmarks:

 -xdepend   -library=stlport4   -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=1   -xalias_level=compatible   -ll2amm   -lfast

Base Other Flags

C benchmarks:

 -xjobs=16   -V   -#

C++ benchmarks:

 -xjobs=16   -verbose=diags,version

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xalias_level=std   -xrestrict   -xprefetch=no   -lfast   -ll2amm
401.bzip2:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -fma=fused   -xalias_level=strong
403.gcc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xalias_level=std   -ll2amm
429.mcf:  basepeak = yes
445.gobmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xalias_level=std   -xrestrict   -ll2amm
456.hmmer:  basepeak = yes
458.sjeng:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xipo=2
462.libquantum:  basepeak = yes
464.h264ref:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xipo=2   -xalias_level=std   -xprefetch=no   -ll2amm

C++ benchmarks:

471.omnetpp:  -xdepend   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xalias_level=compatible   -ll2amm
473.astar:  -xdepend   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xalias_level=compatible   -xprefetch=latx:3   -lfast   -ll2amm
483.xalancbmk:  -xdepend   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xalias_level=compatible   -lfast   -ll2amm

Peak Other Flags

C benchmarks:

 -xjobs=16   -V   -#

C++ benchmarks:

 -xjobs=16   -verbose=diags,version

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-12u1-and-gccfss4.2.r4.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-12u1-and-gccfss4.2.r4.xml.
