| CPU2006 license: | 11 | Test date: | Oct-2009 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Oct-2009 |
| Tested by: | IBM Corporation | Software Availability: | Mar-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X3430 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.80 GHz |
| CPU MHz: | 2400 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 16 GB (4 x 4 GB PC3-10600R) |
| Disk Subsystem: | 1 x 250 GB SATA, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-default |
| Compiler: | Intel C++ Compiler Professional 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

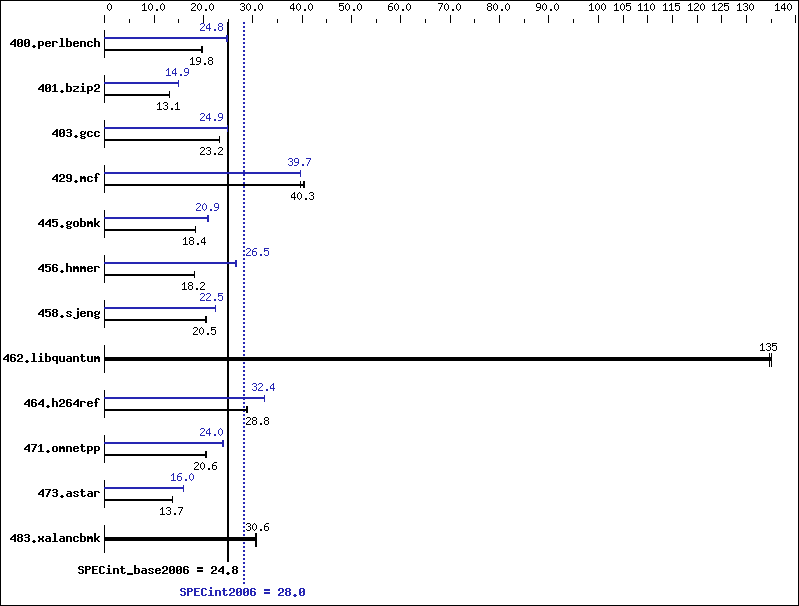

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 497 | 19.6 | 494 | 19.8 | 495 | 19.8 | 395 | 24.7 | 394 | 24.8 | 395 | 24.8 |
| 401.bzip2 | 738 | 13.1 | 739 | 13.1 | 739 | 13.1 | 647 | 14.9 | 647 | 14.9 | 647 | 14.9 |
| 403.gcc | 347 | 23.2 | 347 | 23.2 | 348 | 23.2 | 322 | 25.0 | 323 | 24.9 | 323 | 24.9 |
| 429.mcf | 229 | 39.7 | 225 | 40.5 | 227 | 40.3 | 229 | 39.7 | 230 | 39.6 | 230 | 39.7 |
| 445.gobmk | 571 | 18.4 | 570 | 18.4 | 570 | 18.4 | 502 | 20.9 | 501 | 20.9 | 498 | 21.0 |
| 456.hmmer | 513 | 18.2 | 513 | 18.2 | 513 | 18.2 | 351 | 26.6 | 352 | 26.5 | 352 | 26.5 |
| 458.sjeng | 591 | 20.5 | 591 | 20.5 | 589 | 20.6 | 538 | 22.5 | 538 | 22.5 | 539 | 22.5 |
| 462.libquantum | 153 | 135 | 154 | 135 | 154 | 135 | 153 | 135 | 154 | 135 | 154 | 135 |
| 464.h264ref | 768 | 28.8 | 768 | 28.8 | 768 | 28.8 | 685 | 32.3 | 684 | 32.4 | 684 | 32.4 |
| 471.omnetpp | 306 | 20.4 | 304 | 20.6 | 304 | 20.6 | 259 | 24.1 | 261 | 24.0 | 261 | 24.0 |
| 473.astar | 512 | 13.7 | 514 | 13.7 | 512 | 13.7 | 441 | 15.9 | 439 | 16.0 | 440 | 16.0 |
| 483.xalancbmk | 225 | 30.6 | 226 | 30.6 | 225 | 30.7 | 225 | 30.6 | 226 | 30.6 | 225 | 30.7 |
General Notes
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run CPU C-States Enable and Adjacent Sector Prefetch Enable Turbo Mode Enable OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -par-runtime-control -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 458.sjeng: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
C++ benchmarks (except as noted below):
| icpc | |
| 473.astar: | /opt/intel/Compiler/11.0/080/bin/intel64/icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias -opt-prefetch |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
