SPEC® CFP2006 Result

Copyright 2006-2012 Standard Performance Evaluation Corporation

Sun Microsystems

Sun Fire X6440 (AMD Opteron 8435 2.6GHz)

SPECfp®2006 = 30.8

CPU2006 license: 6 Test date: Jan-2010
Test sponsor: Sun Microsystems Hardware Availability: Nov-2009
Tested by: Sun Microsystems Software Availability: Jun-2009

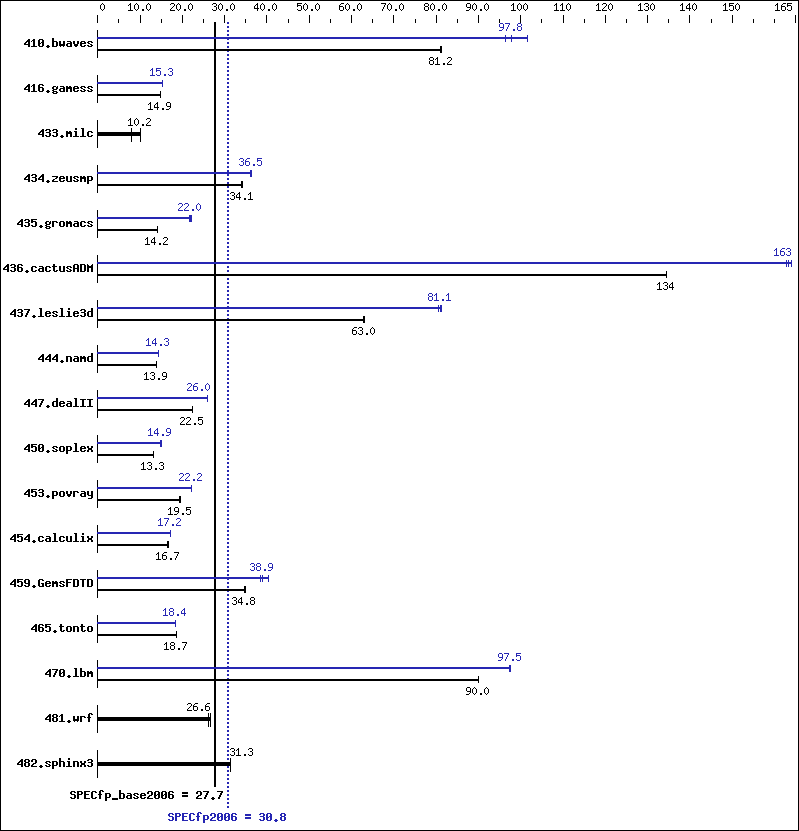

Benchmark results graph
Hardware
CPU Name: AMD Opteron 8435
CPU Characteristics:
CPU MHz: 2600
FPU: Integrated
CPU(s) enabled: 24 cores, 4 chips, 6 cores/chip
CPU(s) orderable: 2 or 4 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory: 64 GB (16x4GB, DDR2-667, CL5, Reg, Dual Rank)
Disk Subsystem: Compact Flash, 16 GB
Other Hardware: None
Software
Operating System: OpenSolaris 2009.06
Compiler: Sun Studio 12 Update 1
Auto Parallel: Yes
File System: zfs with gzip compression
System State: Default
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: none

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 168   81.1 167   81.2 167   81.3  139   97.8 134   102   141   96.4
416.gamess 1310   14.9 1311   14.9 1310   14.9  1278   15.3 1281   15.3 1279   15.3
433.milc 901   10.2 900   10.2 1152   7.97 901   10.2 900   10.2 1152   7.97
434.zeusmp 265   34.3 267   34.1 268   34.0  250   36.5 250   36.5 251   36.2
435.gromacs 503   14.2 503   14.2 503   14.2  325   22.0 321   22.2 329   21.7
436.cactusADM 88.8 135   88.9 134   88.9 134    73.4 163   72.9 164   73.1 163
437.leslie3d 149   63.0 150   62.9 149   63.0  116   81.1 116   81.2 117   80.6
444.namd 577   13.9 574   14.0 577   13.9  562   14.3 561   14.3 562   14.3
447.dealII 509   22.5 509   22.5 509   22.5  441   25.9 440   26.0 441   26.0
450.soplex 627   13.3 629   13.3 631   13.2  561   14.9 555   15.0 563   14.8
453.povray 272   19.6 273   19.5 274   19.4  239   22.3 241   22.1 239   22.2
454.calculix 495   16.7 495   16.7 498   16.6  479   17.2 478   17.2 479   17.2
459.GemsFDTD 305   34.8 305   34.8 305   34.7  273   38.9 276   38.5 262   40.4
465.tonto 529   18.6 527   18.7 527   18.7  533   18.4 532   18.5 533   18.4
470.lbm 153   90.0 153   90.0 153   90.0  141   97.5 141   97.4 141   97.5
481.wrf 428   26.1 420   26.6 419   26.7  428   26.1 420   26.6 419   26.7
482.sphinx3 622   31.3 622   31.3 622   31.3  622   31.3 622   31.3 622   31.3

Compiler Invocation Notes

 The Apache C++ Standard Library V4.2.1 was installed from
 http://stdcxx.apache.org/download.html using:
     alias gmake=specmake
     gmake BUILDTYPE=8D CONFIG=sunpro.config

Operating System Notes

 ulimit -s unlimited  (shell): increases stack
 export OMP_NUM_THREADS=12
 export SUNW_MP_PROCBIND "0 2 4 6 8 10 1 3 5 7 9 11"
 export SUNW_MP_THR_IDLE=SPIN

 /etc/system parameters
    tune_t_fsflushr=10
    autoup=900
    set lpg_alloc_prefer=1
    set zfs:zfs_arc_max = 0x10000000

Platform Notes


   Default BIOS settings used except:
   DCT Unganged Mode set to "Always" to enable Unganged Mode

General Notes

Environment variables set by runspec before the start of the run:
OMP_NUM_THREADS = "12"
SUNW_MP_PROCBIND = "0 6 12 18 2 8 14 20 4 10 16 22 1 7 13 19 3 9 15 21 5 11 17 23"
SUNW_MP_THR_IDLE = "SPIN"

447.dealII (peak): "apache_stdcxx_4_2_1" src.alt was used.

447.dealII (base): "apache_stdcxx_4_2_1" src.alt was used.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_WORDS_LITTLEENDIAN
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -xipo=2   -m64   -xvector=simd   -xautopar

C++ benchmarks:

 -fast   -xipo=2   -m64   -xvector=simd   -library=no%Cstd   -I/data1/stdcxx-4.2.1/include   -I/data1/stdcxx-4.2.1/build/include   -L/data1/stdcxx-4.2.1/build/lib   -R/data1/stdcxx-4.2.1/build/lib   -lstd8D

Fortran benchmarks:

 -fast   -xipo=2   -m64   -xvector=simd   -xautopar

Benchmarks using both Fortran and C:

 -fast(cc)   -xipo=2   -m64   -xvector=simd   -xautopar   -fast(f90)

Base Other Flags

C benchmarks:

 -V   -#   -xjobs=24

C++ benchmarks:

 -verbose=diags,version   -xjobs=24

Fortran benchmarks:

 -V   -v   -xjobs=24

Benchmarks using both Fortran and C:

 -V   -#   -xjobs=24   -v

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Portability Flags

433.milc:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_WORDS_LITTLEENDIAN
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  -fast   -xipo=2   -m64   -xvector=simd   -xautopar   -Qoption iropt -Aparallel:nthreads=24   -xreduction   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap_mt64   -lmvec
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xunroll=8   -library=stlport4
447.dealII:  -fast   -xipo=1   -m64   -xpagesize=2M   -xalias_level=compatible   -xdepend   -library=no%Cstd   -I/data1/stdcxx-4.2.1/include   -I/data1/stdcxx-4.2.1/build/include   -L/data1/stdcxx-4.2.1/build/lib   -R/data1/stdcxx-4.2.1/build/lib   -lstd8D
450.soplex:  -fast   -xipo=2   -xpagesize=2M   -xrestrict   -xalias_level=simple   -xprefetch=no%auto   -library=stlport4   -xdepend
453.povray:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xalias_level=simple   -library=stlport4   -xpagesize=2M

Fortran benchmarks:

410.bwaves:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xprefetch=no%auto   -xautopar   -xreduction
416.gamess:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xunroll=1   -qoption iropt -Ainline:cp=19   -qoption iropt -Ainline:rs=50   -qoption iropt -Ainline:irs=30
434.zeusmp:  -fast   -xipo=2   -m64   -xvector=simd   -xautopar   -xreduction
437.leslie3d:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xvector=simd   -xautopar   -Qoption iropt -Aparallel:nthreads=24   -xreduction   -lumem
459.GemsFDTD:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xvector=simd   -xautopar   -Qoption iropt -Aparallel:nthreads=24   -xreduction
465.tonto:  -fast   -xipo=2   -m64   -xvector=lib   -xalias   -xdepend   -xpagesize=2M   -xautopar   -stackvar   -xreduction   -xprefetch=no%auto

Benchmarks using both Fortran and C:

435.gromacs:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xipo=2   -m64   -fsimple=2   -Qoption ube -fsimple=3   -xprefetch=no%auto   -xpagesize=2M   -xautopar   -xreduction
436.cactusADM:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xipo=2   -m64   -xvector=simd   -xautopar   -W2,-Aparallel:nthreads=24   -Qoption iropt -Aparallel:nthreads=24
454.calculix:  -fast(cc)   -fast(f90)   -xipo=2   -m64   -xpagesize=2M   -xvector=simd
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks:

 -V   -#   -xjobs=24

C++ benchmarks:

 -verbose=diags,version   -xjobs=24

Fortran benchmarks:

 -V   -v   -xjobs=24

Benchmarks using both Fortran and C:

 -V   -#   -xjobs=24   -v

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-OpenSolaris-Studio-x86_64.20090818.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-OpenSolaris-Studio-x86_64.20090818.xml.
