CPU2006 license: | 20 | Test date: | Mar-2010 |
---|---|---|---|
Test sponsor: | Bull SAS | Hardware Availability: | Jan-2010 |
Tested by: | Bull SAS | Software Availability: | Dec-2009 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X5560 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.20 GHz |
CPU MHz: | 2800 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 8 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 24 GB (6 x 4 GB PC3-10600R, 2 Rank, CL9-9-9, ECC) |
Disk Subsystem: | 1 x 73 GB SAS, 10000 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, SP2 with patch Linux kernel 20090119, Kernel 2.6.16.60-0.34-smp |
Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
Auto Parallel: | Yes |
File System: | ReiserFS |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

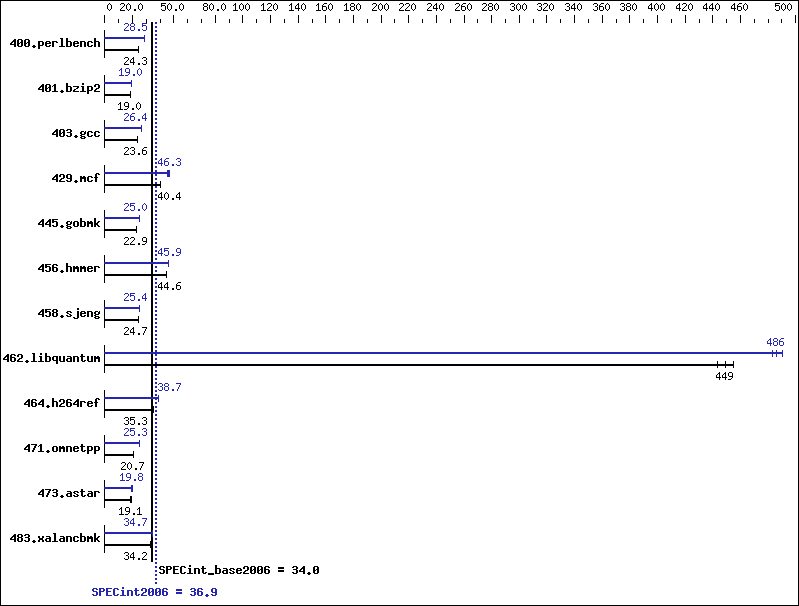

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
400.perlbench | 402 | 24.3 | 402 | 24.3 | 403 | 24.3 | 343 | 28.5 | 343 | 28.5 | 342 | 28.6 |
401.bzip2 | 515 | 18.7 | 508 | 19.0 | 508 | 19.0 | 507 | 19.0 | 507 | 19.1 | 508 | 19.0 |
403.gcc | 342 | 23.6 | 341 | 23.6 | 342 | 23.5 | 304 | 26.5 | 305 | 26.4 | 305 | 26.4 |
429.mcf | 226 | 40.4 | 226 | 40.4 | 226 | 40.4 | 200 | 45.5 | 195 | 46.7 | 197 | 46.3 |
445.gobmk | 458 | 22.9 | 458 | 22.9 | 458 | 22.9 | 420 | 25.0 | 420 | 25.0 | 419 | 25.0 |
456.hmmer | 210 | 44.4 | 209 | 44.7 | 209 | 44.6 | 203 | 45.9 | 202 | 46.1 | 203 | 45.9 |
458.sjeng | 490 | 24.7 | 491 | 24.7 | 490 | 24.7 | 475 | 25.5 | 476 | 25.4 | 476 | 25.4 |
462.libquantum | 45.5 | 455 | 46.7 | 443 | 46.1 | 449 | 42.2 | 490 | 42.6 | 486 | 42.9 | 483 |
464.h264ref | 624 | 35.4 | 626 | 35.3 | 628 | 35.3 | 572 | 38.7 | 572 | 38.7 | 572 | 38.7 |
471.omnetpp | 302 | 20.7 | 303 | 20.6 | 302 | 20.7 | 247 | 25.3 | 247 | 25.3 | 247 | 25.3 |
473.astar | 367 | 19.1 | 370 | 19.0 | 367 | 19.1 | 353 | 19.9 | 354 | 19.8 | 356 | 19.7 |
483.xalancbmk | 202 | 34.2 | 210 | 32.8 | 201 | 34.4 | 199 | 34.7 | 199 | 34.6 | 198 | 34.9 |
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter The Dell PowerEdge R710 and the Bull NovaScale R460 F2 models are electronically equivalent. The results have been measured on a Bull NovaScale R460 F2 model.
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
471.omnetpp: | -DSPEC_CPU_LP64 |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
icc -m64 | |
400.perlbench: | icc -m32 |
429.mcf: | icc -m32 |
445.gobmk: | icc -m32 |
464.h264ref: | icc -m32 |
icpc -m32 | |
473.astar: | icpc -m64 |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
483.xalancbmk: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
