SPEC® CINT2006 Result

Copyright 2006-2012 Standard Performance Evaluation Corporation

SGI

SGI Altix UV 1000 (Intel Xeon X7560, 2.26 GHz)

SPECint®_rate2006 = Not Run

CPU2006 license: 4 Test date: Mar-2010
Test sponsor: SGI Hardware Availability: Jun-2010
Tested by: SGI Software Availability: Jun-2010

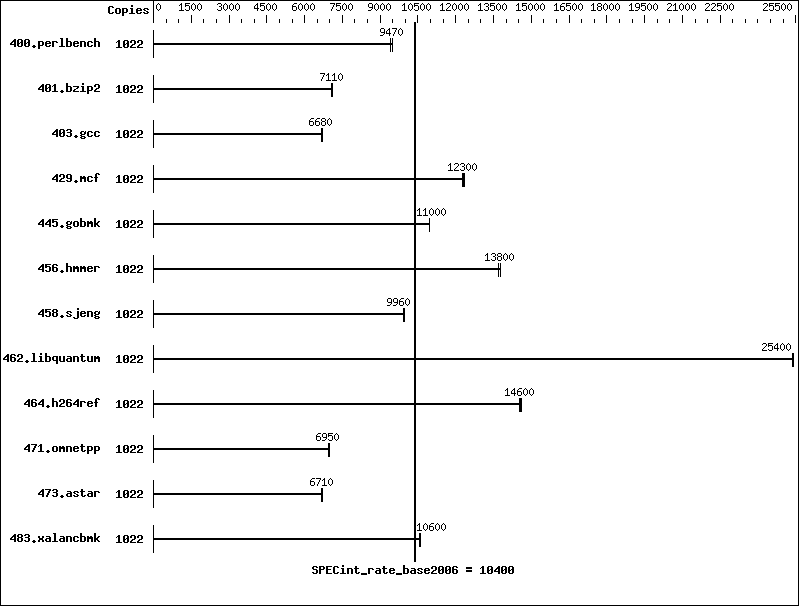

Benchmark results graph
Hardware
CPU Name: Intel Xeon X7560
CPU Characteristics: Intel Turbo Boost Technology is not-enabled
CPU MHz: 2266
FPU: Integrated
CPU(s) enabled: 512 cores, 64 chips, 8 cores/chip, 2 threads/core
CPU(s) orderable: 2-256 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 24 MB I+D on chip per chip
Other Cache: None
Memory: 2 TB (512 x 4GB dual-rank DDR3-1066 CL7 RDIMMs)
Disk Subsystem: 1 TB tmpfs
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 11 (x86_64) SP1,
Kernel 2.6.32.8-0.3.1-uv
Compiler: Intel C++ Professional Compiler for IA32 and
Intel 64, Version 11.1
Build 20091130 Package ID: l_cproc_p_11.1.064
Auto Parallel: No
File System: tmpfs
System State: Multi-user, run level 3
Base Pointers: 32-bit
Peak Pointers: Not Applicable
Other Software: Microquill SmartHeap V8.1
Binutils 2.18.50.0.7.20080502

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 1022 1062 9400 1051 9500 1054 9470
401.bzip2 1022 1385 7120 1388 7110 1395 7070
403.gcc 1022 1232 6680 1226 6710 1232 6680
429.mcf 1022 755 12400 758 12300 760 12300
445.gobmk 1022 979 11000 978 11000 978 11000
456.hmmer 1022 691 13800 692 13800 695 13700
458.sjeng 1022 1244 9940 1240 9970 1242 9960
462.libquantum 1022 834 25400 835 25400 834 25400
464.h264ref 1022 1553 14600 1550 14600 1555 14500
471.omnetpp 1022 919 6950 915 6980 921 6930
473.astar 1022 1074 6680 1067 6720 1069 6710
483.xalancbmk 1022 664 10600 668 10600 664 10600

Submit Notes

The config file option 'submit' was used.
numactl was used to bind copies to the cores

Operating System Notes

Tmpfs filesystem set up with:
  mkdir -p /mnt/shm
  mount -t tmpfs -o rw,mpol=interleave tmpfs /mnt/shm/
  The mpol=interleave option sets the NUMA memory allocation
  policy for all files to allocate from each node in turn.

Base Compiler Invocation

C benchmarks:

 icc -m32

C++ benchmarks:

 icpc -m32

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -opt-prefetch

C++ benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -opt-prefetch   -Wl,-z,muldefs   -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.1-linux64-revE.20100316.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.1-linux64-revE.20100316.xml.
