CPU2006 license: | 001176 | Test date: | Mar-2010 |
---|---|---|---|
Test sponsor: | Supermicro | Hardware Availability: | Sep-2009 |
Tested by: | Supermicro | Software Availability: | Oct-2009 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X3450 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.20 GHz |
CPU MHz: | 2666 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
CPU(s) orderable: | 1 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 8 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 16 GB (4 x 4GB DDR3-1333 RDIMM, ECC, CL9) |
Disk Subsystem: | 1 x 160 GB SATA II, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 (x86_64) Kernel 2.6.27.19-5-default |
Compiler: | Intel C++ and Fortran Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091012 Package ID: l_cproc_p_11.1.059, l_cprof_p_11.1.059 |
Auto Parallel: | No |
File System: | ReiserFS |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

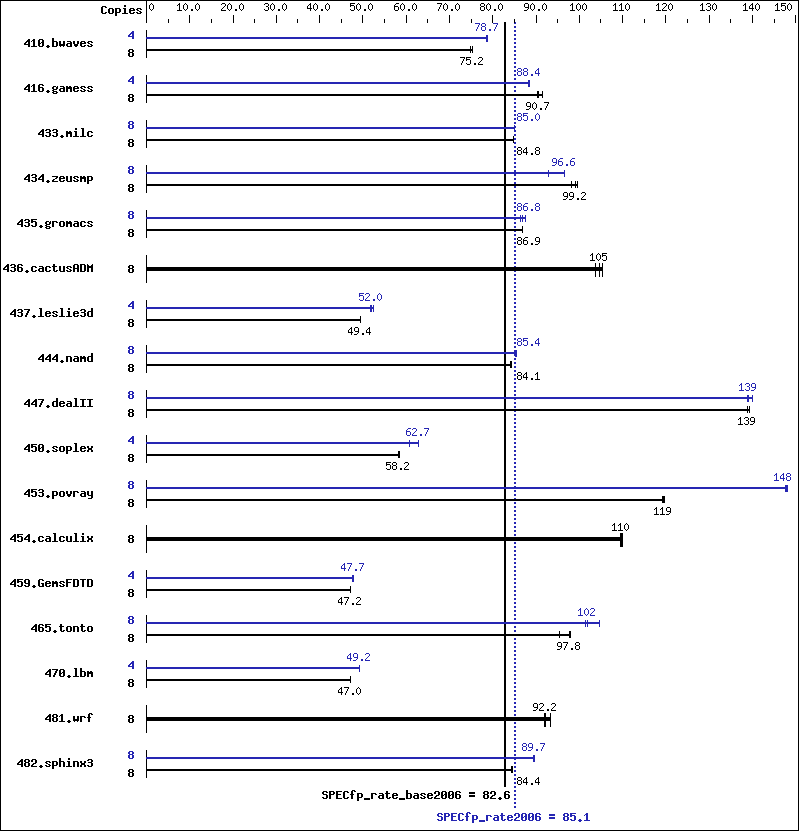

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 8 | 1451 | 74.9 | 1445 | 75.3 | 1445 | 75.2 | 4 | 692 | 78.6 | 690 | 78.8 | 691 | 78.7 |
416.gamess | 8 | 1714 | 91.4 | 1728 | 90.7 | 1736 | 90.2 | 4 | 886 | 88.4 | 887 | 88.3 | 886 | 88.4 |
433.milc | 8 | 866 | 84.8 | 866 | 84.8 | 865 | 84.9 | 8 | 864 | 85.0 | 863 | 85.1 | 864 | 85.0 |
434.zeusmp | 8 | 741 | 98.2 | 732 | 99.5 | 734 | 99.2 | 8 | 754 | 96.6 | 784 | 92.9 | 754 | 96.6 |
435.gromacs | 8 | 657 | 86.9 | 658 | 86.8 | 658 | 86.9 | 8 | 652 | 87.7 | 660 | 86.5 | 658 | 86.8 |
436.cactusADM | 8 | 913 | 105 | 922 | 104 | 908 | 105 | 8 | 913 | 105 | 922 | 104 | 908 | 105 |
437.leslie3d | 8 | 1520 | 49.5 | 1523 | 49.4 | 1521 | 49.4 | 4 | 726 | 51.8 | 723 | 52.0 | 717 | 52.4 |
444.namd | 8 | 764 | 84.0 | 762 | 84.2 | 763 | 84.1 | 8 | 751 | 85.4 | 750 | 85.5 | 752 | 85.3 |
447.dealII | 8 | 659 | 139 | 657 | 139 | 659 | 139 | 8 | 658 | 139 | 653 | 140 | 659 | 139 |
450.soplex | 8 | 1143 | 58.4 | 1146 | 58.2 | 1146 | 58.2 | 4 | 550 | 60.7 | 532 | 62.7 | 532 | 62.7 |
453.povray | 8 | 357 | 119 | 357 | 119 | 356 | 120 | 8 | 288 | 148 | 287 | 148 | 288 | 148 |
454.calculix | 8 | 601 | 110 | 600 | 110 | 603 | 109 | 8 | 601 | 110 | 600 | 110 | 603 | 109 |
459.GemsFDTD | 8 | 1798 | 47.2 | 1798 | 47.2 | 1797 | 47.2 | 4 | 892 | 47.6 | 888 | 47.8 | 890 | 47.7 |
465.tonto | 8 | 824 | 95.5 | 805 | 97.8 | 803 | 98.0 | 8 | 776 | 101 | 752 | 105 | 773 | 102 |
470.lbm | 8 | 2338 | 47.0 | 2337 | 47.0 | 2337 | 47.0 | 4 | 1119 | 49.1 | 1114 | 49.3 | 1117 | 49.2 |
481.wrf | 8 | 958 | 93.3 | 971 | 92.0 | 969 | 92.2 | 8 | 958 | 93.3 | 971 | 92.0 | 969 | 92.2 |
482.sphinx3 | 8 | 1851 | 84.2 | 1848 | 84.4 | 1846 | 84.5 | 8 | 1745 | 89.4 | 1738 | 89.7 | 1738 | 89.7 |
The config file option 'submit' was used. numactl was used to bind copies to the cores
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run
Fan speed set to Full Speed in BIOS Setup. As tested, the system used a Supermicro PWS-665-PQ power supply, SNK-P0046P heatsink, and FAN-0077L cooling fan.
Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
icc -m64 | |
482.sphinx3: | icc -m32 |
icpc -m64 | |
450.soplex: | icpc -m32 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -fno-alias -opt-prefetch |
470.lbm: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -ansi-alias -auto-ilp32 |
482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 |
444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias -scalar-rep- |
450.soplex: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-malloc-options=3 |
453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
410.bwaves: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) |
437.leslie3d: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -opt-prefetch |
459.GemsFDTD: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 |
465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 |
435.gromacs: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 |
436.cactusADM: | basepeak = yes |
454.calculix: | basepeak = yes |
481.wrf: | basepeak = yes |
