CPU2006 license: | 001176 | Test date: | Apr-2010 |
---|---|---|---|
Test sponsor: | Supermicro | Hardware Availability: | Mar-2010 |
Tested by: | Supermicro | Software Availability: | Nov-2009 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X5670 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.33 GHz |
CPU MHz: | 2933 |
FPU: | Integrated |
CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 24 GB (6 x 4 GB DDR3-1333 RDIMM, ECC, CL9) |
Disk Subsystem: | 1 x 300 GB SATA II, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 (x86_64) Kernel 2.6.27.19-5-default |
Compiler: | Intel C++ and Fortran Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064, l_cprof_p_11.1.064 |
Auto Parallel: | Yes |
File System: | ReiserFS |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

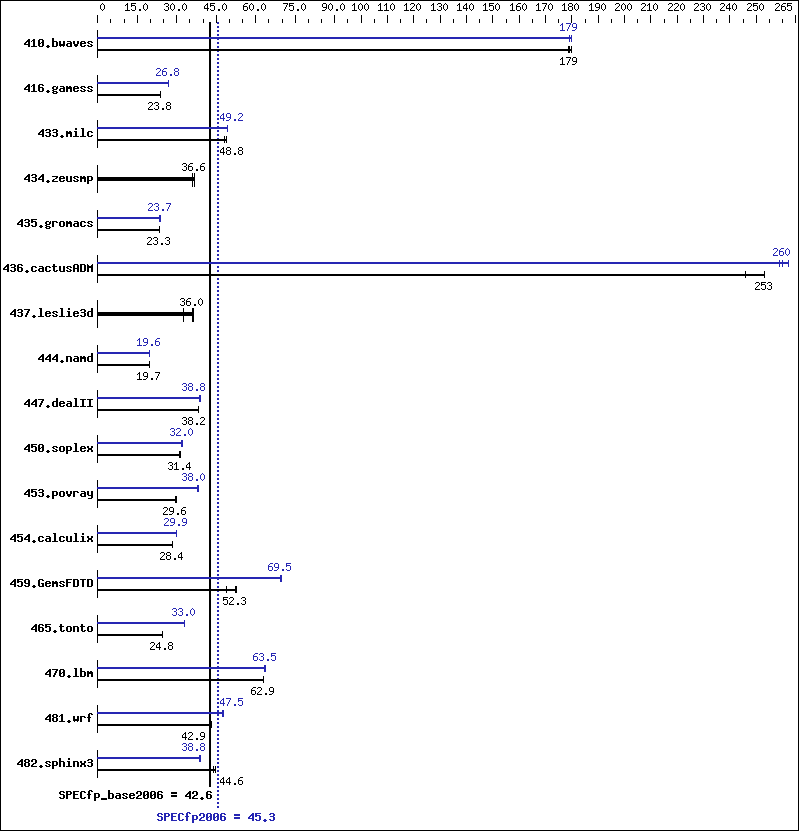

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
410.bwaves | 76.1 | 179 | 75.5 | 180 | 75.9 | 179 | 75.9 | 179 | 75.9 | 179 | 75.5 | 180 |
416.gamess | 822 | 23.8 | 823 | 23.8 | 826 | 23.7 | 733 | 26.7 | 732 | 26.8 | 731 | 26.8 |
433.milc | 188 | 48.8 | 188 | 48.8 | 191 | 48.1 | 187 | 49.2 | 187 | 49.1 | 186 | 49.3 |
434.zeusmp | 249 | 36.6 | 249 | 36.6 | 252 | 36.1 | 249 | 36.6 | 249 | 36.6 | 252 | 36.1 |
435.gromacs | 306 | 23.3 | 306 | 23.3 | 307 | 23.3 | 302 | 23.7 | 302 | 23.6 | 302 | 23.7 |
436.cactusADM | 47.2 | 253 | 48.6 | 246 | 47.2 | 253 | 45.6 | 262 | 46.0 | 260 | 46.2 | 259 |
437.leslie3d | 261 | 36.0 | 288 | 32.7 | 260 | 36.2 | 261 | 36.0 | 288 | 32.7 | 260 | 36.2 |
444.namd | 407 | 19.7 | 407 | 19.7 | 408 | 19.7 | 409 | 19.6 | 410 | 19.6 | 409 | 19.6 |
447.dealII | 299 | 38.2 | 298 | 38.4 | 299 | 38.2 | 295 | 38.8 | 297 | 38.5 | 295 | 38.8 |
450.soplex | 265 | 31.5 | 268 | 31.2 | 265 | 31.4 | 261 | 32.0 | 263 | 31.7 | 260 | 32.0 |
453.povray | 179 | 29.6 | 180 | 29.5 | 179 | 29.7 | 140 | 38.1 | 140 | 38.0 | 140 | 37.9 |
454.calculix | 289 | 28.5 | 291 | 28.4 | 291 | 28.4 | 276 | 29.9 | 276 | 29.9 | 277 | 29.8 |
459.GemsFDTD | 217 | 48.9 | 202 | 52.5 | 203 | 52.3 | 153 | 69.5 | 153 | 69.4 | 152 | 69.7 |
465.tonto | 397 | 24.8 | 397 | 24.8 | 399 | 24.7 | 299 | 33.0 | 298 | 33.0 | 298 | 33.0 |
470.lbm | 218 | 62.9 | 218 | 63.0 | 218 | 62.9 | 216 | 63.5 | 216 | 63.5 | 217 | 63.4 |
481.wrf | 260 | 43.0 | 260 | 42.9 | 260 | 42.9 | 235 | 47.5 | 235 | 47.6 | 236 | 47.4 |
482.sphinx3 | 442 | 44.1 | 435 | 44.8 | 437 | 44.6 | 505 | 38.6 | 502 | 38.8 | 502 | 38.8 |
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run
Fan speed set to Full Speed in BIOS Setup. As tested, the system used a Compuware CPS-5611-3A2LF power supply and 2 SNK-P0035AP4 heat sinks, along with 4 Nidec UltraFlo T92T12MMA7-57 T072 and 1 EVERCOOL EC6025H12S cooling fans.
OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter KMP_STACKSIZE set to 200M Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
Same as Base Portability Flags
433.milc: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
470.lbm: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -parallel -ansi-alias -auto-ilp32 |
482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 -unroll2 |
444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias -scalar-rep- -auto-ilp32 |
450.soplex: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -auto-ilp32 |
453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
410.bwaves: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -parallel |
416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | basepeak = yes |
437.leslie3d: | basepeak = yes |
459.GemsFDTD: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -opt-prefetch -parallel |
465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -inline-calloc -opt-malloc-options=3 -auto -unroll4 |
435.gromacs: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 |
436.cactusADM: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -opt-prefetch -parallel -auto-ilp32 |
454.calculix: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 |
481.wrf: | Same as 454.calculix |
