CPU2006 license: | 11 | Test date: | May-2010 |
---|---|---|---|
Test sponsor: | IBM Corporation | Hardware Availability: | Jun-2010 |
Tested by: | IBM Corporation | Software Availability: | Jan-2010 |
Hardware | |
---|---|
CPU Name: | Intel Xeon L5630 |
CPU Characteristics: | Intel Turbo Boost Technology up to 2.40 GHz |
CPU MHz: | 2133 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 48 GB (12 x 4 GB PC3-10600R-ECC, CL9) |
Disk Subsystem: | 1 x 73 GB SAS, 15000RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SuSe Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-default |
Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
Auto Parallel: | Yes |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V8.1 |

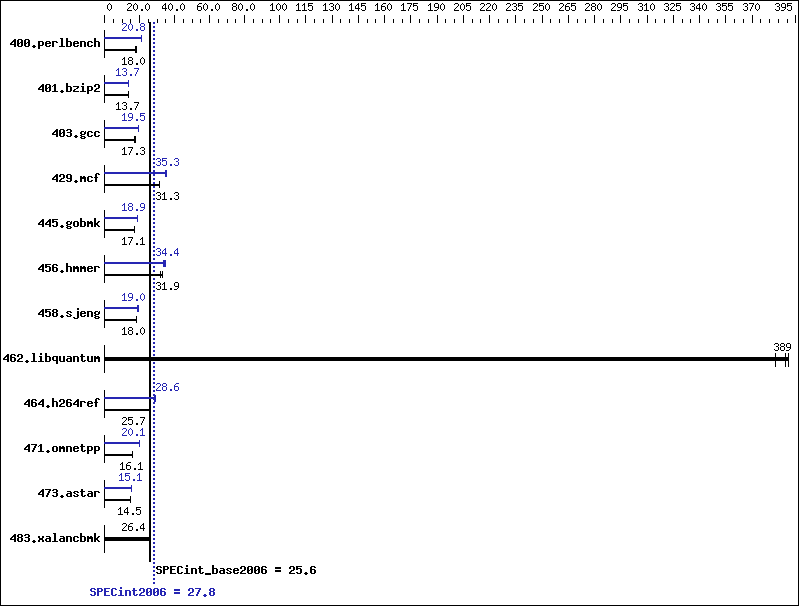

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
400.perlbench | 542 | 18.0 | 550 | 17.8 | 537 | 18.2 | 470 | 20.8 | 471 | 20.8 | 469 | 20.8 |
401.bzip2 | 697 | 13.9 | 708 | 13.6 | 705 | 13.7 | 705 | 13.7 | 709 | 13.6 | 703 | 13.7 |
403.gcc | 466 | 17.3 | 465 | 17.3 | 465 | 17.3 | 414 | 19.5 | 414 | 19.5 | 413 | 19.5 |
429.mcf | 293 | 31.1 | 291 | 31.3 | 291 | 31.3 | 264 | 34.6 | 258 | 35.3 | 258 | 35.3 |
445.gobmk | 614 | 17.1 | 615 | 17.1 | 612 | 17.1 | 558 | 18.8 | 556 | 18.9 | 555 | 18.9 |
456.hmmer | 283 | 33.0 | 293 | 31.9 | 292 | 31.9 | 280 | 33.3 | 270 | 34.5 | 271 | 34.4 |
458.sjeng | 673 | 18.0 | 673 | 18.0 | 672 | 18.0 | 642 | 18.8 | 637 | 19.0 | 627 | 19.3 |
462.libquantum | 53.2 | 389 | 54.0 | 383 | 53.0 | 391 | 53.2 | 389 | 54.0 | 383 | 53.0 | 391 |
464.h264ref | 854 | 25.9 | 860 | 25.7 | 867 | 25.5 | 761 | 29.1 | 773 | 28.6 | 776 | 28.5 |
471.omnetpp | 388 | 16.1 | 389 | 16.1 | 388 | 16.1 | 311 | 20.1 | 312 | 20.0 | 312 | 20.1 |
473.astar | 483 | 14.5 | 486 | 14.5 | 484 | 14.5 | 464 | 15.1 | 463 | 15.1 | 464 | 15.1 |
483.xalancbmk | 262 | 26.4 | 261 | 26.4 | 266 | 25.9 | 262 | 26.4 | 261 | 26.4 | 266 | 25.9 |
Turbo Mode Enable Turbo Boost set to Traditional CPU C State Enable Data Reuse Disable
Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502 'ulimit -s unlimited' was used to set the stack size to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
471.omnetpp: | -DSPEC_CPU_LP64 |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
icc -m64 | |
400.perlbench: | icc -m32 |
429.mcf: | icc -m32 |
445.gobmk: | icc -m32 |
464.h264ref: | icc -m32 |
icpc -m64 | |
471.omnetpp: | icpc -m32 |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias -opt-prefetch |
401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -static(pass 2) -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -auto-ilp32 |
429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 |
462.libquantum: | basepeak = yes |
464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
483.xalancbmk: | basepeak = yes |
