| CPU2006 license: | 001176 | Test date: | May-2010 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | Mar-2010 |
| Tested by: | Supermicro | Software Availability: | Jan-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X3450 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.20 GHz |
| CPU MHz: | 2666 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 16 GB (4 x 4 GB DDR3-1333 RDIMM, ECC, CL9) |
| Disk Subsystem: | 1 x 160 GB SATA II, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) Kernel 2.6.27.19-5-default |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

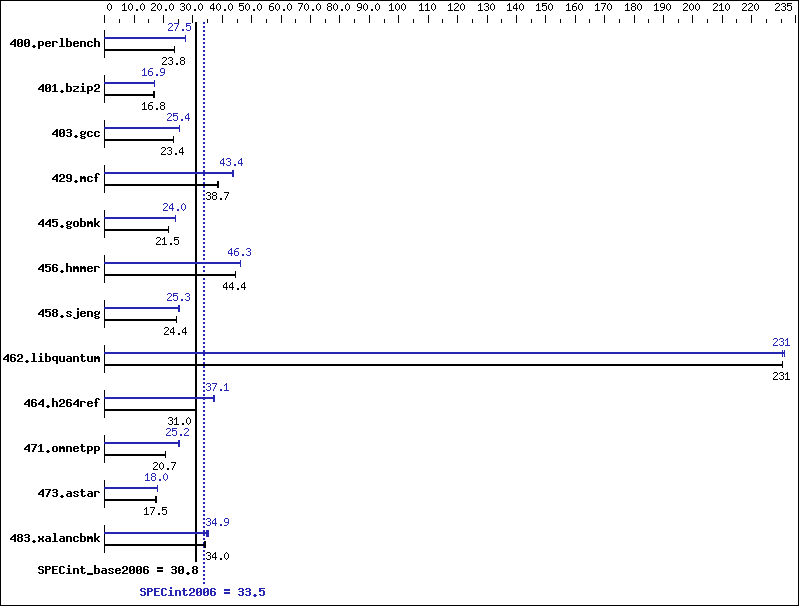

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 412 | 23.7 | 411 | 23.8 | 411 | 23.8 | 356 | 27.5 | 355 | 27.5 | 354 | 27.6 |
| 401.bzip2 | 576 | 16.8 | 576 | 16.7 | 575 | 16.8 | 571 | 16.9 | 573 | 16.8 | 571 | 16.9 |
| 403.gcc | 345 | 23.4 | 344 | 23.4 | 345 | 23.3 | 316 | 25.5 | 316 | 25.4 | 316 | 25.4 |
| 429.mcf | 236 | 38.7 | 236 | 38.7 | 238 | 38.4 | 210 | 43.3 | 209 | 43.7 | 210 | 43.4 |
| 445.gobmk | 487 | 21.5 | 487 | 21.5 | 487 | 21.5 | 435 | 24.1 | 437 | 24.0 | 436 | 24.0 |
| 456.hmmer | 210 | 44.4 | 210 | 44.4 | 211 | 44.3 | 202 | 46.3 | 202 | 46.3 | 202 | 46.2 |
| 458.sjeng | 496 | 24.4 | 496 | 24.4 | 496 | 24.4 | 478 | 25.3 | 477 | 25.4 | 480 | 25.2 |
| 462.libquantum | 89.9 | 231 | 89.8 | 231 | 89.8 | 231 | 89.9 | 231 | 89.7 | 231 | 89.8 | 231 |
| 464.h264ref | 715 | 31.0 | 714 | 31.0 | 714 | 31.0 | 594 | 37.2 | 596 | 37.1 | 596 | 37.1 |
| 471.omnetpp | 302 | 20.7 | 303 | 20.6 | 302 | 20.7 | 248 | 25.2 | 246 | 25.4 | 248 | 25.2 |
| 473.astar | 403 | 17.4 | 401 | 17.5 | 402 | 17.5 | 389 | 18.1 | 390 | 18.0 | 389 | 18.0 |
| 483.xalancbmk | 204 | 33.9 | 202 | 34.2 | 203 | 34.0 | 198 | 34.9 | 198 | 34.8 | 196 | 35.2 |
Operating System Notes
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter
Platform Notes
Fan speed set to Full Speed in BIOS Setup. As tested, the system used a Supermicro PWS-721P-1R power supply, SNK-P0046P heatsink, and FAN-0077L cooling fan.
General Notes
Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
