SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Supermicro (Test Sponsor: Advanced Micro Devices)

A+ Server 1022G-NTF, AMD Opteron 6128

SPECfp®2006 = 28.1

CPU2006 license: 49 Test date: May-2010
Test sponsor: Advanced Micro Devices Hardware Availability: Mar-2010
Tested by: Advanced Micro Devices Software Availability: May-2010

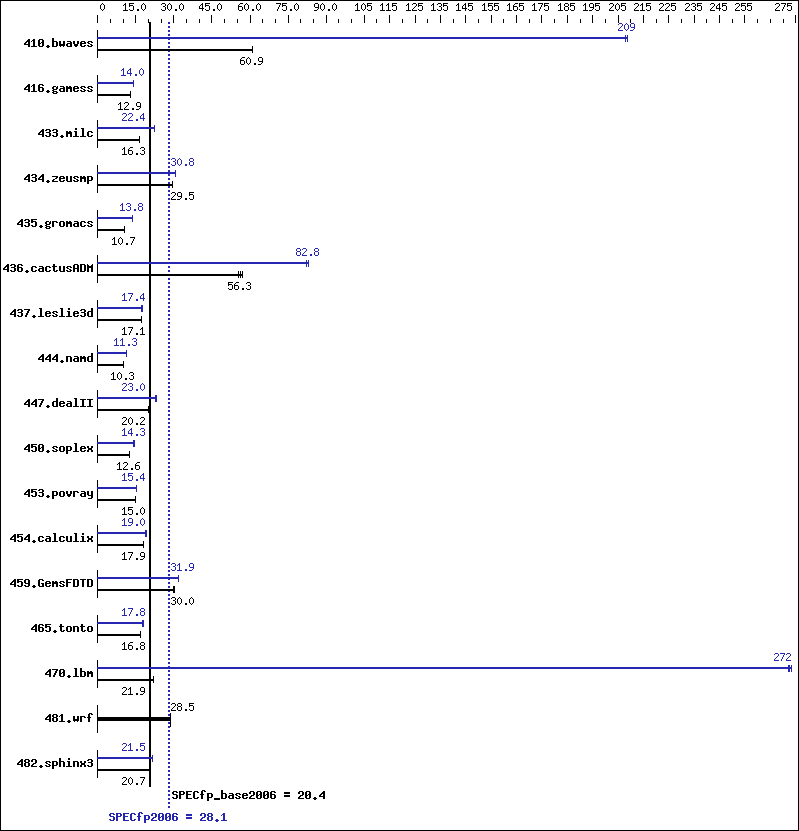

Benchmark results graph
Hardware
CPU Name: AMD Opteron 6128
CPU Characteristics:
CPU MHz: 2000
FPU: Integrated
CPU(s) enabled: 16 cores, 2 chips, 8 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 12 MB I+D on chip per chip, 6 MB shared / 4 cores
Other Cache: None
Memory: 64 GB (16 x 4 GB, DDR3-1333, CL9, Reg, Dual Rank)
Disk Subsystem: 1 x 250 GB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 5.4,
Advanced Platform with patch RHSA-2009:1670,
Kernel 2.6.18-164.9.1.el5
Compiler: x86 Open64 4.2.3.2 Compiler Suite (from AMD)
Auto Parallel: Yes
File System: ext3
System State: Run level 3 (Full multiuser with network)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: binutils 2.18

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 223 60.9 223 60.9 223 60.9 65.2 209   65.1 209   65.3 208
416.gamess 1517 12.9 1518 12.9 1521 12.9 1392   14.1 1396   14.0 1397   14.0
433.milc 556 16.5 565 16.3 564 16.3 411   22.3 408   22.5 409   22.4
434.zeusmp 308 29.5 308 29.5 309 29.5 296   30.8 296   30.8 296   30.7
435.gromacs 665 10.7 666 10.7 667 10.7 516   13.8 516   13.8 516   13.8
436.cactusADM 215 55.6 212 56.3 209 57.1 144   82.8 145   82.4 144   83.0
437.leslie3d 550 17.1 546 17.2 551 17.1 542   17.4 537   17.5 543   17.3
444.namd 777 10.3 776 10.3 777 10.3 711   11.3 708   11.3 707   11.3
447.dealII 566 20.2 567 20.2 565 20.2 498   23.0 499   22.9 498   23.0
450.soplex 659 12.7 662 12.6 666 12.5 583   14.3 583   14.3 584   14.3
453.povray 355 15.0 356 15.0 357 14.9 346   15.4 346   15.4 346   15.4
454.calculix 459 18.0 460 17.9 462 17.9 434   19.0 434   19.0 434   19.0
459.GemsFDTD 354 30.0 353 30.0 353 30.0 333   31.9 333   31.9 333   31.9
465.tonto 584 16.8 584 16.8 583 16.9 550   17.9 553   17.8 554   17.8
470.lbm 628 21.9 628 21.9 629 21.8 50.3 273   50.5 272   50.4 272
481.wrf 392 28.5 392 28.5 392 28.5 392   28.5 392   28.5 392   28.5
482.sphinx3 945 20.6 942 20.7 941 20.7 907   21.5 908   21.5 909   21.4

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set vm/nr_hugepages=4000 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

cpuspeed stop was used to set the CPU frequency to its maximum.

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/root/work/cpu2006/amd1002mc-speed-libs-revA/64:/root/work/cpu2006/amd1002mc-speed-libs-revA/32"
O64_OMP_AFFINITY_MAP = "0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15"
O64_OMP_SPIN_USER_LOCK = "true"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -march=barcelona   -Ofast   -HP:bdt=2m:heap=2m

C++ benchmarks:

 -march=barcelona   -Ofast   -static   -INLINE:aggressive=on   -HP:bdt=2m:heap=2m

Fortran benchmarks:

 -march=barcelona   -Ofast   -apo   -LNO:parallel_overhead=10000   -LNO:fusion_peeling_limit=0   -HP:bdt=2m:heap=2m

Benchmarks using both Fortran and C:

 -march=barcelona   -Ofast   -HP:bdt=2m:heap=2m   -apo   -LNO:parallel_overhead=10000   -LNO:fusion_peeling_limit=0

Peak Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -march=barcelona   -Ofast   -apo   -CG:movnti=1   -CG:local_sched_alg=1   -CG:locs_shallow_depth=1   -CG:compute_to=on   -HP:bdt=2m:heap=2m   -LNO:prefetch=3
470.lbm:  -march=barcelona   -Ofast   -mso   -apo   -CG:sse_cse_regs=0   -LNO:prefetch_ahead=4   -CG:locs_shallow_depth=1   -CG:cmp_peep=on   -CG:compute_to=on   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -OPT:keep_ext=on   -OPT:alias=restricted   -m3dnow   -IPA:inline=off
482.sphinx3:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:malloc_alg=2   -CG:sse_cse_regs=0   -CG:locs_shallow_depth=1   -CG:cmp_peep=on   -CG:local_sched_alg=1   -INLINE:aggressive=on

C++ benchmarks:

444.namd:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:ignore_feedback=off   -CG:local_sched_alg=2   -CG:load_exe=0   -CG:compute_to=on   -OPT:unroll_size=256   -fno-exceptions   -HP:bdt=2m:heap=2m
447.dealII:  -march=barcelona   -Ofast   -static   -INLINE:aggressive=on   -LNO:opt=0   -fno-emit-exceptions   -m32   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -HP:bdt=2m:heap=2m   -GRA:unspill=on   -CG:cmp_peep=on   -TENV:frame_pointer=off
450.soplex:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -INLINE:aggressive=on   -OPT:IEEE_arith=3   -OPT:IEEE_NaN_Inf=off   -OPT:fold_unsigned_relops=on   -CG:load_exe=0   -fno-exceptions   -m32   -HP:bdt=2m:heap=2m
453.povray:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -INLINE:aggressive=on   -HP:bdt=2m:heap=2m

Fortran benchmarks:

410.bwaves:  -march=barcelona   -Ofast   -apo   -OPT:malloc_alg=2   -CG:use_prefetchnta=on   -CG:cmp_peep=on   -LNO:blocking=off   -LNO:prefetch=3   -LNO:prefetch_ahead=5   -LNO:ignore_feedback=off   -LNO:apo_use_feedback=on   -WOPT:aggstr=0
416.gamess:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:fu=6   -LNO:blocking=0   -LNO:prefetch=0   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256   -HP:bdt=2m:heap=2m
434.zeusmp:  -march=barcelona   -Ofast   -apo   -LNO:blocking=off   -LNO:interchange=off   -LNO:fusion_peeling_limit=0   -OPT:treeheight=on   -OPT:unroll_size=256   -CG:cmp_peep=on   -CG:compute_to=on   -GRA:prioritize_by_density=on   -HP:bdt=2m:heap=2m
437.leslie3d:  -march=barcelona   -Ofast   -apo   -OPT:unroll_size=256   -LNO:prefetch_ahead=4   -LNO:parallel_overhead=32768   -GRA:prioritize_by_density=on   -m3dnow   -HP:bdt=2m:heap=2m
459.GemsFDTD:  -march=barcelona   -Ofast   -apo   -LNO:fission=2   -LNO:prefetch_ahead=1   -CG:load_exe=0   -CG:local_sched_alg=1   -HP
465.tonto:  -march=barcelona   -Ofast   -apo   -OPT:alias=no_f90_pointer_alias   -LNO:blocking=off   -CG:load_exe=1   -IPA:plimit=525   -HP

Benchmarks using both Fortran and C:

435.gromacs:  -march=barcelona   -Ofast   -apo   -OPT:rsqrt=2   -HP:bdt=2m:heap=2m
436.cactusADM:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -apo   -LANG:heap_allocation_threshold=1000   -LNO:prefetch_ahead=1   -HP:bdt=2m:heap=2m
454.calculix:  -march=barcelona   -Ofast   -LNO:prefetch_ahead=30   -CG:load_exe=0   -CG:ptr_load_use=0   -CG:local_sched_alg=2   -CG:compute_to=on   -WOPT:unroll=2   -GRA:optimize_boundary=on   -HP:bdt=2m:heap=2m   -apo
481.wrf:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-423-flags-speed-revA.html,
http://www.spec.org/cpu2006/flags/amd-platform-speed-revA.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/x86-open64-423-flags-speed-revA.xml,
http://www.spec.org/cpu2006/flags/amd-platform-speed-revA.xml.
