SPEC® CFP2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

Oracle Corporation

Sun Fire X4470 (Intel Xeon X7560 2.26GHz)

CPU2006 license: 6 Test date: May-2010
Test sponsor: Oracle Corporation Hardware Availability: Aug-2010
Tested by: Oracle Corporation Software Availability: Jun-2010

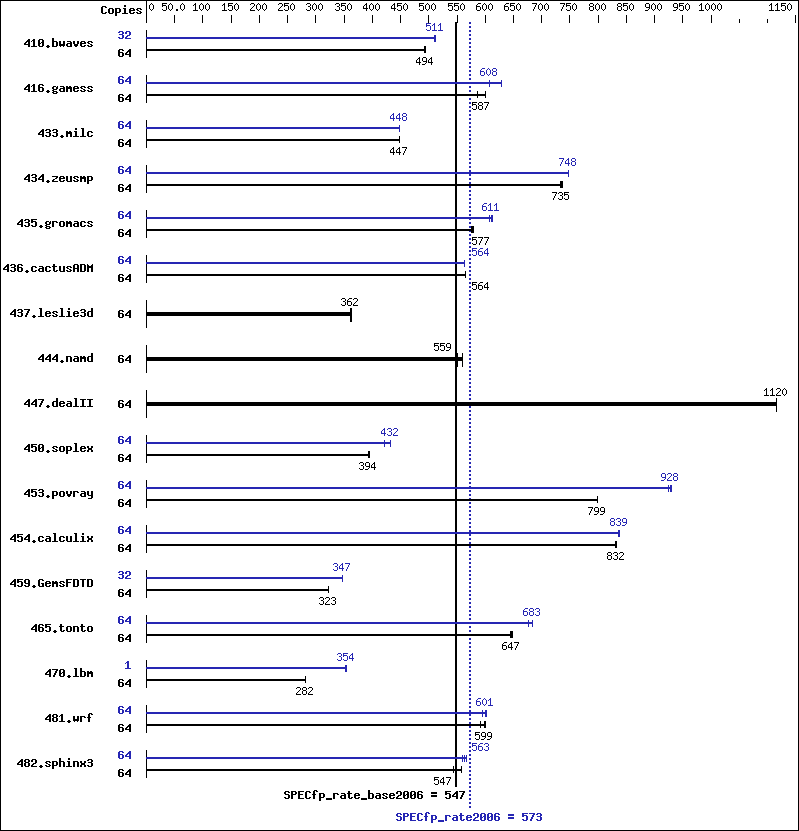

Benchmark results graph
Hardware
CPU Name: Intel Xeon X7560
CPU Characteristics: Intel Turbo Boost Technology up to 2.67 GHz
CPU MHz: 2266
FPU: Integrated
CPU(s) enabled: 32 cores, 4 chips, 8 cores/chip, 2 threads/core
CPU(s) orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 24 MB I+D on chip per chip
Other Cache: None
Memory: 256 GB (64x4GB, DDR3-1066 CL7 dual-rank ECC Reg)
Disk Subsystem: 1 x 500 GB, SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Oracle Solaris 10 10/09
Compiler: Oracle Solaris Studio Express 6/10
Auto Parallel: Yes
File System: zfs
System State: Default
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: Apache C++ Standard Library V4.2.1

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 64 1769 492 1762 494 1759 494 32 851   511 851   511 851   511
416.gamess 64 2136 587 2088 600 2135 587 64 2062   608 1991   629 2061   608
433.milc 64 1313 447 1313 447 1313 448 64 1313   448 1313   448 1312   448
434.zeusmp 64 793 735 791 736 794 734 64 780   747 779   748 779   748
435.gromacs 64 789 580 792 577 794 575 64 746   612 751   608 748   611
436.cactusADM 64 1355 565 1355 564 1355 564 64 1356   564 1356   564 1356   564
437.leslie3d 64 1659 363 1662 362 1666 361 64 1659   363 1662   362 1666   361
444.namd 64 918 559 932 551 918 559 64 918   559 932   551 918   559
447.dealII 64 656 1120 656 1120 656 1120 64 656   1120 656   1120 656   1120
450.soplex 64 1360 393 1355 394 1353 395 64 1266   422 1237   432 1237   432
453.povray 64 426 798 426 799 426 799 64 368   925 366   931 367   928
454.calculix 64 636 831 634 833 635 832 64 631   837 630   839 630   839
459.GemsFDTD 64 2102 323 2105 323 2104 323 32 979   347 980   347 978   347
465.tonto 64 971 648 973 647 978 644 64 922   683 930   677 921   684
470.lbm 64 3123 282 3123 282 3123 282 1 38.8 354 38.9 353 38.9 354
481.wrf 64 1209 591 1189 601 1193 599 64 1189   601 1187   602 1202   595
482.sphinx3 64 2279 547 2238 557 2298 543 64 2217   563 2199   567 2226   560

Compiler Invocation Notes

The Apache C++ Standard	Library	V4.2.1 was installed from
http://stdcxx.apache.org/download.html using:
   alias gmake=specmake
   gmake BUILDTYPE=8D CONFIG=sunpro.config

Submit Notes

The config file option 'submit' was used.

Operating System Notes

ulimit -s unlimited  (shell)

/etc/system parameters
   tune_t_fsflushr=10
   autoup=900
   zfs:zfs_arc_max = 0x10000000
   lpg_alloc_prefer=1

Platform Notes


  Default BIOS settings used.

General Notes

Environment variables set by runspec before the start of the run:
SUNW_MP_PROCBIND = "TRUE"
SUNW_MP_THR_IDLE = "SPIN"

447.dealII (peak): "apache_stdcxx_4_2_1" src.alt was used.

447.dealII (base): "apache_stdcxx_4_2_1" src.alt was used.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_WORDS_LITTLEENDIAN
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -xipo=2   -m64   -xpagesize=2M   -xalias_level=std

C++ benchmarks:

 -fast   -xipo=2   -m64   -xpagesize=2M   -xalias_level=compatible   -library=no%Cstd   -I/data1/stdcxx-4.2.1/include   -I/data1/stdcxx-4.2.1/build/include   -L/data1/stdcxx-4.2.1/build/lib   -R/data1/stdcxx-4.2.1/build/lib   -lstd8D

Fortran benchmarks:

 -fast   -xipo=2   -m64   -xpagesize=2M

Benchmarks using both Fortran and C:

 -fast(cc)   -xipo=2   -m64   -xpagesize=2M   -xalias_level=std   -fast(f90)

Base Other Flags

C benchmarks:

 -V   -#   -xjobs=64

C++ benchmarks:

 -verbose=diags,version   -xjobs=64

Fortran benchmarks:

 -V   -v   -xjobs=64

Benchmarks using both Fortran and C:

 -V   -#   -xjobs=64   -v

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Portability Flags

436.cactusADM:  -DSPEC_CPU_LP64
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_WORDS_LITTLEENDIAN

Peak Optimization Flags

C benchmarks:

433.milc:  -fast   -xipo=2   -m64   -xpagesize=2M   -xalias_level=std
470.lbm:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xautopar   -xreduction   -W2,-Aparallel:nthreads=64
482.sphinx3:  -fast   -xipo=2   -m64   -xpagesize=2M   -xalias_level=std   -xunroll=3   -xprefetch=no%auto

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  basepeak = yes
450.soplex:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=2M   -xalias_level=compatible   -library=stlport4   -m32   -qoption iropt -Rujam   -qoption iropt -Rtile
453.povray:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xvector=no%simd   -xalias_level=compatible   -library=stlport4

Fortran benchmarks:

410.bwaves:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M
416.gamess:  -fast   -xipo=2   -m64   -xpagesize=2M   -xunroll=1   -xvector=no%simd
434.zeusmp:  Same as 410.bwaves
437.leslie3d:  basepeak = yes
459.GemsFDTD:  Same as 410.bwaves
465.tonto:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xvector=lib   -xalias   -lbsdmalloc

Benchmarks using both Fortran and C:

435.gromacs:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xipo=2   -m64   -xpagesize=2M   -Qoption ube -fsimple=3
436.cactusADM:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m64   -fast(cc)   -fast(f90)   -xipo=0   -xpagesize=2M   -xprefetch_level=2   -lumem
454.calculix:  -fast(cc)   -fast(f90)   -xipo=2   -m64   -xpagesize=2M   -xunroll=3   -xprefetch_level=2   -xprefetch_auto_type=indirect_array_access
481.wrf:  -fast(cc)   -fast(f90)   -xipo=2   -m64   -xpagesize=2M

Peak Other Flags

C benchmarks:

 -V   -#   -xjobs=64

C++ benchmarks:

 -verbose=diags,version   -xjobs=64

Fortran benchmarks:

 -V   -v   -xjobs=64

Benchmarks using both Fortran and C:

 -V   -#   -xjobs=64   -v

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio-x86_64.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio-x86_64.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2016 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Tue Sep 13 11:40:26 2016 by SPEC CPU2006 HTML formatter v6932.
Originally published on 8 July 2010.
