SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Oracle Corporation

Sun Fire X4470 (Intel Xeon X7560 2.26GHz)

CPU2006 license: 6 Test date: May-2010
Test sponsor: Oracle Corporation Hardware Availability: Aug-2010
Tested by: Oracle Corporation Software Availability: Jun-2010

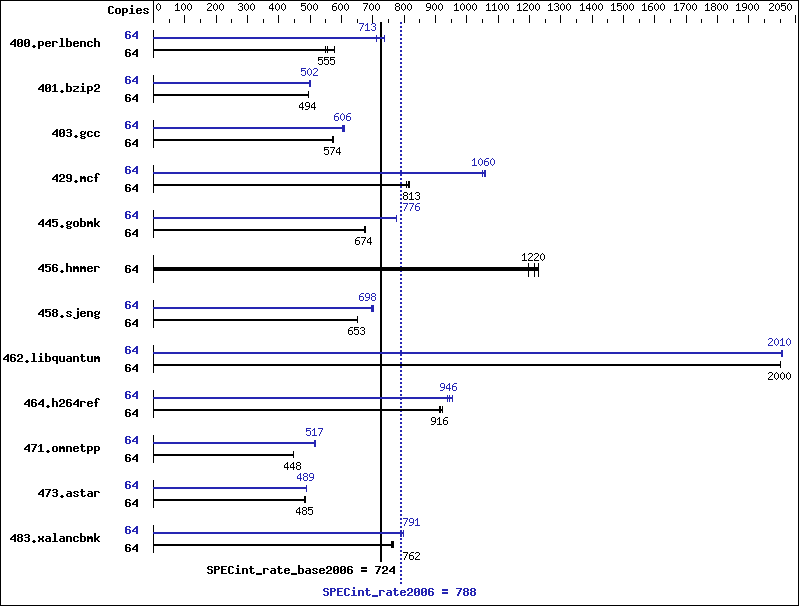

Benchmark results graph
Hardware
CPU Name: Intel Xeon X7560
CPU Characteristics: Intel Turbo Boost Technology up to 2.67 GHz
CPU MHz: 2266
FPU: Integrated
CPU(s) enabled: 32 cores, 4 chips, 8 cores/chip, 2 threads/core
CPU(s) orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 24 MB I+D on chip per chip
Other Cache: None
Memory: 256 GB (64x4GB, DDR3-1066 CL7 dual-rank ECC Reg)
Disk Subsystem: 1 x 500 GB, SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Oracle Solaris 10 10/09
Compiler: Oracle Solaris Studio Express 6/10
Auto Parallel: No
File System: zfs
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 9.01 for x64

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 64 1082 578 1127 555 1139 549 64 850 736 880 710 877 713
401.bzip2 64 1248 495 1250 494 1251 494 64 1231 502 1239 499 1231 502
403.gcc 64 895 576 897 574 902 571 64 850 606 854 603 847 608
429.mcf 64 721 809 714 817 718 813 64 551 1060 552 1060 556 1050
445.gobmk 64 997 673 994 675 996 674 64 866 775 864 777 865 776
456.hmmer 64 491 1220 499 1200 486 1230 64 491 1220 499 1200 486 1230
458.sjeng 64 1186 653 1187 653 1187 653 64 1105 701 1111 697 1110 698
462.libquantum 64 663 2000 663 2000 663 2000 64 661 2010 661 2000 661 2010
464.h264ref 64 1549 914 1547 916 1533 924 64 1498 946 1483 955 1511 937
471.omnetpp 64 893 448 894 448 894 447 64 774 517 777 515 774 517
473.astar 64 930 483 926 485 926 485 64 918 489 919 489 920 488
483.xalancbmk 64 576 767 579 762 580 761 64 554 797 561 788 558 791

Submit Notes

The config file option 'submit' was used.

Operating System Notes

 ulimit -s unlimited  (shell)

 /etc/system parameters
    tune_t_fsflushr=10
    autoup=900
    zfs:zfs_arc_max = 0x10000000
    lpg_alloc_prefer=1

Platform Notes


   Default BIOS settings used.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_X64   -DSPEC_CPU_LP64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_SOLARIS   -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_SOLARIS   -DSPEC_CPU_LP64
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -fast   -xipo=2   -m64   -xaddr32=yes   -xpagesize=2M

C++ benchmarks:

 -fast   -xipo=2   -xpagesize=2M   -xalias_level=compatible   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap   -library=stlport4

Base Other Flags

C benchmarks:

 -V   -#   -xjobs=64

C++ benchmarks:

 -verbose=diags,version   -xjobs=64

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_X64   -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=1   -m64   -xalias_level=std   -lbsdmalloc
401.bzip2:  -fast   -xipo=2   -m64   -xpagesize=2M   -xalias_level=std   -lumem
403.gcc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=2M   -W2,-Rujam   -W2,-Rtile   -m64   -xalias_level=std
429.mcf:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m32   -xpagesize=2M   -xalias_level=strong   -xprefetch=no%auto   -lbsdmalloc
445.gobmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -m64   -xpagesize=2M   -xrestrict   -xalias_level=strong
456.hmmer:  basepeak = yes
458.sjeng:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xalias_level=strong
462.libquantum:  -fast   -xipo=2   -m64   -xalias_level=std
464.h264ref:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xalias_level=strong   -xrestrict

C++ benchmarks:

471.omnetpp:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=2M   -library=stlport4   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap
473.astar:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xalias_level=compatible   -library=stlport4   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap64
483.xalancbmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xunroll=2   -xpagesize=2M   -xalias_level=compatible   -library=stlport4   -m32   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap

Peak Other Flags

C benchmarks:

 -V   -#   -xjobs=64

C++ benchmarks:

 -verbose=diags,version   -xjobs=64

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio-x86_64.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio-x86_64.xml.
