SPEC® CFP2006 Result

Copyright 2006-2012 Standard Performance Evaluation Corporation

SGI

SGI Altix UV 1000 (Intel Xeon X7560, 2.26 GHz)

SPECfp®_rate2006 = Not Run

CPU2006 license: 4 Test date: Jun-2010
Test sponsor: SGI Hardware Availability: Jun-2010
Tested by: SGI Software Availability: Jun-2010

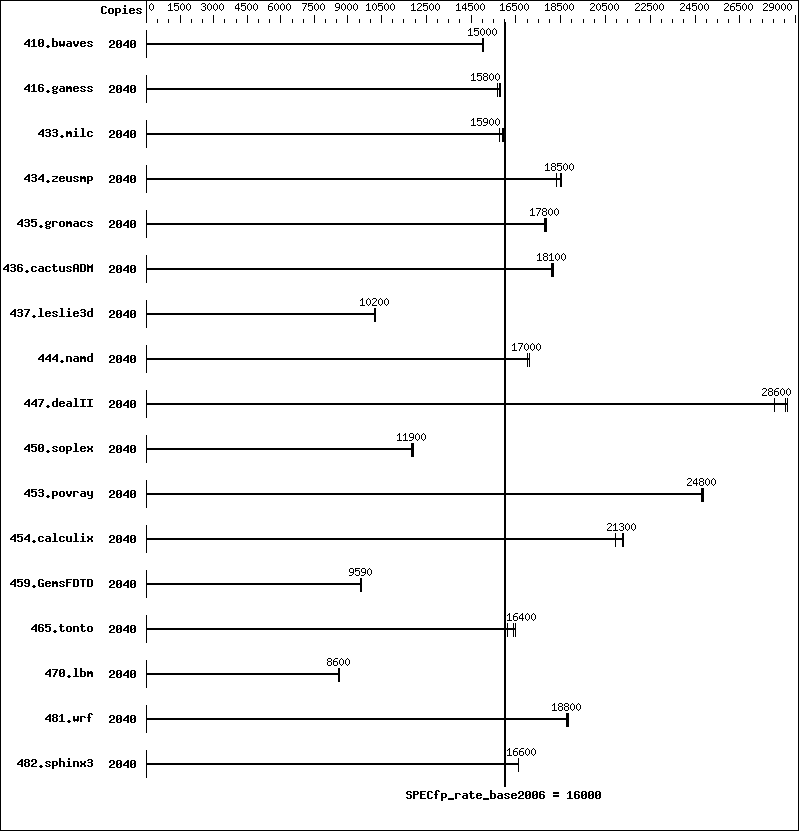

Benchmark results graph
Hardware
CPU Name: Intel Xeon X7560
CPU Characteristics: Intel Turbo Boost Technology up to 2.67 GHz
CPU MHz: 2266
FPU: Integrated
CPU(s) enabled: 1024 cores, 128 chips, 8 cores/chip, 2 threads/core
CPU(s) orderable: 2-256 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 24 MB I+D on chip per chip
Other Cache: None
Memory: 5 TB (768 x 4GB + 256 x 8GB dual-rank DDR3-1066
CL7 RDIMMs)
Disk Subsystem: 4 TB tmpfs
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 11 (x86_64) SP1,
Kernel 2.6.32.12-0.7.1.1381.0.PTF-default
Compiler: Intel C++ and Fortran Professional Compiler for
IA32 and Intel 64, Version 11.1
Build 20091130 Package ID: l_cproc_p_11.1.064,
l_cprof_p_11.1.064
Auto Parallel: No
File System: tmpfs
System State: Multi-user, run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: Binutils 2.18.50.0.7.20080502

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 2040 1847 15000 1843 15000 1844 15000
416.gamess 2040 2536 15800 2548 15700 2526 15800
433.milc 2040 1187 15800 1177 15900 1174 15900
434.zeusmp 2040 1013 18300 1004 18500 1002 18500
435.gromacs 2040 818 17800 817 17800 816 17900
436.cactusADM 2040 1345 18100 1341 18200 1346 18100
437.leslie3d 2040 1876 10200 1878 10200 1883 10200
444.namd 2040 961 17000 957 17100 961 17000
447.dealII 2040 817 28600 815 28600 831 28100
450.soplex 2040 1435 11900 1431 11900 1428 11900
453.povray 2040 437 24800 436 24900 438 24800
454.calculix 2040 789 21300 792 21300 803 21000
459.GemsFDTD 2040 2258 9590 2260 9580 2255 9600
465.tonto 2040 1218 16500 1247 16100 1224 16400
470.lbm 2040 3257 8600 3255 8610 3263 8590
481.wrf 2040 1215 18800 1208 18900 1213 18800
482.sphinx3 2040 2393 16600 2393 16600 2395 16600

Submit Notes

The config file option 'submit' was used.
 numactl was used to bind copies to the cores

Operating System Notes

 Tmpfs filesystem set up with:
   mkdir -p /mnt/shm
   mount -t tmpfs -o size=4096g,rw,mpol=interleave tmpfs /mnt/shm/
   The mpol=interleave option sets the NUMA memory allocation
   policy for all files to allocate from each node in turn.

General Notes

 Memory configuration:
   The 4 GB DIMMs are attached to chips 0-95;
   the 8 GB DIMMs are attached to chips 96-127.

Base Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static

C++ benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static

Fortran benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static

Benchmarks using both Fortran and C:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.1-linux64-revE.20100316.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.1-linux64-revE.20100316.xml.
