SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM System x3650 M3 (Intel Xeon E5503)

CPU2006 license: 11 Test date: Jun-2010
Test sponsor: IBM Corporation Hardware Availability: Jun-2010
Tested by: IBM Corporation Software Availability: Jan-2010

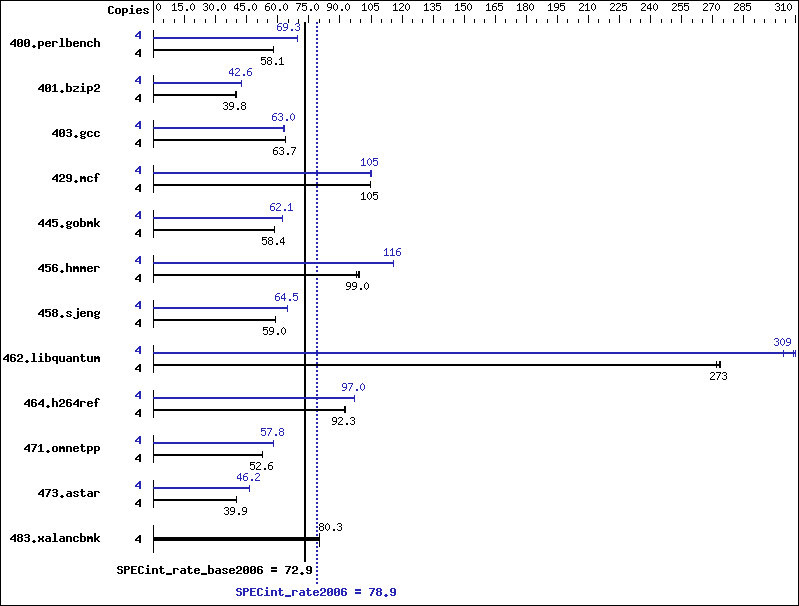

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5503
CPU Characteristics:
CPU MHz: 2000
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory: 48 GB (12 x 4 GB PC3-10600R CL9, 2 Rank)
Disk Subsystem: 1 x 73 GB SAS, 15000 RPM
Other Hardware: None
Software
Operating System: SuSe Linux Enterprise Server 11 (x86_64),
Kernel 2.6.27.19-5-default
Compiler: Intel C++ Professional Compiler for IA32 and
Intel 64, Version 11.1
Build 20091130 Package ID: l_cproc_p_11.1.064
Auto Parallel: No
File System: ext3
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V8.1

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 673 58.1 672 58.1 672 58.1 4 564 69.3 563 69.4 564 69.3
401.bzip2 4 972 39.7 969 39.8 970 39.8 4 905 42.7 905 42.6 910 42.4
403.gcc 4 505 63.8 505 63.7 507 63.6 4 512 62.9 511 63.0 510 63.1
429.mcf 4 348 105   348 105   348 105   4 348 105   348 105   347 105
445.gobmk 4 718 58.4 718 58.4 718 58.4 4 675 62.1 675 62.2 675 62.1
456.hmmer 4 376 99.4 377 99.0 380 98.1 4 323 116   323 116   322 116
458.sjeng 4 819 59.1 820 59.0 820 59.0 4 750 64.5 750 64.5 750 64.6
462.libquantum 4 305 272   303 273   303 273   4 273 304   268 309   267 310
464.h264ref 4 960 92.2 959 92.3 957 92.5 4 912 97.0 912 97.0 912 97.0
471.omnetpp 4 475 52.6 476 52.5 475 52.6 4 433 57.8 433 57.8 433 57.7
473.astar 4 704 39.9 703 40.0 704 39.9 4 608 46.2 609 46.1 606 46.3
483.xalancbmk 4 344 80.3 344 80.3 344 80.2 4 344 80.3 344 80.3 344 80.2

Submit Notes

The config file option 'submit' was used.
 numactl was used to bind copies to the cores

Platform Notes

 Turbo Mode Enable
 Turbo Boost set to Traditional
 CPU C State Enable

General Notes

 Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502
 'ulimit -s unlimited' was used to set the stack size to unlimited prior to run

Base Compiler Invocation

C benchmarks:

 icc -m32

C++ benchmarks:

 icpc -m32

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -opt-prefetch

C++ benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -opt-prefetch   -Wl,-z,muldefs   -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc -m32
401.bzip2:  icc -m64
456.hmmer:  icc -m64
458.sjeng:  icc -m64
462.libquantum:  icc -m64

C++ benchmarks (except as noted below):

 icpc -m32
473.astar:  icpc -m64

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -ansi-alias
401.bzip2:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -opt-prefetch   -ansi-alias   -auto-ilp32
403.gcc:  -xSSE4.2   -ipo   -O3   -no-prec-div   -static
429.mcf:  -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -opt-prefetch
445.gobmk:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -prof-use(pass 2)   -O2   -ipo   -no-prec-div   -ansi-alias
456.hmmer:  -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -unroll2   -ansi-alias   -auto-ilp32
458.sjeng:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -unroll4   -auto-ilp32
462.libquantum:  -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -auto-ilp32   -opt-prefetch
464.h264ref:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap
473.astar:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -ansi-alias   -opt-ra-region-strategy=routine   -Wl,-z,muldefs   -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.1-linux64-revE.20100804.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.1-linux64-revE.20100804.xml.
