SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant DL580 G7
(2.27 GHz, Intel Xeon X7560)

CPU2006 license: 3 Test date: Jul-2010
Test sponsor: Hewlett-Packard Company Hardware Availability: Jun-2010
Tested by: Hewlett-Packard Company Software Availability: Mar-2010

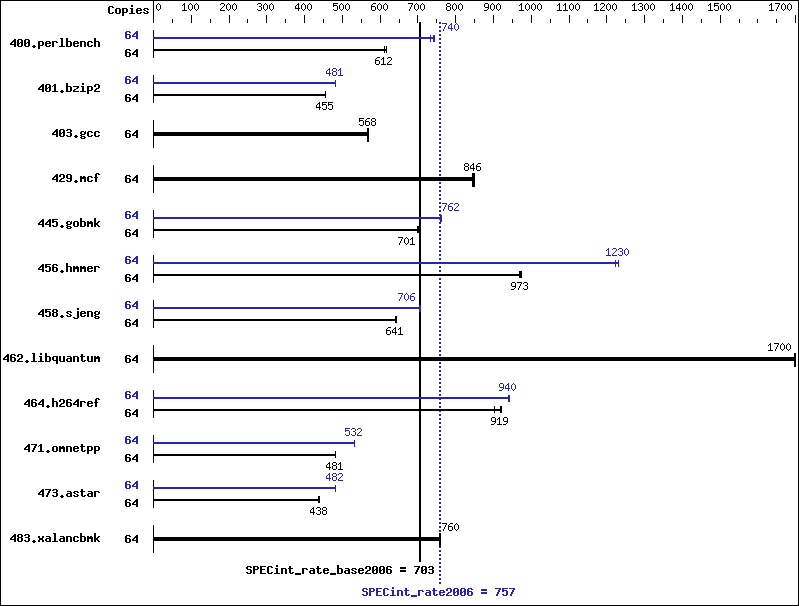

Benchmark results graph
Hardware
CPU Name: Intel Xeon X7560
CPU Characteristics: Intel Turbo Boost Technology up to 2.67 GHz
CPU MHz: 2267
FPU: Integrated
CPU(s) enabled: 32 cores, 4 chips, 8 cores/chip, 2 threads/core
CPU(s) orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 24 MB I+D on chip per chip
Other Cache: None
Memory: 1 TB (64 x 16 GB 4Rx4 PC3-8500R CL7)
Disk Subsystem: 2 x 146 GB 15 K SAS
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 5.5
Advanced Platform, Kernel 2.6.18-194.el5
Compiler: Intel C++ Compiler 11.1 for Linux
Build 20090827 Package ID: l_cproc_p_11.1.056
Auto Parallel: No
File System: ext3
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V8.1
Binutils 2.17.50.0.6-12.el5

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 64 1023 612 1024 610 1016 616 64 845 740 842 743 854 732
401.bzip2 64 1356 455 1359 455 1359 454 64 1283 481 1283 481 1284 481
403.gcc 64 907 568 904 570 909 567 64 907 568 904 570 909 567
429.mcf 64 690 846 691 845 687 850 64 690 846 691 845 687 850
445.gobmk 64 962 698 958 701 955 703 64 883 760 881 762 881 762
456.hmmer 64 616 969 614 973 614 973 64 488 1220 485 1230 485 1230
458.sjeng 64 1209 641 1208 641 1204 643 64 1096 706 1099 704 1095 707
462.libquantum 64 781 1700 781 1700 782 1700 64 781 1700 781 1700 782 1700
464.h264ref 64 1538 921 1541 919 1568 903 64 1508 939 1505 941 1506 940
471.omnetpp 64 831 481 832 481 831 481 64 752 532 752 532 753 531
473.astar 64 1025 438 1025 438 1026 438 64 932 482 932 482 932 482
483.xalancbmk 64 581 760 583 758 581 760 64 581 760 583 758 581 760

Submit Notes

The config file option 'submit' was used.
 numactl was used to bind copies to the cores

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

Platform Notes

 BIOS configuration:
  Power Profile set to Maximum Performance
  Thermal Configuration set to Increased Cooling

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -opt-prefetch

C++ benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -opt-prefetch   -Wl,-z,muldefs   -L/cpu2006/SmartHeap_8.1/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/Compiler/11.1/056/bin/intel64/icc
456.hmmer:  /opt/intel/Compiler/11.1/056/bin/intel64/icc
458.sjeng:  /opt/intel/Compiler/11.1/056/bin/intel64/icc

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -ansi-alias
401.bzip2:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -opt-prefetch   -ansi-alias   -auto-ilp32
403.gcc:  basepeak = yes
429.mcf:  basepeak = yes
445.gobmk:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -prof-use(pass 2)   -O2   -ipo   -no-prec-div   -ansi-alias
456.hmmer:  -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -unroll2   -ansi-alias   -auto-ilp32
458.sjeng:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -unroll4   -auto-ilp32
462.libquantum:  basepeak = yes
464.h264ref:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/cpu2006/SmartHeap_8.1/lib -lsmartheap
473.astar:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -ansi-alias   -opt-ra-region-strategy=routine   -Wl,-z,muldefs   -L/cpu2006/SmartHeap_8.1/lib -lsmartheap
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.1-linux64-revF.html,
http://www.spec.org/cpu2006/flags/HP-Intel-Linux-Settings-flags.20100525.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic11.1-linux64-revF.xml,
http://www.spec.org/cpu2006/flags/HP-Intel-Linux-Settings-flags.20100525.xml.
