CPU2006 license: | 19 | Test date: | Jul-2010 |
---|---|---|---|
Test sponsor: | Fujitsu | Hardware Availability: | Aug-2010 |
Tested by: | Fujitsu | Software Availability: | Jan-2010 |
Hardware | |
---|---|
CPU Name: | Intel Xeon L5609 |
CPU Characteristics: | |
CPU MHz: | 1867 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 48 GB (6x8 GB PC3-10600R, 2 rank, CL9-9-9, ECC, see add'l detail in notes) |
Disk Subsystem: | 1 x SSD SATA, 64 GB |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-default |
Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V8.1 |

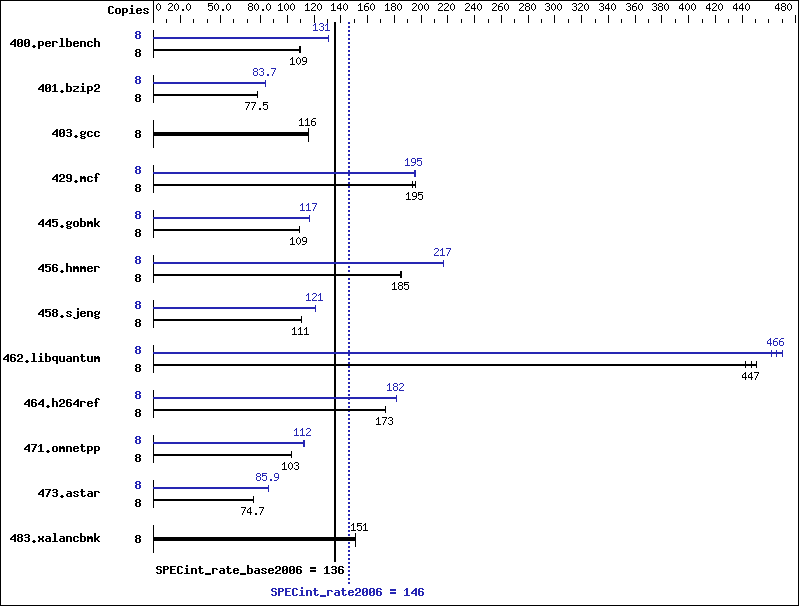

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 8 | 714 | 109 | 713 | 110 | 714 | 109 | 8 | 596 | 131 | 597 | 131 | 597 | 131 |
401.bzip2 | 8 | 995 | 77.6 | 996 | 77.5 | 996 | 77.5 | 8 | 922 | 83.7 | 923 | 83.7 | 923 | 83.7 |
403.gcc | 8 | 557 | 116 | 556 | 116 | 554 | 116 | 8 | 557 | 116 | 556 | 116 | 554 | 116 |
429.mcf | 8 | 377 | 194 | 373 | 196 | 373 | 195 | 8 | 373 | 195 | 373 | 195 | 374 | 195 |
445.gobmk | 8 | 767 | 109 | 769 | 109 | 768 | 109 | 8 | 719 | 117 | 718 | 117 | 718 | 117 |
456.hmmer | 8 | 403 | 185 | 402 | 186 | 405 | 184 | 8 | 345 | 217 | 345 | 217 | 345 | 217 |
458.sjeng | 8 | 876 | 111 | 875 | 111 | 876 | 110 | 8 | 801 | 121 | 800 | 121 | 800 | 121 |
462.libquantum | 8 | 371 | 447 | 375 | 443 | 368 | 451 | 8 | 356 | 466 | 359 | 462 | 352 | 470 |
464.h264ref | 8 | 1022 | 173 | 1022 | 173 | 1022 | 173 | 8 | 974 | 182 | 974 | 182 | 973 | 182 |
471.omnetpp | 8 | 484 | 103 | 485 | 103 | 484 | 103 | 8 | 445 | 112 | 445 | 112 | 444 | 113 |
473.astar | 8 | 754 | 74.5 | 750 | 74.8 | 751 | 74.7 | 8 | 655 | 85.7 | 653 | 86.0 | 654 | 85.9 |
483.xalancbmk | 8 | 366 | 151 | 366 | 151 | 366 | 151 | 8 | 366 | 151 | 366 | 151 | 366 | 151 |
The config file option 'submit' was used. numactl was used to bind copies to the cores
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
The system automatically configures the memory to run at 1067 MHz. BIOS configuration: Data Reuse Optimization = Disable
For information about Fujitsu please visit: http://www.fujitsu.com Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
icc -m32 | |
401.bzip2: | icc -m64 |
456.hmmer: | icc -m64 |
458.sjeng: | icc -m64 |
462.libquantum: | icc -m64 |
icpc -m32 | |
473.astar: | icpc -m64 |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
403.gcc: | basepeak = yes |
429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
462.libquantum: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch |
464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
483.xalancbmk: | basepeak = yes |
