| CPU2006 license: | 19 | Test date: | Sep-2010 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Aug-2010 |
| Tested by: | Fujitsu | Software Availability: | Dec-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon W3670 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.46 GHz |
| CPU MHz: | 3200 |
| FPU: | Integrated |
| CPU(s) enabled: | 6 cores, 1 chip, 6 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 12 GB (6x2 GB PC3-10600E, 2 rank, CL9, ECC, running at 1066 MHz) |
| Disk Subsystem: | 1 x SATA II, 400 GB, 7200 rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64), kernel 2.6.27.19-5-default |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Multi-User Run Level 3 |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

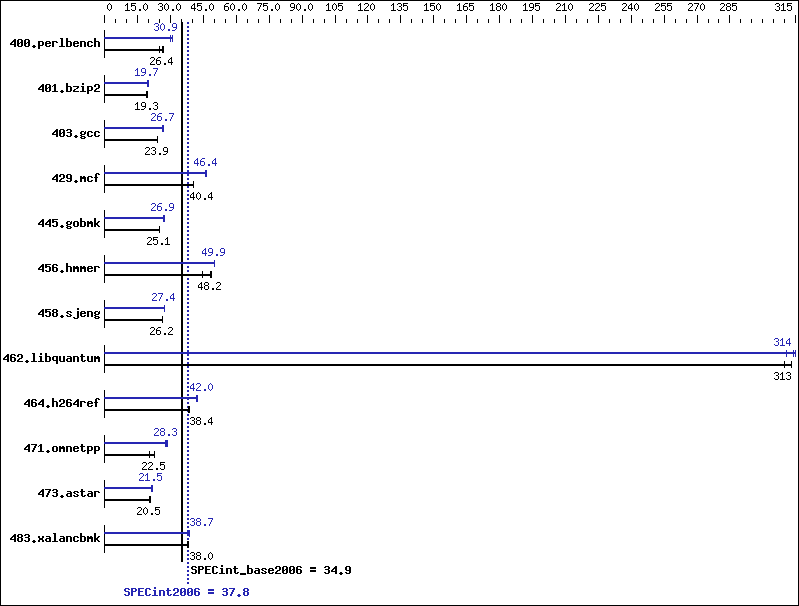

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 368 | 26.6 | 390 | 25.1 | 371 | 26.4 | 316 | 30.9 | 315 | 31.0 | 324 | 30.1 |
| 401.bzip2 | 507 | 19.0 | 501 | 19.3 | 499 | 19.3 | 493 | 19.6 | 490 | 19.7 | 485 | 19.9 |
| 403.gcc | 336 | 23.9 | 336 | 23.9 | 337 | 23.9 | 306 | 26.3 | 302 | 26.7 | 301 | 26.7 |
| 429.mcf | 226 | 40.4 | 226 | 40.4 | 226 | 40.3 | 198 | 46.1 | 196 | 46.5 | 197 | 46.4 |
| 445.gobmk | 418 | 25.1 | 418 | 25.1 | 419 | 25.0 | 386 | 27.1 | 391 | 26.8 | 389 | 26.9 |
| 456.hmmer | 194 | 48.2 | 209 | 44.7 | 191 | 48.8 | 187 | 49.9 | 187 | 49.9 | 187 | 49.9 |
| 458.sjeng | 463 | 26.1 | 462 | 26.2 | 462 | 26.2 | 441 | 27.4 | 441 | 27.4 | 442 | 27.4 |
| 462.libquantum | 66.8 | 310 | 66.2 | 313 | 66.2 | 313 | 66.0 | 314 | 65.8 | 315 | 66.6 | 311 |
| 464.h264ref | 582 | 38.0 | 576 | 38.4 | 577 | 38.4 | 526 | 42.1 | 531 | 41.7 | 527 | 42.0 |
| 471.omnetpp | 305 | 20.5 | 278 | 22.5 | 278 | 22.5 | 220 | 28.4 | 225 | 27.7 | 221 | 28.3 |
| 473.astar | 342 | 20.5 | 342 | 20.5 | 338 | 20.8 | 326 | 21.5 | 331 | 21.2 | 326 | 21.6 |
| 483.xalancbmk | 181 | 38.1 | 181 | 38.0 | 183 | 37.6 | 179 | 38.5 | 178 | 38.8 | 178 | 38.7 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter
Platform Notes
BIOS configuration: Data Reuse Optimization = Disabled Hyper-Threading Technology = Disabled
General Notes
For information about Fujitsu please visit: http://www.fujitsu.com Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
