CPU2006 license: | 19 | Test date: | Aug-2010 |
---|---|---|---|
Test sponsor: | Fujitsu | Hardware Availability: | Jul-2010 |
Tested by: | Fujitsu | Software Availability: | Jan-2010 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X5660 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.2 GHz |
CPU MHz: | 2800 |
FPU: | Integrated |
CPU(s) enabled: | 6 cores, 1 chip, 6 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 24 GB (6x4 GB PC3-10600R, 2 rank, CL9-9-9, ECC) |
Disk Subsystem: | 1 x SATA, 160 GB, 5.4 krpm |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-default |
Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
Auto Parallel: | No |
File System: | ext3 |
System State: | Multi-User Run Level 3 |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V8.1 |

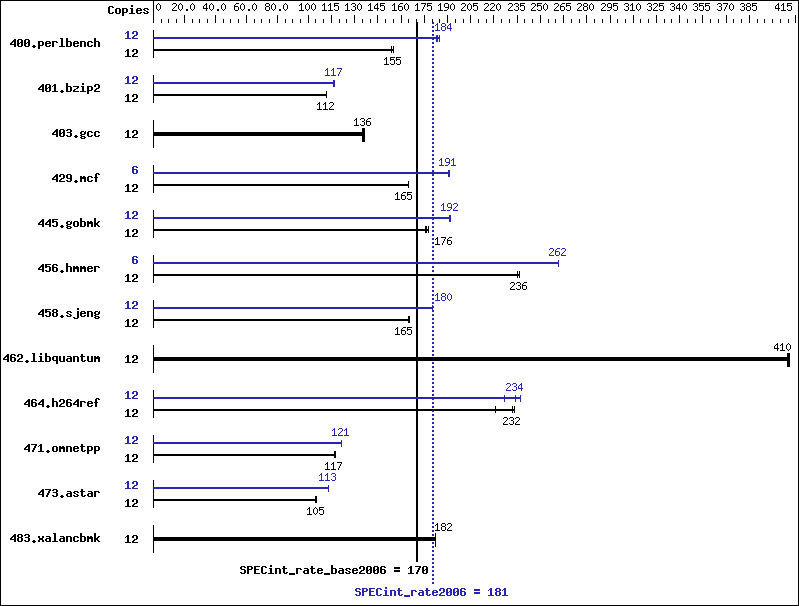

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 12 | 757 | 155 | 755 | 155 | 762 | 154 | 12 | 639 | 184 | 640 | 183 | 635 | 185 |
401.bzip2 | 12 | 1036 | 112 | 1039 | 111 | 1038 | 112 | 12 | 992 | 117 | 992 | 117 | 995 | 116 |
403.gcc | 12 | 712 | 136 | 714 | 135 | 707 | 137 | 12 | 712 | 136 | 714 | 135 | 707 | 137 |
429.mcf | 12 | 665 | 165 | 664 | 165 | 665 | 165 | 6 | 287 | 191 | 287 | 191 | 286 | 191 |
445.gobmk | 12 | 714 | 176 | 715 | 176 | 708 | 178 | 12 | 657 | 192 | 655 | 192 | 657 | 192 |
456.hmmer | 12 | 476 | 235 | 474 | 236 | 474 | 236 | 6 | 214 | 262 | 214 | 261 | 214 | 262 |
458.sjeng | 12 | 880 | 165 | 877 | 166 | 880 | 165 | 12 | 805 | 180 | 806 | 180 | 806 | 180 |
462.libquantum | 12 | 607 | 410 | 606 | 410 | 605 | 411 | 12 | 607 | 410 | 606 | 410 | 605 | 411 |
464.h264ref | 12 | 1144 | 232 | 1200 | 221 | 1139 | 233 | 12 | 1170 | 227 | 1121 | 237 | 1135 | 234 |
471.omnetpp | 12 | 639 | 117 | 640 | 117 | 640 | 117 | 12 | 618 | 121 | 619 | 121 | 619 | 121 |
473.astar | 12 | 804 | 105 | 802 | 105 | 802 | 105 | 12 | 747 | 113 | 747 | 113 | 747 | 113 |
483.xalancbmk | 12 | 454 | 183 | 454 | 182 | 455 | 182 | 12 | 454 | 183 | 454 | 182 | 455 | 182 |
The config file option 'submit' was used. numactl was used to bind copies to the cores
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
BIOS configuration: Data Reuse Optimization = Disable
Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502 For information about Fujitsu please visit: http://www.fujitsu.com
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
icc -m32 | |
401.bzip2: | icc -m64 |
456.hmmer: | icc -m64 |
458.sjeng: | icc -m64 |
icpc -m32 | |
473.astar: | icpc -m64 |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
403.gcc: | basepeak = yes |
429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
462.libquantum: | basepeak = yes |
464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
483.xalancbmk: | basepeak = yes |
