CPU2006 license: | 9019 | Test date: | Sep-2010 |
---|---|---|---|
Test sponsor: | Cisco Systems | Hardware Availability: | Apr-2010 |
Tested by: | Cisco Systems | Software Availability: | Jan-2010 |
Hardware | |
---|---|
CPU Name: | Intel Xeon L5640 |
CPU Characteristics: | Intel Turbo Boost Technology up to 2.80 GHz |
CPU MHz: | 2267 |
FPU: | Integrated |
CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 48 GB (12 x 4 GB 2Rx4 PC3-10600R-9, ECC) |
Disk Subsystem: | 146 GB SAS, 10K RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SuSe Linux Enterprise Server 11 (x86_64), Kernel 2.6.27-15-2-default, RC4 |
Compiler: | Intel C++ and Fortran Compiler 11.1 IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 l_cprof_p_11.1.064 |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

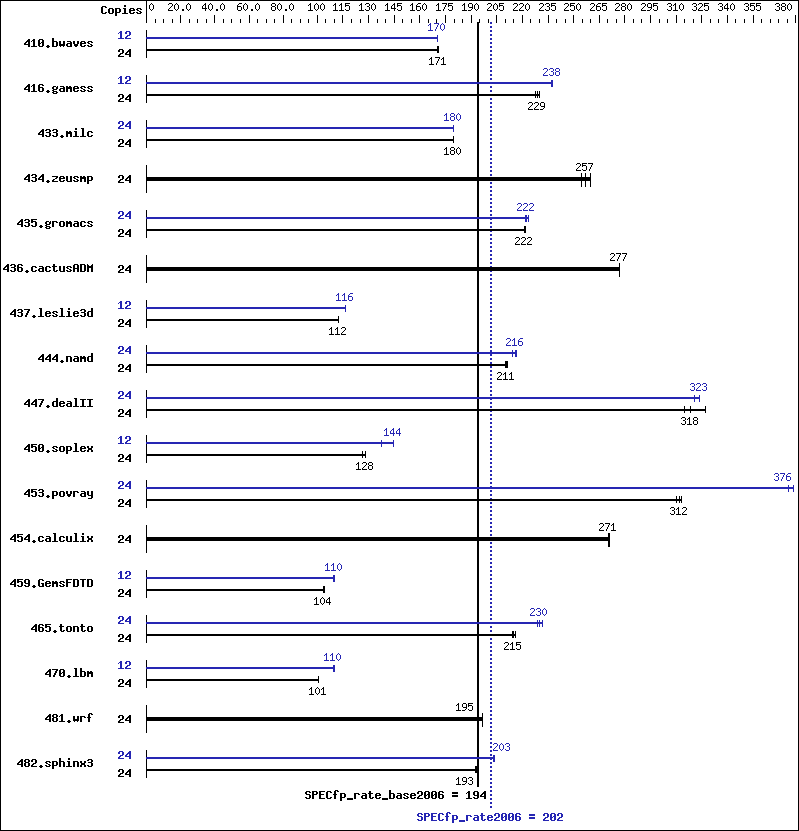

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 24 | 1912 | 171 | 1908 | 171 | 1907 | 171 | 12 | 958 | 170 | 959 | 170 | 958 | 170 |
416.gamess | 24 | 2045 | 230 | 2064 | 228 | 2052 | 229 | 12 | 988 | 238 | 991 | 237 | 988 | 238 |
433.milc | 24 | 1225 | 180 | 1225 | 180 | 1226 | 180 | 24 | 1225 | 180 | 1226 | 180 | 1226 | 180 |
434.zeusmp | 24 | 858 | 255 | 849 | 257 | 840 | 260 | 24 | 858 | 255 | 849 | 257 | 840 | 260 |
435.gromacs | 24 | 774 | 222 | 774 | 221 | 773 | 222 | 24 | 766 | 224 | 772 | 222 | 771 | 222 |
436.cactusADM | 24 | 1037 | 277 | 1037 | 277 | 1037 | 277 | 24 | 1037 | 277 | 1037 | 277 | 1037 | 277 |
437.leslie3d | 24 | 2010 | 112 | 2011 | 112 | 2007 | 112 | 12 | 970 | 116 | 970 | 116 | 969 | 116 |
444.namd | 24 | 915 | 210 | 912 | 211 | 914 | 211 | 24 | 899 | 214 | 888 | 217 | 890 | 216 |
447.dealII | 24 | 863 | 318 | 873 | 315 | 840 | 327 | 24 | 849 | 323 | 856 | 321 | 849 | 324 |
450.soplex | 24 | 1580 | 127 | 1560 | 128 | 1560 | 128 | 12 | 727 | 138 | 693 | 144 | 692 | 145 |
453.povray | 24 | 408 | 313 | 409 | 312 | 411 | 310 | 24 | 337 | 379 | 340 | 376 | 340 | 376 |
454.calculix | 24 | 732 | 271 | 732 | 270 | 730 | 271 | 24 | 732 | 271 | 732 | 270 | 730 | 271 |
459.GemsFDTD | 24 | 2445 | 104 | 2453 | 104 | 2453 | 104 | 12 | 1160 | 110 | 1160 | 110 | 1160 | 110 |
465.tonto | 24 | 1100 | 215 | 1102 | 214 | 1092 | 216 | 24 | 1031 | 229 | 1028 | 230 | 1019 | 232 |
470.lbm | 24 | 3270 | 101 | 3270 | 101 | 3273 | 101 | 12 | 1501 | 110 | 1504 | 110 | 1504 | 110 |
481.wrf | 24 | 1363 | 197 | 1378 | 195 | 1382 | 194 | 24 | 1363 | 197 | 1378 | 195 | 1382 | 194 |
482.sphinx3 | 24 | 2428 | 193 | 2419 | 193 | 2424 | 193 | 24 | 2304 | 203 | 2297 | 204 | 2301 | 203 |
The config file option 'submit' was used. numactl was used to bind copies to the cores
ulimit -s unlimited was used to set the stacksize to unlimited prior to run
Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
icc -m64 | |
482.sphinx3: | icc -m32 |
icpc -m64 | |
450.soplex: | icpc -m32 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -fno-alias -opt-prefetch |
470.lbm: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -ansi-alias -auto-ilp32 |
482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 |
444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias -scalar-rep- |
450.soplex: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-malloc-options=3 |
453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
410.bwaves: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | basepeak = yes |
437.leslie3d: | -xSSE4.2 -ipo -O3 -no-prec-div -static |
459.GemsFDTD: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 |
465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 |
435.gromacs: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 |
436.cactusADM: | basepeak = yes |
454.calculix: | basepeak = yes |
481.wrf: | basepeak = yes |
