SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu

SPARC Enterprise M4000

SPECfp®2006 = 16.7

CPU2006 license: 19 Test date: Sep-2010
Test sponsor: Fujitsu Hardware Availability: Dec-2010
Tested by: Fujitsu Software Availability: Sep-2010

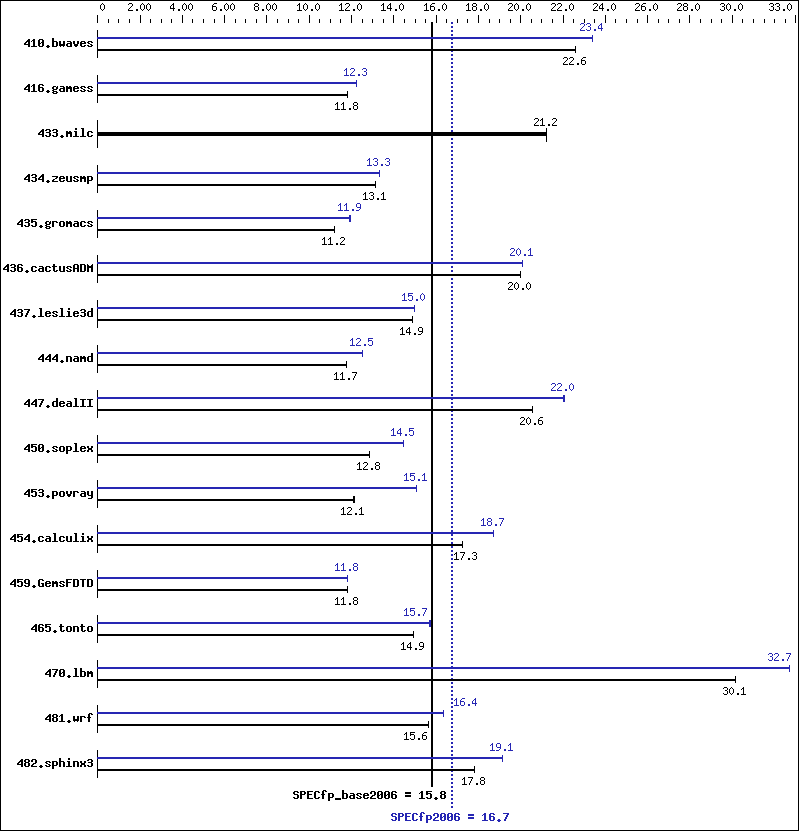

Benchmark results graph
Hardware
CPU Name: SPARC64 VII+
CPU Characteristics:
CPU MHz: 2660
FPU: Integrated
CPU(s) enabled: 16 cores, 4 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 to 2 CPUMs; each CPUM contains 2 CPU chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 11 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 128 GB (32 x 4 GB, 8-way interleaved)
Disk Subsystem: 1 x 300 GB 10,000 RPM SAS
Other Hardware: None
Software
Operating System: Oracle Solaris 10 9/10
Compiler: Oracle Solaris Studio 12.2
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 602 22.6 602 22.6 602 22.6 581 23.4 581 23.4 581 23.4
416.gamess 1658 11.8 1659 11.8 1659 11.8 1598 12.3 1598 12.2 1597 12.3
433.milc 433 21.2 433 21.2 433 21.2 433 21.2 433 21.2 433 21.2
434.zeusmp 694 13.1 694 13.1 694 13.1 684 13.3 684 13.3 683 13.3
435.gromacs 637 11.2 637 11.2 637 11.2 598 11.9 599 11.9 600 11.9
436.cactusADM 598 20.0 598 20.0 598 20.0 596 20.1 596 20.1 596 20.1
437.leslie3d 632 14.9 632 14.9 632 14.9 627 15.0 628 15.0 627 15.0
444.namd 683 11.7 683 11.7 683 11.7 640 12.5 640 12.5 640 12.5
447.dealII 557 20.5 556 20.6 556 20.6 519 22.0 519 22.0 519 22.0
450.soplex 650 12.8 650 12.8 650 12.8 577 14.5 577 14.4 577 14.5
453.povray 440 12.1 439 12.1 440 12.1 353 15.1 353 15.1 353 15.1
454.calculix 478 17.3 478 17.3 478 17.3 441 18.7 441 18.7 441 18.7
459.GemsFDTD 900 11.8 900 11.8 900 11.8 898 11.8 898 11.8 898 11.8
465.tonto 659 14.9 659 14.9 659 14.9 625 15.7 625 15.7 627 15.7
470.lbm 456 30.1 456 30.1 456 30.1 420 32.7 420 32.7 420 32.7
481.wrf 714 15.6 714 15.6 714 15.6 683 16.4 683 16.4 683 16.4
482.sphinx3 1094 17.8 1094 17.8 1094 17.8 1018 19.1 1018 19.1 1018 19.1

Compiler Invocation Notes

 Oracle Solaris Studio 12.2 is distributed with mandatory OS patches
  118683-05  119963-20  120753-08
 Oracle Solaris Studio 12.2 and patches are available at
  http://oracle.com/goto/solarisstudio

The Apache C++ Standard Library V4.2.1 was installed from
   http://stdcxx.apache.org/download.html using:
     alias gmake=specmake
     gmake BUILDTYPE=8d CONFIG=sunpro.config

Submit Notes

The config file option 'submit' was used.  Processes were assigned to
specific processors using 'pbind' commands.  The list of processors to use
was provided in the 'BIND' variable, to generate the pbind commands.
(For details, please see the config file.)

Operating System Notes


Shell Environments:

    ulimit -s 131072 was used to limit the space consumed
    by the stack.(making more space available for the heap)

 System Tunables (/etc/system parameters):

 tune_t_fsflushr=10
     Controls how many seconds elapse between runs of the
     page flush daemon, fsflush.
 autoup=600
     Causes pages older than the listed number of seconds to
     be written by fsflush.

 Other System Settings:

 The webconsole service was turned off using
     svcadm disable webconsole

Platform Notes


 Memory is 8-way interleaved by filling all slots with
 the same capacity DIMMs.

 This result is measured on a SPARC Enterprise M4000 server from
 Fujitsu.  The SPARC Enterprise M4000 server from Oracle and from
 Fujitsu are electrically equivalent.

General Notes

447.dealII (peak): "apache_stdcxx_4_2_1" src.alt was used.

447.dealII (base): "apache_stdcxx_4_2_1" src.alt was used.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Optimization Flags

C benchmarks:

 -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xlinkopt   -xvector   -xalias_level=std   -xprefetch_auto_type=indirect_array_access   -xprefetch=latx:2   -M /usr/lib/ld/map.bssalign   -ll2amm

C++ benchmarks:

 -xdepend   -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xlinkopt   -xvector   -xalias_level=compatible   -xprefetch_level=3   -library=no%Cstd   -I/mnt/spec//stdcxx-4.2.1/include   -I/mnt/spec//stdcxx-4.2.1/build/include   -M /usr/lib/ld/map.bssalign   -L/mnt/spec//stdcxx-4.2.1/build/lib   -R/mnt/spec//stdcxx-4.2.1/build/lib   -lstd8d

Fortran benchmarks:

 -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xlinkopt   -xvector   -xprefetch=latx:2   -M /usr/lib/ld/map.bssalign   -ll2amm

Benchmarks using both Fortran and C:

 -fast(cc)   -fast(f90)   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xlinkopt   -xvector   -xalias_level=std   -xprefetch_auto_type=indirect_array_access   -xprefetch=latx:2   -M /usr/lib/ld/map.bssalign   -ll2amm

Base Other Flags

C benchmarks:

 -xjobs=2   -V   -#

C++ benchmarks:

 -xjobs=2   -verbose=diags,version

Fortran benchmarks:

 -xjobs=2   -V   -v

Benchmarks using both Fortran and C:

 -xjobs=2   -V   -#   -v

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xarch=generic   -xvector   -xunroll=8   -xprefetch=latx:2
482.sphinx3:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xalias_level=std   -M /usr/lib/ld/map.bssalign   -xipo=2   -xprefetch_level=2   -xunroll=4   -xprefetch=latx:1.2   -ll2amm

C++ benchmarks:

444.namd:  -xdepend   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xalias_level=compatible   -library=stlport4   -xalias_level=any   -xchip=generic
447.dealII:  -xdepend   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xalias_level=compatible   -library=no%Cstd   -I/mnt/spec//stdcxx-4.2.1/include   -I/mnt/spec//stdcxx-4.2.1/build/include   -xipo=2   -xprefetch_auto_type=indirect_array_access   -xrestrict   -xchip=generic   -xunroll=4   -L/mnt/spec//stdcxx-4.2.1/build/lib   -R/mnt/spec//stdcxx-4.2.1/build/lib   -lstd8d   -ll2amm
450.soplex:  -xdepend   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xprefetch_level=2   -xprefetch_auto_type=indirect_array_access   -Qoption cg -Qlp-ol=1   -Qoption cg -Qlp-it=3   -Qoption cg -Qlp-imb=1   -Qoption iropt -Apf:pdl=3   -xalias_level=simple   -xrestrict   -library=stlport4
453.povray:  -xdepend   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xalias_level=compatible   -library=stlport4   -xO4   -xipo=2   -xprefetch=latx:4   -xvector   -xlinkopt=2   -xunroll=4   -ll2amm   -lfast

Fortran benchmarks:

410.bwaves:  -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xcache=generic   -xunroll=4   -xprefetch=latx:3
416.gamess:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xprefetch=no%auto   -xlinkopt
434.zeusmp:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xipo=2   -xprefetch_level=2   -xprefetch=latx:3   -xO4   -ll2amm
437.leslie3d:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xipo=2   -xprefetch_level=1   -xunroll=7   -ll2amm
459.GemsFDTD:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xprefetch=latx:2
465.tonto:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xprefetch=no%auto   -xO4   -xunroll=3   -lfast

Benchmarks using both Fortran and C:

435.gromacs:  -xprofile=tcov:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -fma=fused   -xpagesize=4M   -xipo=2   -xprefetch=latx:0.5   -xprefetch_level=3   -xprefetch_auto_type=indirect_array_access   -xinline=   -xchip=generic   -fsimple=0
436.cactusADM:  -fast(cc)   -fast(f90)   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xalias_level=std   -xprefetch_level=3   -xprefetch_auto_type=indirect_array_access
454.calculix:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -fma=fused   -xpagesize=4M   -xipo=2   -xvector   -xunroll=8   -xprefetch=latx:3   -xalias_level=std
481.wrf:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -fma=fused   -xpagesize=4M   -xalias_level=std   -xipo=2   -xcache=generic   -xunroll=5   -xprefetch=latx:2

Peak Other Flags

C benchmarks:

 -xjobs=2   -V   -#

C++ benchmarks:

 -xjobs=2   -verbose=diags,version

Fortran benchmarks:

 -xjobs=2   -V   -v

Benchmarks using both Fortran and C:

 -xjobs=2   -V   -#   -v

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.2-SPARC.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.2-SPARC.xml.
