| CPU2006 license: | 6 | Test date: | Nov-2010 |
|---|---|---|---|
| Test sponsor: | Oracle Corporation | Hardware Availability: | Dec-2010 |
| Tested by: | Oracle Corporation | Software Availability: | Apr-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5670 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.33 GHz |
| CPU MHz: | 2933 |
| FPU: | Integrated |
| CPU(s) enabled: | 24 cores, 4 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 or 2 chips per Sun Blade X6275 M2 node |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 96 GB (12 x 8 GB 2Rx4 PC3-10600R-9, ECC, per node) |
| Disk Subsystem: | Sun Storage 7410 System via NFS (See additional details below) |
| Other Hardware: | 10 GbE interface |
| Software | |
|---|---|
| Operating System: | Oracle Enterprise Linux Server release 5.5 kernel 2.6.18-194.el5 |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | No |
| File System: | NFSv4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

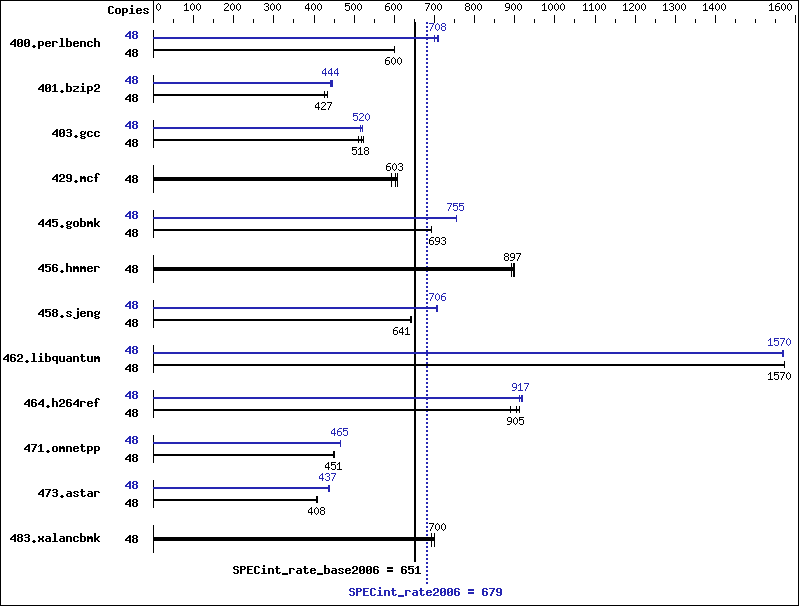

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 48 | 781 | 600 | 781 | 600 | 782 | 600 | 48 | 670 | 700 | 663 | 708 | 661 | 709 |
| 401.bzip2 | 48 | 1085 | 427 | 1071 | 432 | 1085 | 427 | 48 | 1050 | 441 | 1044 | 444 | 1042 | 445 |
| 403.gcc | 48 | 746 | 518 | 757 | 511 | 740 | 522 | 48 | 749 | 516 | 744 | 520 | 741 | 522 |
| 429.mcf | 48 | 739 | 592 | 726 | 603 | 721 | 607 | 48 | 739 | 592 | 726 | 603 | 721 | 607 |
| 445.gobmk | 48 | 726 | 694 | 726 | 693 | 727 | 693 | 48 | 667 | 755 | 666 | 756 | 667 | 755 |
| 456.hmmer | 48 | 502 | 893 | 499 | 897 | 498 | 898 | 48 | 502 | 893 | 499 | 897 | 498 | 898 |
| 458.sjeng | 48 | 905 | 642 | 907 | 641 | 908 | 640 | 48 | 824 | 705 | 822 | 707 | 823 | 706 |
| 462.libquantum | 48 | 632 | 1570 | 633 | 1570 | 632 | 1570 | 48 | 634 | 1570 | 634 | 1570 | 634 | 1570 |
| 464.h264ref | 48 | 1164 | 913 | 1196 | 888 | 1174 | 905 | 48 | 1156 | 919 | 1159 | 917 | 1164 | 913 |
| 471.omnetpp | 48 | 668 | 449 | 665 | 451 | 665 | 451 | 48 | 645 | 465 | 645 | 465 | 645 | 465 |
| 473.astar | 48 | 826 | 408 | 829 | 407 | 826 | 408 | 48 | 770 | 438 | 771 | 437 | 771 | 437 |
| 483.xalancbmk | 48 | 479 | 692 | 473 | 700 | 473 | 701 | 48 | 479 | 692 | 473 | 700 | 473 | 701 |
Submit Notes
The config file option 'submit' was used, along with submit.pl to distribute jobs to two nodes of the Sun Blade X6275 M2 server module. It also uses numactl to bind copies to the cores.
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Platform Notes
Load Default BIOS Settings and then change the following Data Reuse Optimization Disabled Hardware Prefetch Enabled Adjacent Cache Line Prefetch Enabled L1 Data Prefetch Enabled Storage Configuration for Disk Subsystem: Sun Storage 7410 has 2 x J4400 disk shelves. There are 22 x 750 GB 7200 RPM SATA Disks per J4400 disk shelf under RAID-1 configuration mounted over 10GBE network interface with these options "rw,noacl,hard,intr,rsize=65536,wsize=65536" in the /etc/fstab.
General Notes
Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L(path to library) -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 401.bzip2: | icc -m64 |
| 458.sjeng: | icc -m64 |
| 462.libquantum: | icc -m64 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -static |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | basepeak = yes |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L(path to library) -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L(path to library) -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
