| CPU2006 license: | 9001 | Test date: | Dec-2010 |
|---|---|---|---|
| Test sponsor: | Itautec | Hardware Availability: | Apr-2010 |
| Tested by: | Itautec | Software Availability: | Apr-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5680 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.60 GHz |
| CPU MHz: | 3333 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (12 x 4 GB 2Rx4 PC3-10600R-9, ECC) |
| Disk Subsystem: | 1 x 160 GB SATA-2, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-smp |
| Compiler: | Intel C++ Professional Compiler 11.1 for Linux Build 20100414 Package ID: l_cproc_p_11.1.072 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

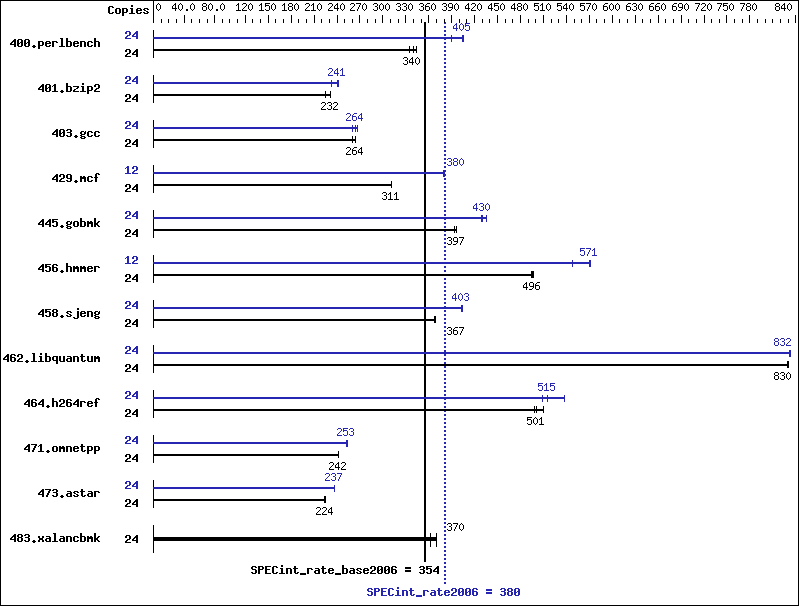

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 24 | 700 | 335 | 690 | 340 | 682 | 344 | 24 | 602 | 389 | 579 | 405 | 580 | 405 |
| 401.bzip2 | 24 | 1027 | 226 | 998 | 232 | 998 | 232 | 24 | 993 | 233 | 961 | 241 | 957 | 242 |
| 403.gcc | 24 | 730 | 265 | 732 | 264 | 742 | 261 | 24 | 723 | 267 | 733 | 264 | 741 | 261 |
| 429.mcf | 24 | 704 | 311 | 705 | 311 | 705 | 311 | 12 | 289 | 379 | 288 | 380 | 288 | 380 |
| 445.gobmk | 24 | 635 | 397 | 639 | 394 | 634 | 397 | 24 | 578 | 435 | 585 | 430 | 587 | 429 |
| 456.hmmer | 24 | 452 | 495 | 452 | 496 | 451 | 496 | 12 | 204 | 549 | 196 | 571 | 196 | 571 |
| 458.sjeng | 24 | 791 | 367 | 790 | 367 | 788 | 368 | 24 | 718 | 405 | 720 | 403 | 720 | 403 |
| 462.libquantum | 24 | 599 | 830 | 600 | 829 | 599 | 830 | 24 | 598 | 832 | 597 | 833 | 598 | 831 |
| 464.h264ref | 24 | 1066 | 498 | 1060 | 501 | 1041 | 510 | 24 | 987 | 538 | 1031 | 515 | 1044 | 509 |
| 471.omnetpp | 24 | 619 | 242 | 621 | 242 | 619 | 242 | 24 | 591 | 254 | 593 | 253 | 593 | 253 |
| 473.astar | 24 | 751 | 224 | 751 | 224 | 752 | 224 | 24 | 710 | 237 | 711 | 237 | 712 | 237 |
| 483.xalancbmk | 24 | 457 | 362 | 447 | 370 | 447 | 371 | 24 | 457 | 362 | 447 | 370 | 447 | 371 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run.
Platform Notes
BIOS Settings: Data Reuse = Disabled (Default = Enabled)
General Notes
This result was measured on the Servidor Itautec MX203. The Servidor Itautec MX203 and the Servidor Itautec MX223 are electronically equivalent.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/opt/sh/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
| 462.libquantum: | icc -m64 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -static |
| 429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/sh/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/opt/sh/SmartHeap_8/lib -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
